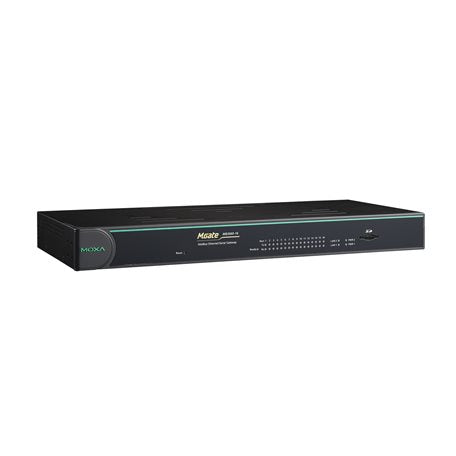

Moxa MGate MB3660I-8-2AC | MGate MB3660 8-Port Modbus Gateway, Dual AC, 2kV

Moxa MGate MB3660I-8-2AC | MGate MB3660 8-Port Modbus Gateway, Dual AC, 2kV

Authorised Moxa Partner

MGate MB3660I-8-2AC

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa MGate MB3660I-8-2AC is an 8-port Modbus gateway that converts Modbus RTU/ASCII serial devices to Modbus TCP, linking legacy serial equipment to Ethernet-based SCADA and automation systems. It provides 8 RS-232/422/485 serial ports, dual LAN ports, dual AC power inputs and 2 kV serial isolation, with a 0 to 60°C operating temperature range.

The dual AC power inputs support redundant power in demanding industrial installations, while the isolation protects connected serial equipment from electrical interference. It suits control rooms, factory automation, energy and building management deployments where multiple serial Modbus devices need to be consolidated onto a single gateway.

Features

- Converts Modbus RTU/ASCII serial devices to Modbus TCP
- Eight software-selectable serial ports for RS-232, RS-422 or RS-485
- Dual LAN ports for network connectivity
- Dual AC power inputs for power redundancy
- 2 kV isolation protects serial equipment from electrical interference

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports
- Dual LAN ports
- Dual AC power inputs
- 2 kV serial isolation
- 0 to 60°C operating temperature
- Modbus RTU/ASCII to Modbus TCP conversion

FAQs

Q: What does the Moxa MGate MB3660I-8-2AC do?
A: It is a Modbus gateway that converts Modbus RTU/ASCII serial devices to Modbus TCP so they can communicate over Ethernet networks.

Q: How many serial ports does it have?
A: It provides 8 serial ports supporting RS-232, RS-422 and RS-485.

Q: Does it support redundant power?
A: Yes. It has dual AC power inputs so the gateway can stay powered if one supply fails.

Q: What is the operating temperature range?
A: This model operates from 0 to 60°C.

Q: What does the 2 kV isolation provide?
A: The 2 kV serial isolation helps protect connected serial devices and the gateway from electrical interference and surges.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
