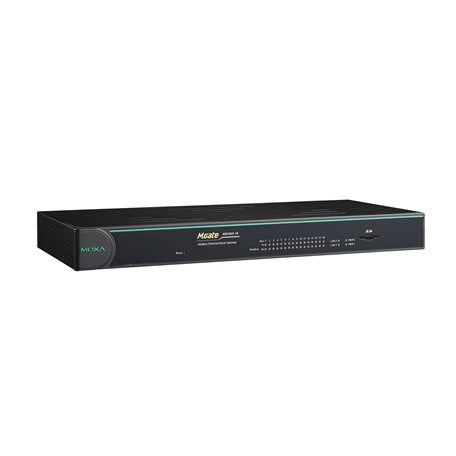

Moxa MGate MB3660-16-2DC | MGate MB3660 16-Port Modbus Gateway, Dual LAN, 2x DC

Authorised Moxa Partner

SKU:MGate MB3660-16-2DC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate MB3660-16-2DC is a 16-port Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII. Its 16 software-selectable RS-232/422/485 serial ports (DB9 male), dual 10/100 LAN ports and redundant dual DC power inputs suit industrial automation networks that need reliable serial-to-Ethernet connectivity. It operates from 0 to 60°C.

The gateway can be accessed by up to 256 Modbus TCP clients and can connect up to 128 Modbus TCP servers. Auto Device Routing, routing by TCP port or IP address, and Command Learning simplify configuration and improve performance, while a microSD slot supports configuration backup and event logging.

Features

- Converts between Modbus TCP and Modbus RTU/ASCII
- Accessed by up to 256 Modbus TCP clients
- Connects up to 128 Modbus TCP servers
- Redundant dual DC power inputs with wide input range
- microSD card for configuration backup, duplication and event logs
- Auto Device Routing for easy configuration
- Route by TCP port or IP address for flexible deployment
- Command Learning to improve system performance
- Embedded traffic monitoring and diagnostics for easier troubleshooting
- Status monitoring and fault protection for easy maintenance

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports (DB9 male, software-selectable)
- Dual LAN: 2 x 10/100BaseT(X) RJ45
- Baudrate: 50 bps to 921.6 kbps
- Modbus RTU/ASCII: Master and Slave modes, up to 256 commands per serial port
- Modbus TCP Client (Master): up to 256 connections
- Modbus TCP Server (Slave): up to 128 connections
- Console port: RS-232 via 8-pin RJ45
- Redundant dual power inputs: 20 to 60 VDC (terminal block)
- Power consumption: 494 mA @ 24 VDC
- Relay contact rating: 2 A @ 30 VDC resistive load
- Security: HTTPS (TLS 1.2), SNMPv3, AES-128/256, SHA-256, RADIUS authentication
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)

FAQs

Q: What does the MGate MB3660-16-2DC do?
A: It is a Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII, letting Ethernet-based SCADA and control systems communicate with serial Modbus devices.

Q: How many serial ports does it have and what standards do they support?
A: It has 16 DB9 male serial ports, each software-selectable between RS-232, RS-422 and RS-485.

Q: Does it support redundant power?
A: Yes. It has two DC power inputs accepting 20 to 60 VDC via a terminal block, providing redundant power.

Q: How many Modbus TCP connections can it handle?
A: It supports up to 256 Modbus TCP client connections and up to 128 Modbus TCP server connections.

Q: Does it support configuration backup?
A: Yes. A microSD card can be used for configuration backup and duplication as well as storing event logs.

Q: What is the operating temperature range?
A: This model operates from 0 to 60°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
