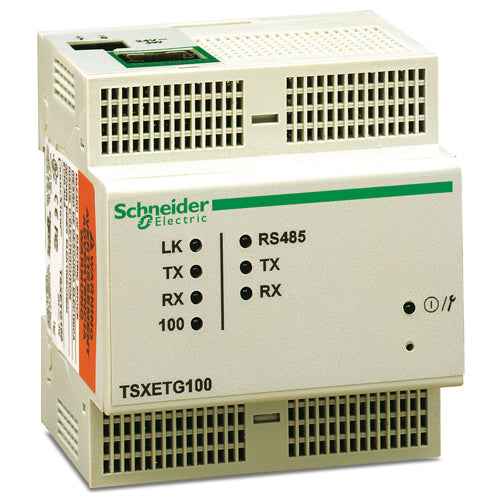

• APC TSXETG100 TSXETG100 gateway controller with white casing and green branding
1 1

APC

APC TSXETG100 | TSX Ethernet Modbus Gateway, RS485, 24 VDC, DIN Rail

APC TSXETG100 | TSX Ethernet Modbus Gateway, RS485, 24 VDC, DIN Rail

Authorised APC Partner

TSXETG100

Stock Status: Enquire

$986.46 inc. GST
$896.78 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The TSXETG100 is an Ethernet to Modbus serial gateway and router that connects Modbus RS485 devices, such as Altistart 48 soft starters, to a 10/100 Mbit/s Ethernet network. It suits industrial control panels and automation cabinets where serial Modbus equipment needs to be reached over Ethernet.

The unit mounts on a symmetrical DIN rail and runs from a 24 VDC supply, with a compact 72 mm wide by 81 mm high footprint. Dedicated LEDs for the serial link and the Ethernet port give clear local status indication, and Transparent Ready connectivity supports integration with Modbus-compatible industrial devices.

Features

- Ethernet Modbus gateway/router for Modbus-compatible industrial devices
- Transparent Ready connectivity
- Compatible with Altistart 48 series
- Compact DIN rail mounting for control cabinets
- Status LEDs for both serial and Ethernet links

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Ethernet port: 10BASE-T/100BASE-TX (twisted pair)
- Serial link: Modbus RS485
- Supply voltage: 24 VDC
- Mounting: symmetrical DIN rail
- Dimensions: 72 mm wide x 81 mm high
- Local signalling: 3 LEDs for serial link (RS485, RX, TX) and 4 LEDs for Ethernet (LK, RX, TX, 100)
- Marking: CE

FAQs

Q: What does the TSXETG100 connect?
A: It connects Modbus RS485 serial devices to a 10/100 Mbit/s Ethernet network, acting as an Ethernet Modbus gateway/router.

Q: Is it compatible with Altistart 48 soft starters?
A: Yes, it is suitable for connecting Altistart 48 series soft starters to an Ethernet network over Modbus RS485.

Q: What power supply does it need?
A: It operates from a 24 VDC supply.

Q: How is the TSXETG100 mounted?
A: It mounts on a symmetrical DIN rail and measures 72 mm wide by 81 mm high.

Q: What Ethernet speeds are supported?
A: The Ethernet port supports 10BASE-T and 100BASE-TX over twisted pair.

Q: What status indicators does it have?
A: It has 3 LEDs for the serial link (RS485, RX, TX) and 4 LEDs for Ethernet (LK, RX, TX, 100).
