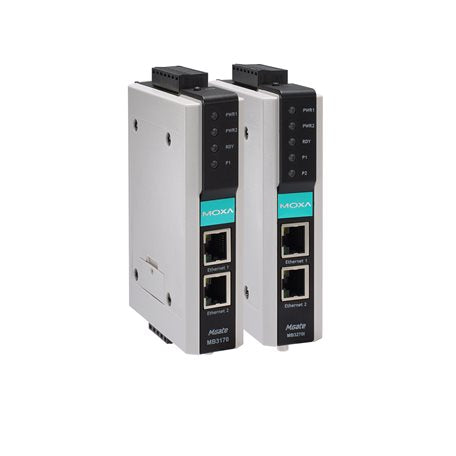

Moxa MGate MB3170-S-SC-T | MGate MB3170 Modbus TCP Gateway, 1x SM SC Fibre, -40 to 75°C

Authorised Moxa Partner

SKU:MGate MB3170-S-SC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate MB3170-S-SC-T is a 1-port Modbus TCP gateway that converts between Modbus TCP and Modbus serial (RTU/ASCII), connecting serial devices to Ethernet networks over a 100BaseFX single-mode fibre link with an SC connector. This variant has no serial isolation and is rated for an extended -40 to 75°C operating temperature, suited to harsh industrial environments and long-distance fibre runs.

The single serial port is software selectable between RS-232, RS-422 and RS-485, with a DB9 male connector for RS-232 and a terminal block for RS-422/485. Redundant dual DC power inputs (12 to 48 VDC), built-in Ethernet cascading and embedded Modbus traffic monitoring simplify installation and troubleshooting in SCADA and automation deployments.

Features

- Converts between Modbus TCP and Modbus serial RTU/ASCII
- Supports Modbus serial master to Modbus serial slave communications
- Built-in Ethernet cascading for easy wiring
- Emergency request tunnels ensure QoS control
- Embedded Modbus traffic monitoring for easy troubleshooting
- Redundant dual DC power inputs and 1 relay output
- Wide -40 to 75°C operating temperature for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 100BaseFX Single-Mode SC Ethernet port
- 1 x RS-232/422/485 serial port (software selectable)
- Serial connectors: DB9 male (RS-232) and terminal block (RS-422/485)
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 7, 8
- Parity: None, Even, Odd, Space, Mark
- Serial isolation: None
- Input voltage: 12 to 48 VDC, redundant dual DC inputs
- Input current: 555 mA @ 12 VDC
- Power connector: 7-pin terminal block
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)

FAQs

Q: What type of Ethernet port does the MGate MB3170-S-SC-T have?
A: It has one 100BaseFX single-mode fibre port with an SC connector, suited to long-distance fibre links.

Q: Which serial interfaces are supported?
A: The single serial port is software selectable between RS-232, RS-422 and RS-485. RS-232 uses a DB9 male connector, while RS-422/485 uses a terminal block.

Q: Does this model include serial isolation?
A: No. This variant has no serial isolation.

Q: What operating temperature range does it support?
A: The MB3170-S-SC-T is rated for -40 to 75°C, making it suitable for extreme industrial environments.

Q: How is the gateway powered?
A: It accepts 12 to 48 VDC through a 7-pin terminal block and supports redundant dual DC power inputs.

Q: What Modbus conversions does it support?
A: It converts between Modbus TCP and Modbus serial (RTU/ASCII) and also supports Modbus serial master to Modbus serial slave communications.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
