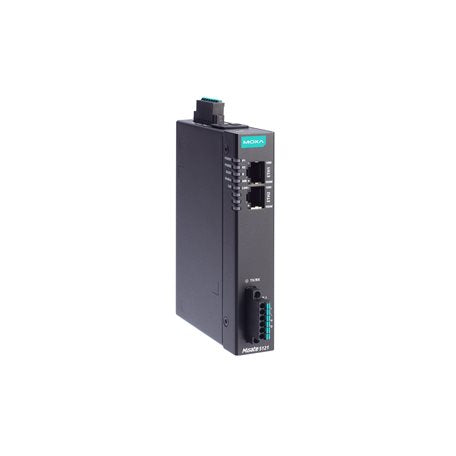

Moxa MGate 5121 | CAN to Modbus TCP Gateway, 1-Port, -10 to 60°C

Authorised Moxa Partner

SKU:MGate 5121

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate 5121 is a 1-port industrial CAN to Modbus TCP gateway that converts CANopen, J1939 and proprietary CAN (CAN 2.0A/B) data to Modbus TCP and SNMP. It acts as a CAN master to collect data from field devices and exchange it with a Modbus TCP host. This is the standard -10 to 60°C model, suited to controlled industrial cabinets and plant environments.

Two 10/100 Ethernet ports support cascading and dual subnet deployment, while the isolated CAN port, dual redundant 12 to 48 VDC power inputs and relay output suit demanding automation installations. Web-based configuration with HTTPS, EDS file import and microSD configuration backup simplify commissioning and replacement. The metal housing is DIN-rail mountable.

Features

- Simultaneous protocol conversion from CANopen, J1939 and proprietary CAN to Modbus TCP and SNMP
- Modbus TCP server (slave) and SNMP agent support
- Ethernet cascading and dual subnet for flexible deployment
- Embedded traffic monitoring and diagnostics, including LED indicators, protocol diagnostics, traffic monitor and tag view
- Web-based console configuration with HTTPS encryption
- EDS file import and auto-scan of CANopen devices
- Software-configurable CAN termination resistor
- microSD card for configuration backup and duplication
- Dual redundant DC power inputs and 1 relay output
- Developed according to IEC 62443-4-2 with Secure Boot
- Security protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x CAN port, spring-type Euroblock terminal, ISO 11898-2
- CAN baudrate: 10 kbps to 1 Mbps for CANopen and proprietary CAN; 250 kbps, 500 kbps or 1 Mbps for J1939
- Software-configurable 120 ohm CAN terminator
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), 1.5 kV magnetic isolation
- CAN port with 2 kV isolation protection
- CANopen master: up to 64 nodes, 256 receive PDOs, 256 transmit PDOs, SDO supported
- Modbus TCP server: functions 1, 2, 3, 4, 5, 6, 15, 16, 23; up to 16 client connections
- 2048 bytes input and 2048 bytes output data
- microSD slot for configuration backup, up to 32 GB
- Input voltage 12 to 48 VDC, dual redundant inputs, 455 mA max
- 1 relay output
- Operating temperature -10 to 60°C
- Metal housing, DIN-rail mountable

FAQs

Q: Which CAN protocols does the MGate 5121 support?
A: It converts CANopen, SAE J1939 and proprietary CAN (CAN 2.0A/B) to Modbus TCP and SNMP, and can run these CAN protocols at the same time.

Q: What is the operating temperature range of this model?
A: This is the standard model, rated for -10 to 60°C. A separate wide-temperature -T model is available for -40 to 75°C environments.

Q: How many CANopen nodes can it manage?
A: As a CANopen master it supports up to 64 nodes, with 256 receive PDOs and 256 transmit PDOs, and SDO communication.

Q: How many Modbus TCP clients can connect at once?
A: It operates as a Modbus TCP server and accepts up to 16 client connections, supporting function codes 1, 2, 3, 4, 5, 6, 15, 16 and 23.

Q: How is the gateway powered?
A: It accepts 12 to 48 VDC through dual redundant power inputs, so it can stay powered if one supply fails. It also provides 1 relay output.

Q: Can the configuration be backed up or cloned?
A: Yes. A microSD slot (up to 32 GB) stores the configuration for backup and duplication, which speeds up replacement and multi-unit rollouts.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
