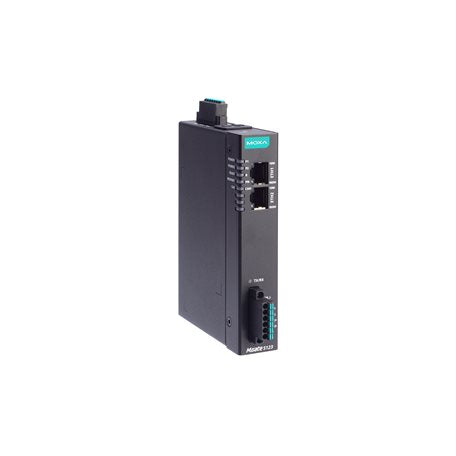

Moxa MGate 5123/KC | MGate 5123 CAN to PROFINET IO Gateway, KC, 2x RJ45

Authorised Moxa Partner

SKU:MGate 5123/KC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5123/KC is an industrial CANopen, J1939 and proprietary CAN (CAN 2.0A/B) to PROFINET IO protocol gateway, supplied as the KC certified (Korea) variant with a standard -10 to 60°C operating temperature range. It acts as a CAN master and presents CAN data to a PROFINET controller as a PROFINET IO device (class B), making it a practical way to bring CAN-based drives, sensors and engine controllers into a PROFINET automation network.

Two 10/100 RJ45 Ethernet ports support Ethernet cascading and dual subnet deployment, while a 2 kV isolated CAN port with a software configurable 120 ohm terminator protects the fieldbus side. Dual redundant 12 to 48 VDC power inputs and a relay output suit control cabinet installations, and the compact IP30 metal housing mounts on a DIN rail. Configuration is handled through a web console over HTTPS, with a microSD card slot for configuration backup and duplication.

Features

- Simultaneous protocol conversion from CANopen, J1939 and proprietary CAN (CAN 2.0A/B) to PROFINET and SNMP
- Operates as a PROFINET IO device with SNMP agent support
- Ethernet cascading and dual subnet for flexible deployment
- Embedded traffic monitoring and diagnostic information for easier troubleshooting
- Web-based console configuration over HTTPS
- microSD card slot for configuration backup and duplication
- Dual redundant DC power inputs and 1 relay output
- 2 kV isolation protection on the CAN port
- Compliance with IEC 62443-4-2 Security Level 2 requirements

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- PROFINET IO Device (class B) gateway
- 2 x 10/100BaseT(X) RJ45 Ethernet ports, Auto MDI/MDI-X
- 1.5 kV built-in magnetic isolation on Ethernet ports
- 1 x CAN port (ISO 11898-2), spring-type Euroblock terminal
- CAN baudrate (CANopen/proprietary CAN): 10, 20, 50, 125, 250, 500, 800 kbps, 1 Mbps
- CAN baudrate (J1939): 250 kbps, 500 kbps, 1 Mbps
- CAN port isolation: 2 kV, software configurable 120 ohm terminator
- CANopen master, up to 64 nodes, 256 receive PDOs and 256 transmit PDOs
- CANopen input and output data size: 2048 bytes each
- J1939 maximum commands: 256
- Input voltage: 12 to 48 VDC dual redundant, 455 mA max
- 1 relay output, 2 A at 30 VDC resistive load
- Operating temperature: -10 to 60°C (14 to 140°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Metal housing, IP30, 25 x 90 x 129.6 mm, 294 g

FAQs

Q: What does the /KC suffix mean on the MGate 5123/KC?
A: The /KC suffix denotes the KC certified (Korea) variant of the MGate 5123. It has the same CAN to PROFINET IO gateway function and a standard -10 to 60°C operating temperature range.

Q: Which CAN protocols does the MGate 5123/KC support?
A: It supports CANopen as a master, J1939 and proprietary CAN (CAN 2.0A/B), and converts them to PROFINET IO device communications and SNMP.

Q: What role does the gateway play on the PROFINET network?
A: It operates as a PROFINET IO device (class B), so a PROFINET controller can read and write the CAN data that the gateway collects as a CAN master.

Q: What power supply does it need?
A: It accepts 12 to 48 VDC through dual redundant spring-type Euroblock power inputs, drawing up to 455 mA. It also provides 1 relay output rated 2 A at 30 VDC resistive.

Q: How is the MGate 5123/KC configured?
A: Configuration is done through the built-in web console over HTTPS. A microSD card slot allows configuration backup and duplication across multiple units.

Q: Can it be installed in a control cabinet?
A: Yes. It uses a compact IP30 metal housing measuring 25 x 90 x 129.6 mm and is designed for DIN-rail mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
