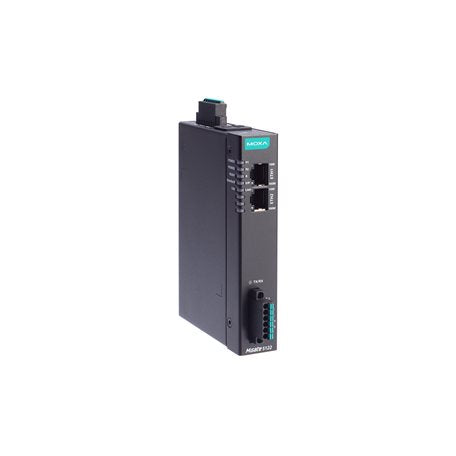

Moxa MGate 5122 | CAN to EtherNet/IP Gateway, -10 to 60C

Authorised Moxa Partner

SKU:MGate 5122

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5122 is a 1-port CAN to EtherNet/IP protocol gateway that connects CANopen, J1939 and proprietary CAN (CAN 2.0A/B) devices to an EtherNet/IP network. This standard model is rated for -10 to 60°C operation and acts as an EtherNet/IP adapter with an SNMP agent, making it a practical choice for integrating CAN-based machinery and vehicles into PLC-controlled plants.

Built in a metal IP30 DIN-rail housing, the gateway provides a 2 kV isolated CAN port, dual 10/100 Ethernet ports with cascading and dual subnet support, and redundant 12 to 48 VDC power inputs with a relay output. A microSD slot supports configuration backup and duplication, and the web console simplifies setup and diagnostics.

Features

- Simultaneous protocol conversion from CANopen, J1939 and proprietary CAN to EtherNet/IP and SNMP
- EtherNet/IP adapter and SNMP agent support
- Ethernet cascading and dual subnet for flexible deployment
- Embedded traffic monitoring and diagnostics for faster troubleshooting
- Web-based console (HTTPS) and Device Search Utility for easy configuration
- microSD card for configuration backup and duplication
- Dual redundant DC power inputs and a relay output for alarm signalling
- 2 kV isolated CAN port for protection in noisy industrial environments
- Developed according to IEC 62443-4-2 with Secure Boot, plus SNMPv3 and HTTPS (TLS 1.3) security

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x CAN port, ISO 11898-2, spring-type Euroblock terminal, 2 kV isolation
- 2 x 10/100BaseT(X) RJ45 Ethernet ports, auto MDI/MDI-X, 1.5 kV magnetic isolation
- CANopen master (up to 64 nodes, 256 Receive PDOs, 256 Transmit PDOs), J1939 and proprietary CAN (CAN 2.0A/B)
- CAN baudrate 10 kbps to 1 Mbps for CANopen and proprietary CAN; 250 kbps, 500 kbps or 1 Mbps for J1939
- Software-configurable 120 ohm CAN terminator
- EtherNet/IP adapter with up to 4 scanner connections, 496 bytes input and output per connection
- microSD slot, up to 32 GB (SD 2.0 compatible)
- Input voltage 12 to 48 VDC, redundant inputs, 455 mA max
- 1 relay output, 2 A at 30 VDC resistive load
- Metal housing, IP30, DIN-rail mount
- Dimensions 25 x 90 x 129.6 mm, weight 294 g
- Operating temperature -10 to 60°C, storage -40 to 85°C, humidity 5 to 95% non-condensing
- MTBF 1,408,984 hours (Telcordia SR-332)

FAQs

Q: Which CAN protocols does the MGate 5122 support?
A: It supports CANopen as a master, J1939, and proprietary CAN using CAN 2.0A or 2.0B frames, all converted to EtherNet/IP.

Q: Does the MGate 5122 act as an EtherNet/IP scanner or adapter?
A: It operates as an EtherNet/IP adapter and supports up to 4 scanner connections, so a PLC or other scanner can read and write the CAN data.

Q: How many CANopen nodes can it manage?
A: In CANopen master mode it supports up to 64 nodes, with up to 256 Receive PDOs and 256 Transmit PDOs and 2048 bytes of input and output data.

Q: What power input does it require?
A: It runs on 12 to 48 VDC through redundant spring-type Euroblock inputs, drawing a maximum of 455 mA, and includes one relay output.

Q: What is the operating temperature of this model?
A: This standard model operates from -10 to 60°C. A wide-temperature variant is available as the MGate 5122-T for -40 to 75°C.

Q: How is the gateway configured and backed up?
A: Configure it through the HTTPS web console or the Device Search Utility, and use the microSD slot (up to 32 GB) to back up and duplicate configurations across units.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
