Moxa MGate EIP3170I | EtherNet/IP-to-DF1 Gateway, 2 kV Isolation

Authorised Moxa Partner

SKU:MGate EIP3170I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

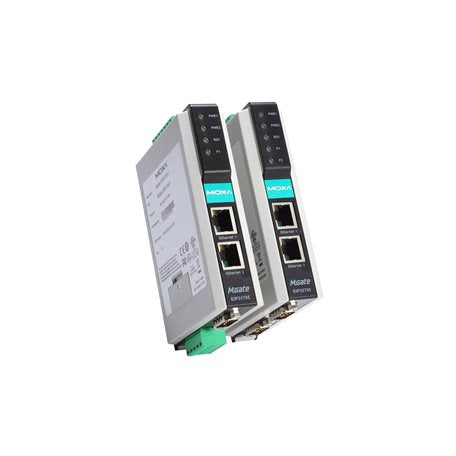

The Moxa MGate EIP3170I is a 1-port EtherNet/IP-to-DF1 protocol gateway that connects Allen-Bradley and Rockwell PLCs with legacy DF1 serial devices on an EtherNet/IP network. This model provides 2 kV serial isolation and a standard 0 to 60°C operating temperature range, making it well suited to control cabinets and indoor industrial installations.

The gateway supports PCCC objects for Rockwell Automation networks and handles up to 8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests. Dual 10/100 Ethernet ports with built-in cascading simplify wiring, while redundant 12 to 48 VDC power inputs, a serial redirector and a built-in traffic monitor support reliable deployment and troubleshooting.

Features

- PCCC objects supported for Rockwell Automation networks
- ProCOM support for control via COM port mapping
- 8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests
- Serial redirector keeps the original serial master and slave connection while linking devices to Ethernet
- EtherNet/IP and DF1 traffic monitor for easier troubleshooting
- Redundant dual DC power inputs
- Built-in Ethernet cascading for simple wiring
- Built-in optical isolation for serial signals
- DIP switches for termination and pull high/low resistor settings
- Windows utility for configuration and traffic monitoring

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x DF1 serial port: RS-232 on DB9 male, RS-422/485 on terminal block
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), auto MDI/MDI-X, built-in cascading
- 2 kV serial isolation
- 1.5 kV Ethernet magnetic isolation
- Protocol conversion: EtherNet/IP (PCCC) to DF1 (transparent, full duplex)
- Baudrate: 1200 bps to 921.6 kbps
- Data bits: 8; parity: None, Even, Odd; stop bits: 1, 2
- Flow control: RTS/CTS, DTR/DSR (RS-232 only)
- Max. client connections: 8
- Input voltage: 12 to 48 VDC, redundant dual power inputs
- Input current: 555 mA @ 12 VDC
- Relay contact rating: 1 A @ 30 VDC resistive load
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Housing: plastic top cover, metal bottom plate, IP30
- Dimensions (without ears): 29 x 89.2 x 118.5 mm
- Weight: 360 g
- Configuration: MGate Manager, Telnet console
- Certifications: UL 508, EN 60950-1, ATEX, Class I Division 2, IECEx, DNV-GL

FAQs

Q: What does the MGate EIP3170I do?
A: It converts between EtherNet/IP (PCCC) and DF1 serial, allowing Allen-Bradley and Rockwell PLCs on an Ethernet network to communicate with legacy DF1 serial devices.

Q: Which serial interfaces does it support?
A: It has one DF1 serial port. RS-232 is provided on a DB9 male connector and RS-422/485 on a terminal block.

Q: How does the EIP3170I differ from non-isolated models in the series?
A: The I suffix denotes 2 kV serial isolation, which protects the serial port and connected equipment from electrical surges and ground potential differences.

Q: What operating temperature range does this model support?
A: The standard-temperature MGate EIP3170I operates from 0 to 60°C. It is intended for indoor and cabinet installations rather than extended-temperature environments.

Q: How is the gateway powered?
A: It accepts 12 to 48 VDC and has redundant dual power inputs, so it can be connected to two DC sources for added reliability.

Q: How many simultaneous connections does it support?
A: It supports up to 8 simultaneous EtherNet/IP client/server pairs, with up to 16 queued requests.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
