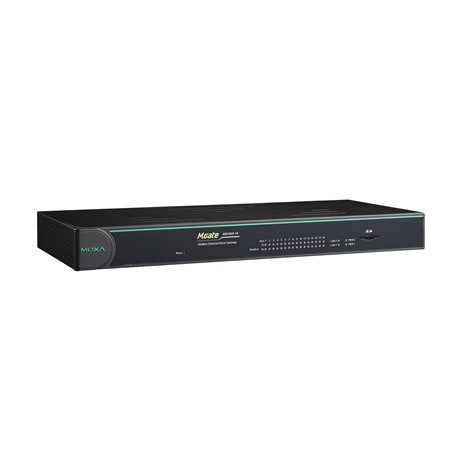

• Moxa MGate MB3660-8-2AC Modbus gateway with sleek ports panel
1 1

Moxa

Moxa MGate MB3660-8-2AC | MGate MB3660 8-Port Modbus Gateway, Dual AC, 0-60°C

Moxa MGate MB3660-8-2AC | MGate MB3660 8-Port Modbus Gateway, Dual AC, 0-60°C

Authorised Moxa Partner

MGate MB3660-8-2AC

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The MGate MB3660-8-2AC is an 8-port Modbus gateway that connects serial Modbus RTU and ASCII devices to Modbus TCP networks. Its 8 serial ports support RS-232, RS-422 and RS-485, and dual AC power inputs and dual LAN ports support a resilient industrial deployment. It operates across a 0 to 60°C temperature range.

The gateway suits factory automation, utilities and building management systems where legacy serial equipment must be integrated into Ethernet-based SCADA and PLC infrastructure. Dual LAN and dual AC power inputs help keep serial devices reachable if one network path or power feed is lost.

Features

- Converts Modbus RTU/ASCII serial devices to Modbus TCP
- Software-selectable RS-232, RS-422 and RS-485 on each serial port
- Dual LAN ports for network redundancy
- Dual AC power inputs for power redundancy
- Suited to industrial automation and SCADA integration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports
- Dual LAN ports
- Dual AC power inputs
- Operating temperature 0 to 60°C
- Modbus RTU/ASCII to Modbus TCP gateway

FAQs

Q: What does the MGate MB3660-8-2AC do?
A: It is a Modbus gateway that links serial Modbus RTU/ASCII devices to Modbus TCP/Ethernet networks, allowing legacy serial equipment to be integrated into modern control systems.

Q: How many serial ports does it have and what interfaces are supported?
A: It has 8 serial ports supporting RS-232, RS-422 and RS-485.

Q: Does it support redundant power?
A: Yes. This model has dual AC power inputs so it can be connected to two separate power sources.

Q: What is the operating temperature range?
A: This model is specified for 0 to 60°C operation.

Q: What is the difference between the MB3660-8-2AC and other MB3660 models?
A: The suffix indicates 8 serial ports and dual AC power inputs, and this model is specified for 0 to 60°C. Other MB3660 variants differ in port count, power input or temperature range.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
