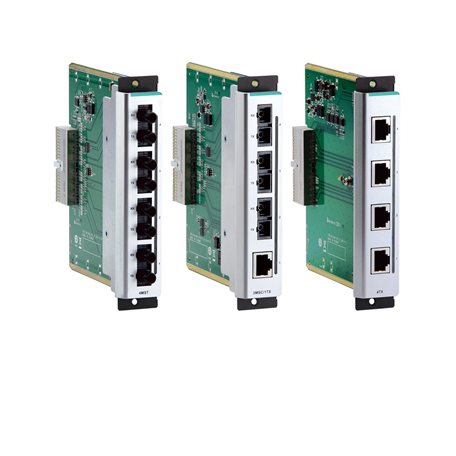

Moxa CM-600-4MST-T | CM-600 Fast Ethernet Module, 4x 100BaseFX Multi-Mode ST

Authorised Moxa Partner

SKU:CM-600-4MST-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The CM-600-4MST is a hot-swappable Fast Ethernet fibre interface module for Moxa EDS-600 Series modular managed switches. It provides four 100BaseFX multi-mode ports with ST connectors and operates across a wide -40 to 75°C temperature range, making it suited to industrial automation, transport and utility networks that need fibre uplinks in harsh environments.

The compact one-slot design adds four fibre ports to an EDS-600 chassis, with typical multi-mode reach of 4 km at 1300 nm over OM1 50/125 µm fibre. Hot-swappable media modules let you expand or change port configurations while the rest of the switch continues running, and the IP30-rated module draws a maximum of 2.44 W.

Features

- Hot-swappable media module for continuous switch operation
- Four 100BaseFX multi-mode ST fibre ports in a single slot
- Designed for Moxa EDS-600 Series modular managed switches
- Wide -40 to 75°C operating temperature for harsh industrial sites
- Compact modular design with low 2.44 W maximum power draw

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x 100BaseFX ports, multi-mode, ST connector
- Fibre cable type: OM1 50/125 µm, 800 MHz x km
- Typical distance: 4 km (multi-mode)
- Typical wavelength: 1300 nm
- TX range: 1260 to 1360 nm
- RX range: 1100 to 1600 nm
- Optical power TX: -10 to -20 dBm
- Optical power RX: -3 to -32 dBm
- Link budget: 12 dB
- Dispersion penalty: 3 dB
- Power consumption: 2.44 W (max.)
- IP rating: IP30
- Dimensions: 29.7 x 144.4 x 144.8 mm
- Weight: 240 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 740,661 hrs (Telcordia (Bellcore), GB)
- Package contents: 1 x CM-600 Series module, 1 x warranty card

FAQs

Q: Which switches is the CM-600-4MST compatible with?
A: It is designed for use with the Moxa EDS-600 Series modular managed Ethernet switches.

Q: What fibre type and connector does this module use?
A: It provides four 100BaseFX multi-mode ports with ST connectors, using OM1 50/125 µm fibre.

Q: What is the maximum fibre distance?
A: Typical multi-mode reach is 4 km at a 1300 nm wavelength, with a 12 dB link budget.

Q: Can the module be installed while the switch is running?
A: Yes, the CM-600 media modules are hot-swappable, so they can be added or replaced without shutting down the rest of the switch.

Q: What temperature range does it support?
A: The module operates from -40 to 75°C, suitable for extended-temperature industrial deployments.

Q: How much power does the module draw?
A: Maximum power consumption is 2.44 W.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
