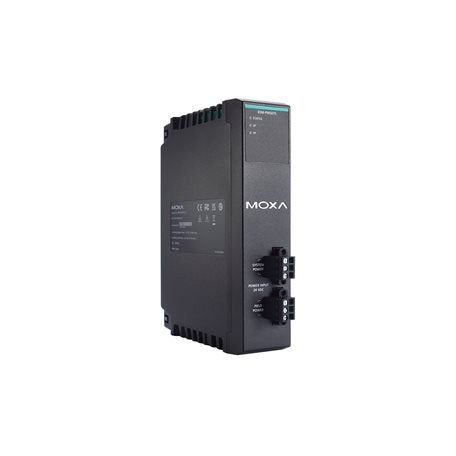

• Moxa ioPAC 6500 conformal coated 75W power module, black sleek design
1 1

Moxa

Moxa 65M-PW0075-CT-T | ioPAC 6500 Power Module, 24 VDC, 75 W, Conformal, -40-75C

Moxa 65M-PW0075-CT-T | ioPAC 6500 Power Module, 24 VDC, 75 W, Conformal, -40-75C

Authorised Moxa Partner

65M-PW0075-CT-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa 65M-PW0075-CT-T is a conformal-coated 24 VDC, 75 W power module for the modular ioPAC 6500 Linux-based RTU platform. It delivers a 12 VDC output at up to 6.25 A and is rated for operation from -40 to 75°C, making it well suited to harsh industrial and remote site deployments.

The module connects through a screw-fastened Euroblock terminal and includes over-voltage protection and an internal 10 A fuse. It mounts on a DIN rail or in a rack with the optional rack kit, and forms part of the fully modular ioPAC 6500 Series design.

Features

- Fully modular design for the ioPAC 6500 Series RTU
- Conformal-coated for harsh environments
- Wide -40 to 75°C operating temperature range
- DIN-rail or rack mounting (rack kit optional)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Input voltage: 24 VDC nominal (21.6 to 26.4 VDC)
- Output: 12 VDC, 6.25 A max, 75 W max
- Input current: 4 A max; inrush current 20 A max
- Internal fuse rating: 10 A
- 1 power input via screw-fastened Euroblock terminal
- Output hold-up time: 10 ms min; startup delay 100 ms max
- Over-voltage protection: 15.6 VDC max
- Conformal coating: Yes
- Operating temperature: -40 to 75°C (proper airflow required above 65°C)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: up to 2000 m
- MTBF: 954,606 hrs (Telcordia SR-332)

FAQs

Q: What platform is the 65M-PW0075-CT-T designed for?
A: It is a power module for Moxa's modular ioPAC 6500 Series Linux-based RTU platform.

Q: What input voltage does this power module require?
A: It requires a 24 VDC nominal input, with an accepted range of 21.6 to 26.4 VDC.

Q: How much power does the module provide?
A: It outputs 12 VDC at up to 6.25 A, for a maximum of 75 W.

Q: What is the operating temperature range?
A: The module operates from -40 to 75°C. Proper airflow is required above 65°C.

Q: Is this module conformal coated?
A: Yes. The conformal coating helps protect the circuitry in harsh environments.

Q: How is the module mounted?
A: It can be mounted on a DIN rail or in a rack. The rack kit is optional.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
