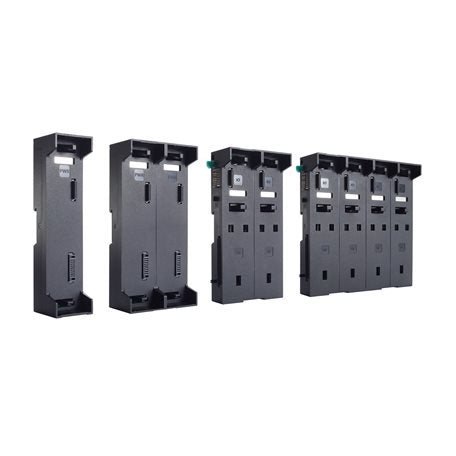

Moxa 65M-BMPW02-CT-T | ioPAC 6500 2-Slot Power Backplane, Conformal Coated

Authorised Moxa Partner

SKU:65M-BMPW02-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 65M-BMPW02-CT-T is a 2-slot power backplane module for the modular ioPAC 6500 Linux-based RTU and IIN controller platform. It accepts up to two hot-swappable power modules, with a conformal coating (CT) and wide-temperature (-T) rating for operation from -40 to 75°C in demanding industrial environments.

The tool-free, hot-swap design simplifies installation and maintenance, and the 2 x 2 pin grid prevents erroneous installation. It slots into the ioPAC 6500 modular system alongside communication, CPU, expansion and IO backplane modules, giving flexible, scalable control deployments with 24 VDC field power input.

Features

- Tool-free hardware installation and hot-swap design
- Fully modular design for flexible deployment
- 2 x 2 pin grid design to prevent erroneous installation
- Assembly order: power, communication, CPU, expansion, then IO backplane modules
- Conformal coating for protection in harsh environments
- Part of the ioPAC 6500 platform with Arm Cortex-A53 quad-core CPU and built-in Layer-2 managed switch

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 slots for power modules
- Dimensions: 86 x 177 x 45.5 mm (3.39 x 6.97 x 1.79 in)
- Weight: 320 g (0.71 lb)
- Operating temperature: -40 to 75°C (proper airflow required above 65°C)
- Storage temperature: -40 to 85°C
- Conformal coating (CT) and wide-temperature (-T) variant
- Field power input: 24 VDC
- Altitude: 2000 m

FAQs

Q: How many power modules does the 65M-BMPW02-CT-T hold?
A: It provides 2 slots for ioPAC 6500 power modules.

Q: What temperature range is this backplane rated for?
A: It is rated for operation from -40 to 75°C, with proper airflow required above 65°C. Storage range is -40 to 85°C.

Q: What does the CT in the part number mean?
A: CT indicates conformal coating, which helps protect the circuitry in harsh industrial environments. The -T suffix denotes the wide-temperature variant.

Q: Is this module part of the ioPAC 6500 platform?
A: Yes. It is a backplane module for the ioPAC 6500 Series (65M) modular controller platform.

Q: Can power modules be replaced without tools?
A: Yes. The ioPAC 6500 design supports tool-free installation and hot-swap, and a 2 x 2 pin grid prevents erroneous installation.

Q: What is the correct module assembly order?
A: Modules are assembled in the order power, communication, CPU, expansion, then IO backplane modules.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
