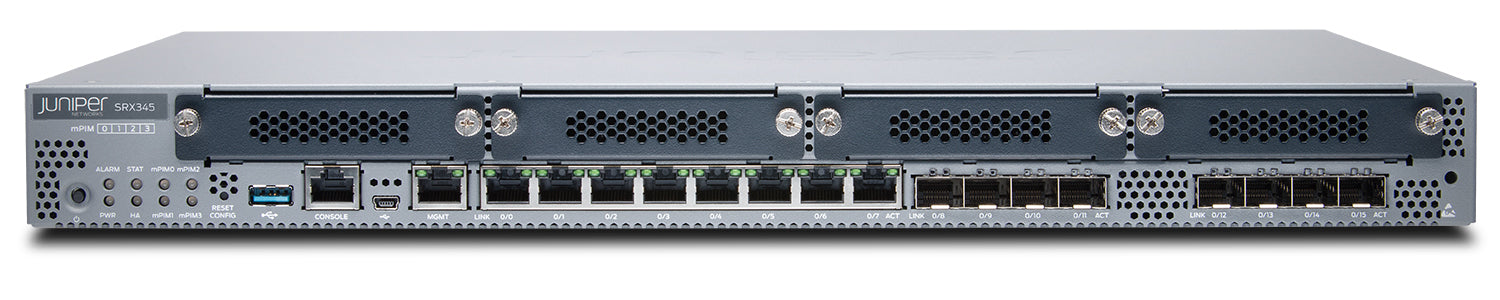

Juniper SRX345-SYS-JB-2ACT | SRX345 Services Gateway Firewall, 16GE, 4x MPIM, Dual AC, TAA

Authorised Juniper Partner

SKU:SRX345-SYS-JB-2ACT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The SRX345 services gateway firewall is a 1U branch-office platform that combines next-generation firewall security, routing, switching and WAN connectivity on Junos OS. This TAA-compliant dual AC power model provides 16 built-in GbE ports (8 x RJ-45 and 8 x SFP), four Mini-PIM slots, 4 GB DRAM and 8 GB flash, delivering up to 5 Gbps of firewall throughput.

Four Mini-PIM slots allow WAN expansion with T1/E1, VDSL2, serial, 4G/LTE or 802.11ac Wave 2 Wi-Fi modules, while MACsec on all built-in ports secures Layer 2 links. Dual fixed AC power supplies, application visibility and control, and IPS support make it well suited to resilient branch and distributed-enterprise deployments.

Features

- Next-generation firewall and secure SD-WAN capabilities on Junos OS
- Integrated routing, switching, security and WAN interfaces in one branch device
- MACsec support on all built-in RJ-45 and SFP ports
- Modular WAN expansion through Mini-PIMs (T1/E1, VDSL2, serial, 4G/LTE, 802.11ac Wave 2 Wi-Fi)
- Redundant dual AC power supplies
- Application visibility and control and IPS support
- TAA-compliant model

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x GbE ports (8 x RJ-45 and 8 x SFP), MACsec supported
- 4 x Mini-PIM (MPIM) slots
- 4 GB DRAM and 8 GB flash storage
- 2 x fixed AC power supplies, 122 W average power consumption
- Firewall throughput: 5 Gbps (1518B), 1.5 Gbps (IMIX)
- IPsec VPN throughput: 0.977 Gbps (1400B), 2048 IPsec VPN tunnels
- NGFW performance: 0.43 Gbps, recommended IPS: 0.6 Gbps
- Application visibility and control: 1.7 Gbps
- Up to 375K concurrent sessions, 4000 security policies, 64 security zones
- Console: 1 x RJ-45 and 1 x Mini USB Type B, 1 x RJ-45 management port, 1 x USB 3.0 Type A
- 1U fixed chassis, 4 fixed fan modules with front-to-back airflow
- Dimensions: 4.37 cm H x 44.09 cm W x 47.5 cm D, weight 6.5 kg
- Runs Junos OS, first supported release 15.1X49-D110

FAQs

Q: What does the SRX345-SYS-JB-2ACT include?
A: It is the SRX345 services gateway with 16 built-in GbE ports (8 x RJ-45 and 8 x SFP), four Mini-PIM slots, 4 GB DRAM, 8 GB flash and dual fixed AC power supplies. The -2ACT variant is the TAA-compliant version.

Q: Which WAN modules can be installed in the Mini-PIM slots?
A: The four Mini-PIM slots support expansion modules including T1/E1, VDSL2, serial, 4G/LTE and 802.11ac Wave 2 Wi-Fi.

Q: What throughput does the SRX345 deliver?
A: Firewall throughput is 5 Gbps (1518B packets) and 1.5 Gbps (IMIX). IPsec VPN throughput is 0.977 Gbps (1400B) with support for 2048 tunnels, and NGFW performance is 0.43 Gbps.

Q: Does this model have redundant power?
A: Yes. It has two fixed AC power supplies, providing power redundancy in a 1U chassis.

Q: Does the SRX345 support MACsec?
A: Yes. MACsec is supported on all 16 built-in ports, both the RJ-45 and SFP interfaces.

Q: What operating system does it run?
A: It runs Junos OS. The first supported release is 15.1X49-D110.
