Juniper SRX345-DUAL-AC | SRX345 Firewall, 16-Port GE, 8x SFP, Dual AC, Hardware Only

Name: Juniper SRX345-DUAL-AC | SRX345 Firewall, 16-Port GE, 8x SFP, Dual AC, Hardware Only
Brand: Juniper
SKU: SRX345-DUAL-AC
Price: 6502.76 AUD
Availability: BackOrder

Authorised Juniper Partner

SKU:SRX345-DUAL-AC

Stock Status: Enquire

$6,502.76 inc. GST

$5,911.60 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

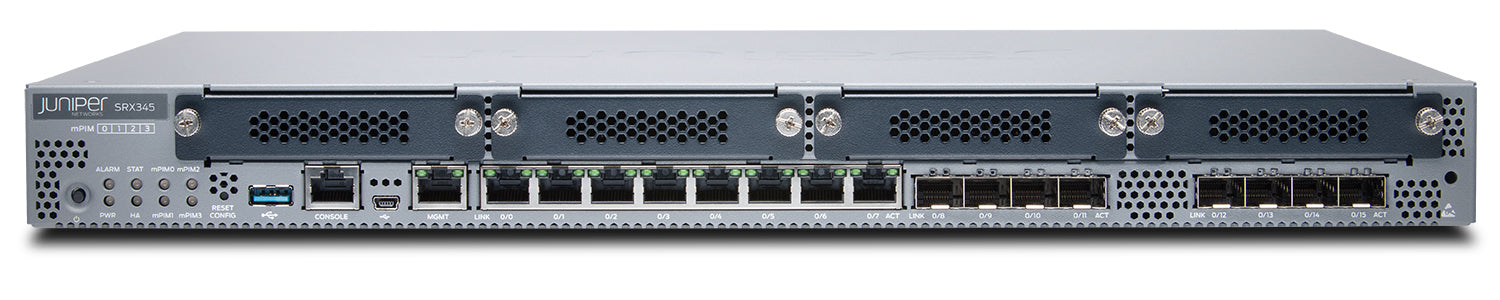

The Juniper SRX345-DUAL-AC is a 1U branch firewall and secure SD-WAN router with 16 x 1GbE ports (8 x RJ-45 and 8 x SFP), up to 5 Gbps firewall throughput and dual redundant AC power supplies. It consolidates security, routing, switching and WAN connectivity in one chassis, making it well suited to midsize to large distributed enterprise branch offices. This SKU is the hardware-only chassis and does not include a JSB or JSE software licence.

Four Mini-PIM slots allow WAN expansion with Ethernet, T1/E1, ADSL2/2+, VDSL or 3G/4G LTE modules, and an optional 802.11ac Wave 2 Wi-Fi module is available. The hot-swappable dual AC supplies keep the unit running if one fails. An SRX345 JSB or JSE licence is required to complete the system: JSB covers basic firewall, NAT, IPsec, routing, MPLS and switching, while JSE adds AppID, application firewall and IPS.

Features

- Consolidates security, routing, switching and WAN connectivity in a 1U form factor
- Suited to midsize to large distributed enterprise branch offices
- Redundant dual AC power supplies, so if one fails the other takes the full load
- WAN options via Mini-PIM: Ethernet, T1/E1, ADSL2/2+, VDSL, 3G/4G LTE
- Optional 802.11ac Wave 2 Wi-Fi module
- Hardware only: requires an SRX345 JSB or JSE licence to complete the system

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack-mount
- Onboard ports: 16 x 1GbE (8 x RJ-45, 8 x SFP)
- WAN expansion: 4 x Mini-PIM slots
- Management port: 1 x 1GbE out-of-band
- Console: RJ-45 and mini-USB
- USB: 1 x USB 3.0 Type A
- Memory: 4 GB DRAM, 8 GB flash (eUSB)
- Firewall throughput: up to 5 Gbps (1,518-byte packets)
- IPsec VPN throughput: up to 977 Mbps
- Concurrent sessions: up to 375,000
- Connections per second: 15,000
- Power supply: dual redundant, hot-swappable AC
- AC input: 100 to 240 VAC, 50 to 60 Hz
- Average power consumption: 122 W
- Dimensions (W x H x D): 440.9 x 43.6 x 370.1 mm
- Weight: 5 kg

FAQs

Q: Does the SRX345-DUAL-AC include a software licence?
A: No. This SKU is the hardware-only chassis. An SRX345 JSB or JSE licence is required to complete the system.

Q: What is the difference between JSB and JSE for the SRX345?
A: JSB covers basic firewall, NAT, IPsec, routing, MPLS and switching. JSE adds AppID, application firewall and IPS.

Q: How many ports does the SRX345 have?
A: It has 16 x 1GbE onboard ports: 8 x RJ-45 and 8 x SFP, plus a dedicated 1GbE out-of-band management port.

Q: Can I add WAN interfaces to the SRX345?
A: Yes. The four Mini-PIM slots support Ethernet, T1/E1, ADSL2/2+, VDSL and 3G/4G LTE modules.

Q: What does the dual AC power supply provide?
A: The two hot-swappable AC supplies are redundant. If one fails, the other carries the full load.

Q: What throughput does the SRX345 deliver?
A: Up to 5 Gbps firewall throughput and up to 977 Mbps IPsec VPN throughput.
