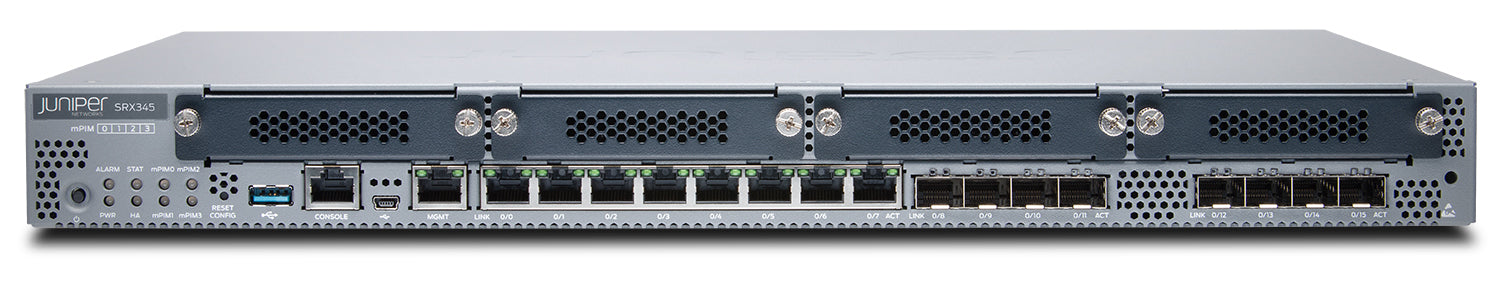

Juniper SRX345-DUAL-AC-T | SRX345 Firewall, 16x GE, Dual AC Power, TAA, Hardware Only

Authorised Juniper Partner

SKU:SRX345-DUAL-AC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The SRX345 is a 1U secure SD-WAN and next-generation firewall services gateway for midsize to large distributed enterprise branch offices. This TAA-compliant, hardware-only model includes dual internal AC power supplies, with 16 x 1GbE onboard ports (8 x RJ-45 and 8 x SFP), up to 5 Gbps stateful firewall throughput and up to 800 Mbps IPsec VPN throughput.

It consolidates security, routing, switching and WAN connectivity in a single chassis, with four Mini-PIM slots for WAN expansion, MACsec-capable ports and stateful high availability through chassis clustering. This SKU is the hardware-only chassis and requires an SRX345-JSB or SRX345-JSE software bundle to complete the system.

Features

- Next-generation secure SD-WAN and security in a 1U branch gateway
- Combines routing, switching, security and WAN connectivity in one device
- Next-generation firewall and UTM capabilities, including IPS, antivirus, URL filtering and Advanced Threat Prevention via subscription licences
- Juniper Secure Connect remote access and SSL VPN, plus site-to-site, AutoVPN and ADVPN
- MACsec-capable ports and stateful high availability with chassis clustering
- Redundant internal AC power supplies
- Junos OS automation, Zero-Touch Provisioning and Junos Space / Security Director management

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x 1GbE onboard ports: 8 x RJ-45 and 8 x SFP
- 16 x MACsec-capable 1GbE ports
- 1 x 1GbE out-of-band management port
- 4 x Mini-PIM (WAN) slots
- 1 x console port (RJ-45 and miniUSB), 1 x USB 3.0 Type A port
- 4 GB RAM, 8 GB storage, 1 x SSD slot
- Stateful firewall throughput: 5,000 Mbps (1,518 B), 1,700 Mbps (IMIX)
- IPsec VPN throughput: 800 Mbps (1,400 B), 300 Mbps (IMIX)
- Recommended IPS throughput: 600 Mbps
- Application visibility and control: 1,700 Mbps
- Dual redundant internal AC power supplies
- Average power consumption: 122 W
- 1U rack-mount form factor, 44.09 x 4.36 x 47.5 cm (W x H x D)
- Weight: 5 kg (device and PSU)
- Front-to-back airflow
- Operating temperature: 0 to 40 C
- TAA compliant, hardware only

FAQs

Q: Is the SRX345-DUAL-AC-T a complete system?
A: No. This SKU is the hardware-only chassis and requires an SRX345-JSB or SRX345-JSE software bundle to complete the system.

Q: What power supply does this model use?
A: It has dual redundant internal AC power supplies, so power continues if one supply fails.

Q: How many ports does the SRX345 have?
A: 16 x 1GbE onboard ports, made up of 8 x RJ-45 and 8 x SFP. There is also a dedicated 1GbE out-of-band management port, and none of the ports provide PoE.

Q: Can I add WAN interfaces to the SRX345?
A: Yes. The chassis has four Mini-PIM slots for WAN expansion.

Q: What firewall and VPN performance can I expect?
A: Stateful firewall throughput is up to 5 Gbps with 1,518 byte packets, and IPsec VPN throughput is up to 800 Mbps with 1,400 byte packets.

Q: Does the SRX345 support high availability?
A: Yes. It supports stateful high availability through chassis clustering.
