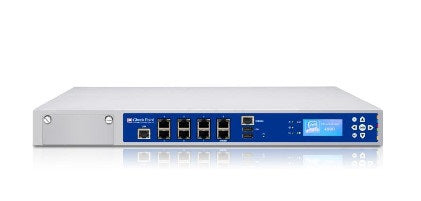

Check Point CPAP-SG4800-NGFW | 4800 NGFW Firewall, 5.8 Gbps, IPS, 4GB, AC PSU, 8x 1GbE

Authorised Check Point Partner

SKU:CPAP-SG4800-NGFW

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Check Point 4800 NGFW is a 1U enterprise security gateway built for branch and mid-sized network perimeters, delivering 5.8 Gbps production firewall throughput and 1.1 Gbps production IPS throughput. This NGFW bundle includes the FW, VPN, ADNC, IA, MOB-5, IPS and APCL blades, with eight onboard 10/100/1000Base-T RJ45 ports, 4 GB memory and a single AC power supply.

Built on the Check Point 4000 Series with a Software Blades architecture, the appliance includes one network card expansion slot for additional copper, SFP or SFP+ connectivity, a 250 GB HDD, a Lights-Out-Management card and local management for up to 2 gateways. Active/Active and Active/Passive high availability, IPv4 and IPv6 support and up to 38,000 IPsec VPN tunnels make it well suited to demanding secure remote access and segmentation deployments.

Features

- NGFW bundle includes FW, VPN, ADNC, IA, MOB-5, IPS and APCL blades
- Software Blades architecture allows flexible addition of security functions
- Bundled local management for up to 2 gateways
- Lights-Out-Management (LOM) card for remote administration
- Graphic LCD display for IP address and image management
- Two USB ports for ISO installation
- Active/Active and Active/Passive L3 high availability with session synchronisation
- Optional second redundant hot-swappable AC power supply and 4 GB RAM upgrade
- Single integrated management console

Warranty

Check Point hardware appliances come with a 1-year limited hardware warranty.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Check Point products, ensuring your security infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.checkpoint.com/support-services/software-license-agreement-limited-hardware-warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1U rack-mount appliance
- 8 x 10/100/1000Base-T RJ45 ports (onboard)
- 1 network card expansion slot
- 5.8 Gbps production firewall throughput
- 1.1 Gbps production IPS throughput
- 673 SecurityPower Units
- 4 GB memory (8 GB max)
- 250 GB HDD
- One AC power supply (second redundant supply optional)
- Max 38,000 IPsec VPN tunnels
- Dimensions (W x D x H): 438 x 410 x 44 mm
- Weight: 7.6 kg
- AC input 100-240 V, 47-63 Hz, 140 W maximum power consumption
- Operating temperature: 0 to 40 C

FAQs

Q: Which software blades are included with the CPAP-SG4800-NGFW?
A: The NGFW bundle includes the FW, VPN, ADNC, IA, MOB-5, IPS and APCL blades, along with local management for up to 2 gateways.

Q: Can I add more network ports to the 4800?
A: Yes. The appliance has one network card expansion slot supporting 4 or 8 x 1GbE copper, 2 or 4 x 1GbE SFP, 2 x 10GbE SFP+, or Fail-Open NICs, for up to 16 copper ports in the maximum configuration.

Q: Does this model have a redundant power supply?
A: It ships with one AC power supply. A second redundant hot-swappable AC power supply is available as an option.

Q: How much memory does it have and can it be upgraded?
A: The base configuration has 4 GB of memory, upgradeable to a maximum of 8 GB.

Q: Does the 4800 support high availability clustering?
A: Yes. It supports Active/Active and Active/Passive Layer 3 high availability with session synchronisation using ClusterXL or VRRP.

Q: What mounting hardware is included?
A: The base configuration includes slide rails suitable for racks from 22 to 32 inches deep, for installation in a standard 1U rack space.
