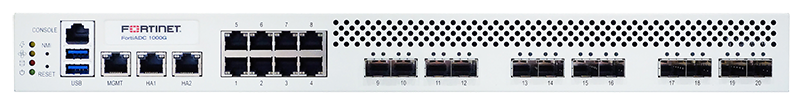

Fortinet FAD-1000G | FortiADC 1000G Application Delivery Controller, 8x10G RJ45, 12x10G SFP+

Fortinet FAD-1000G | FortiADC 1000G Application Delivery Controller, 8x10G RJ45, 12x10G SFP+

Authorised Fortinet Partner

FAD-1000G

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiADC 1000G is a 1U hardware application delivery controller delivering up to 50 Gbps of L4/L7 throughput. It combines advanced L4-L7 load balancing, ASIC-based SSL acceleration, global server load balancing and built-in web application security in a single appliance. Networking is covered by 8x10G RJ45 and 12x10G SFP+ ports, backed by 64 GB of memory and a 480 GB SSD, with dual hot-swap power supplies for resilient data centre deployments.

The 1000G supports up to 60 virtual domains for multi-tenant environments, TLS 1.3 offloading with 35 Gbps of bulk encryption throughput, and VRRP high availability using dedicated HA interfaces. Fabric connectors and DevOps tooling such as REST API, Ansible and Terraform make it straightforward to integrate into automated application delivery workflows.

Features

- Advanced L4-L7 load balancing with scripting support for content routing and manipulation
- Hardware-based SSL ASIC for SSL offloading, inspection and visibility, with TLS 1.3 support
- Global Server Load Balancing (GSLB) with FortiGSLB Cloud integration
- Web Application Firewall with adaptive learning, OWASP Top 10 protection, API security and credential stuffing defence
- Agentless application gateway with MFA and SSO
- Dynamic caching, HTTP compression and PageSpeed optimisation
- AI security with Threat Analytics and FortiGuard Advanced Bot Protection
- FortiAI-Assist with natural-language configuration and Text2Script
- Fabric connectors for K8s, SAP, AWS, OCI and Splunk, plus DevOps tooling including REST and declarative API, Ansible, Terraform and cloud-init
- VDOM and ADOM multi-tenancy, VRRP high availability, IPv4/IPv6 and BGP/OSPF dynamic routing
- Optional Network, Application and AI Security licence bundles

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- L4/L7 throughput: 50 Gbps
- L4 connections per second: 1.1 M
- L4 HTTP requests per second: 4 M
- L7 requests per second: 1.5 M
- Maximum L4 concurrent connections: 50 M
- SSL acceleration: ASIC-based
- TLS bulk encryption throughput: 35 Gbps
- TLS TPS (ECDHE-RSA-AES256-GCM-SHA384): 28000
- TLS TPS (ECDHE-ECDSA-AES256-GCM-SHA384): 57000
- Compression throughput: 25 Gbps
- Virtual domains: up to 60
- Memory: 64 GB
- Network interfaces: 8x10G RJ45, 12x10G SFP+
- Management interface: 1 x 10/100/1000
- HA interfaces: 2
- Storage: 480 GB SSD
- Management: HTTPS, SSH CLI, direct console, SNMP
- Power supply: dual hot-swap, AC and DC supported
- Power supply efficiency: 80 Plus Platinum
- Input voltage: 100 to 240V AC, 50/60 Hz
- Power consumption (avg/max): 301 / 362 W
- Trusted Platform Module: yes
- Form factor: 1U rack-mount
- Dimensions (W x H x D): 440 x 44 x 576 mm
- Weight: 10.75 kg
- Operating temperature: 0 to 40 C
- Airflow: front to back
- Safety and compliance: UL/cUL, CB, FCC/ICES, CM, RCM, VCCI, BSMI

FAQs

Q: What network ports does the FortiADC 1000G provide?
A: It has 8x10G RJ45 ports and 12x10G SFP+ ports for traffic, plus one 10/100/1000 management interface and two dedicated HA interfaces.

Q: What is the L4/L7 throughput of the FortiADC 1000G?
A: The appliance is rated for up to 50 Gbps of L4/L7 throughput, with 35 Gbps of TLS bulk encryption throughput using its ASIC-based SSL acceleration.

Q: Does the FortiADC 1000G support redundant power?
A: Yes. It includes dual hot-swap power supplies, with both AC and DC power supported, so a supply can be replaced without taking the unit offline.

Q: Can the FortiADC 1000G be deployed in a high availability pair?
A: Yes. It supports VRRP-based high availability using its two dedicated HA interfaces.

Q: Does it include web application security?
A: Yes. It includes a Web Application Firewall with adaptive learning, OWASP Top 10 protection and API security. Optional Network, Application and AI Security licence bundles extend these capabilities.

Q: How many virtual domains does the FortiADC 1000G support?
A: It supports up to 60 virtual domains, allowing separate tenants or applications to be isolated on the same appliance.
