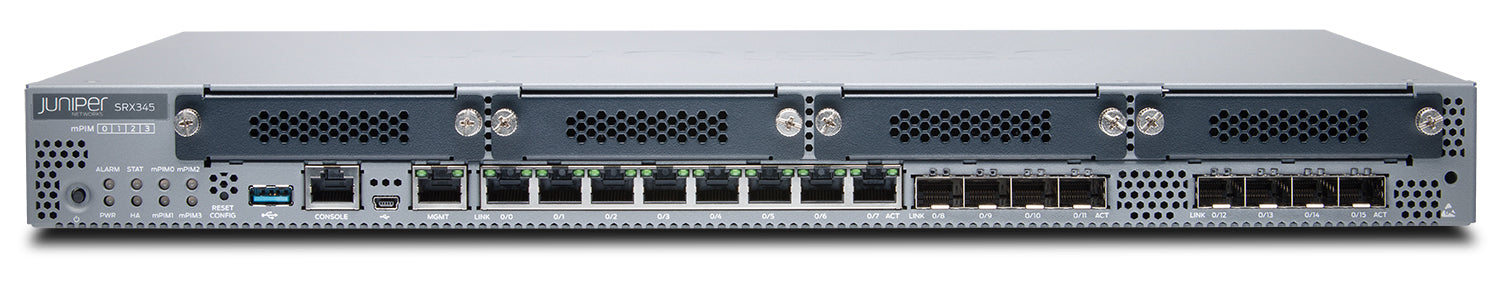

• Silver Juniper SRX345-DC firewall with Ethernet ports and grilles
1 1

Juniper

Juniper SRX345-DC | SRX345 DC Services Gateway Firewall, 16GE, 8x SFP, Hardware Only

Juniper SRX345-DC | SRX345 DC Services Gateway Firewall, 16GE, 8x SFP, Hardware Only

Authorised Juniper Partner

SRX345-DC

Stock Status: Enquire

$5,264.13 inc. GST
$4,785.57 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The SRX345-DC is a 1U DC-powered SRX345 services gateway firewall for midsize to large branch offices, combining next-generation security, routing, switching and WAN connectivity in a single device. It provides 16 x 1GbE RJ-45 ports, 8 x 1G SFP ports and 4 Mini-PIM slots, with up to 5 Gbps firewall throughput. This is the DC power, hardware-only unit and requires an SRX345 JSB or JSE software bundle to complete the system.

The SRX345 runs Junos OS and supports IPS, application security, role-based user firewall controls, secure SD-WAN and routing. Optional Mini-PIM modules add WAN connectivity such as T1/E1, ADSL2+/VDSL and 3G/4G LTE, while SecIntel threat intelligence and cloud-based filtering extend protection across distributed sites.

Features

- Next-generation firewall with IPS and application security
- Role-based user firewall controls
- Cloud-based antivirus, anti-spam and enhanced web filtering
- SecIntel threat intelligence, including C&C botnet and GeoIP policy enforcement
- Integrates with Juniper Advanced Threat Protection
- Secure SD-WAN and routing
- Optional WAN connectivity: Ethernet, T1/E1, ADSL2+/VDSL, 3G/4G LTE, 802.11ac Wave 2 Wi-Fi
- Managed through Security Director Cloud
- Runs Junos OS

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x 1GbE RJ-45 ports
- 8 x 1GbE SFP ports
- 1 management port
- 4 x Mini-PIM slots
- Firewall throughput: up to 5 Gbps
- IPsec VPN throughput: 977 Mbps
- 4 GB DRAM, 8 GB flash
- Internal DC power input
- Form factor: 1U rack-mountable, front-to-back airflow
- Average power consumption: 122 W
- Average heat dissipation: 420 BTU/hr
- Noise level: 35 dBA
- Dimensions (W x D x H): 17.36 x 14.6 x 1.72 in (approx. 44.1 x 37.0 x 4.4 cm)
- Weight: 10.8 lb (approx. 4.9 kg)

FAQs

Q: Is the SRX345-DC a complete system?
A: No. The SRX345-DC is the DC-powered hardware-only unit. It requires an SRX345 JSB or JSE software bundle to complete the system.

Q: What power input does the SRX345-DC use?
A: This model has an internal power supply with DC input, intended for sites where DC power is used.

Q: How many ports does it provide?
A: It provides 16 x 1GbE RJ-45 ports, 8 x 1G SFP ports and a management port, plus 4 Mini-PIM slots for expansion.

Q: What WAN connectivity options are available?
A: Mini-PIM slots allow optional WAN connectivity such as Ethernet, T1/E1, ADSL2+/VDSL, 3G/4G LTE and 802.11ac Wave 2 Wi-Fi.

Q: What throughput can the SRX345 deliver?
A: The SRX345 delivers up to 5 Gbps firewall throughput and 977 Mbps IPsec VPN throughput.

Q: Can it be rack mounted?
A: Yes. It is a 1U rack-mountable unit with front-to-back airflow.
