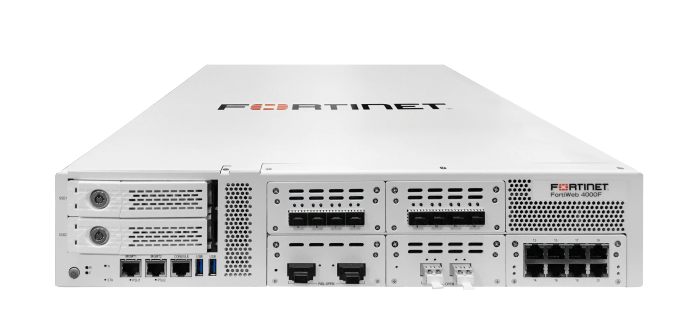

• White Fortinet FortiWeb-4000F firewall with ports and vents
1 1

Fortinet

Fortinet FWB-4000F | FortiWeb 4000F Web Application Firewall, 70 Gbps, 2x 40GE Bypass

Fortinet FWB-4000F | FortiWeb 4000F Web Application Firewall, 70 Gbps, 2x 40GE Bypass

Authorised Fortinet Partner

FWB-4000F

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FortiWeb 4000F is a high-performance 2U hardware web application firewall (WAF) and API protection appliance delivering up to 70 Gbps of throughput. This configuration provides 2x 40GE QSFP bypass ports, 10x 10GE SFP+ ports (2 with bypass), 8x GE RJ45 bypass ports, 2x 960GB SSD storage and dual AC power supplies, making it well suited to large data centres and service providers that need inline protection with fail-open connectivity.

FortiWeb uses machine learning to defend web applications and APIs against known and zero-day threats while keeping false positives low. Hardware SSL/TLS processing, advanced bot mitigation and integration with the Fortinet Security Fabric give security teams a scalable platform, with active/passive and active/active clustering for high availability.

Features

- Machine learning that detects and blocks threats while minimising false positives
- Advanced bot mitigation without friction for legitimate users
- Protection for APIs, including those supporting mobile applications
- Enhanced protection through Fortinet Security Fabric integration
- Simplified attack investigation with Threat Analytics
- Third-party integration and virtual patching
- Hardware SSL/TLS processing for high-throughput encrypted traffic
- Bypass-capable 40GE, 10GE and GE interfaces for inline deployment
- Active/passive and active/active clustering for high availability
- Hot-swappable dual power supplies

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Product type: Web application firewall (WAF) and API protection appliance
- Throughput: up to 70 Gbps
- Latency: less than 5 ms
- 40G QSFP ports: 2 (2 bypass)
- 10G SFP+ ports: 10 (2 bypass)
- GE RJ45 ports: 8 (8 bypass)
- Management ports: 2x GE
- Storage: 2x 960 GB SSD
- SSL/TLS processing: hardware
- USB interfaces: 2
- Power supply: dual hot-swappable AC, 100-240V AC, 50-60 Hz
- Average power consumption: 248.5 W
- Form factor: 2U rack-mount with flanges
- Dimensions (H x W x L): 88 x 444 x 574 mm
- Weight: 22.5 kg
- Operating temperature: 0 to 40 C
- Administrative domains: 64
- Application licences: unlimited

FAQs

Q: What throughput does the FortiWeb 4000F support?
A: The FortiWeb 4000F delivers up to 70 Gbps of throughput with latency under 5 ms, with hardware SSL/TLS processing for encrypted traffic.

Q: Which network interfaces are included?
A: It includes 2x 40G QSFP bypass ports, 10x 10G SFP+ ports (2 with bypass), 8x GE RJ45 bypass ports and 2x GE management ports.

Q: Does the FortiWeb 4000F support high availability?
A: Yes. It supports active/passive and active/active clustering, and the dual hot-swappable AC power supplies add hardware-level redundancy.

Q: How much storage does it include?
A: This model ships with 2x 960 GB SSD storage for logging and local data.

Q: What rack space does it need?
A: It is a 2U rack-mount appliance with mounting flanges, measuring 88 x 444 x 574 mm and weighing 22.5 kg.

Q: Does it protect APIs as well as web applications?
A: Yes. It provides machine learning based protection for web applications and APIs, including APIs that support mobile applications, along with bot mitigation and virtual patching.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
