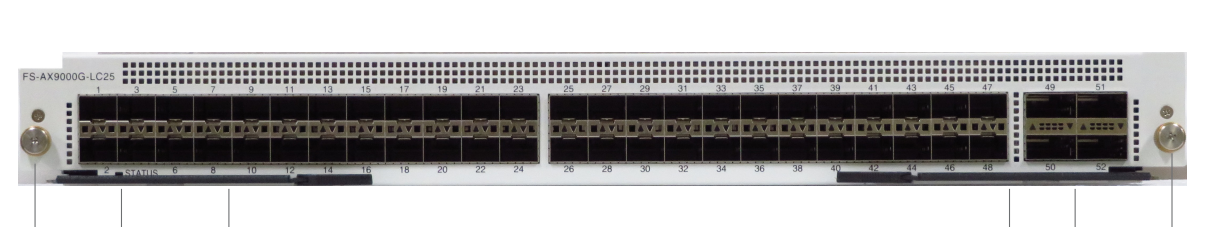

• Fortinet FS-AX9000G-LC25 line card: white rack switch with 48x25G SFP28 ports
1 1

Fortinet

Fortinet FS-AX9000G-LC25 | FortiSwitch AX9000G LC25 Line Card, 48 x 25G SFP28 + 4 x 100G QSFP28

Fortinet FS-AX9000G-LC25 | FortiSwitch AX9000G LC25 Line Card, 48 x 25G SFP28 + 4 x 100G QSFP28

FS-AX9000G-LC25

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Expand your FortiSwitch AX9000G chassis with a high-density LC25 line card delivering 48 x 25G/10G SFP28/SFP+ and 4 x 100G/40G QSFP28/QSFP+ interfaces. Designed for performance and flexibility, it provides hot-swappable scalability for modern aggregation and core networks. Backed by Fortinet's hardware warranty when purchased new, this line card supports mixed-speed optics to simplify upgrades and migrations. Need it fast?. iptrading.com.au delivers across Australia shop now. Need it fast? iptrading.com.au delivers across Australia shop now.

Features

- High-density 25GbE access with 100GbE uplinks for scalable aggregation
- Hot-swappable design minimises service disruption during expansions
- Flexible optics with SFP28/SFP+ and QSFP28/QSFP+ compatibility
- Purpose-built for FortiSwitch AX9000G modular chassis
- Supports mixed-speed migration from 10/40GbE to 25/100GbE

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product's announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: Hot-swappable line card for FortiSwitch AX9000G chassis
- Downlink ports: 48 x SFP28 cages (25GbE/10GbE compatible with SFP+)
- Uplink/aggregation ports: 4 x QSFP28 cages (100GbE/40GbE compatible with QSFP+)
- Optics support: SFP28/SFP+ and QSFP28/QSFP+ transceivers and DAC/AOC cables
- Intended use: High-density 25G edge/aggregation with 100G uplinks
- Cooling and power: Provided by host AX9000G chassis
- Installation: Tool-less hot-swap into AX9000G line card slots

FAQs

Q: What chassis is this line card compatible with?
A: It is designed specifically for the FortiSwitch AX9000G series chassis.

Q: Do the SFP28 ports support 10GbE SFP+ optics?
A: Yes. The 48 SFP28 ports are backward compatible with SFP+ modules and 10GbE speeds.

Q: Are the QSFP28 ports compatible with 40GbE QSFP+ modules?
A: Yes. The 4 QSFP28 ports support both 100GbE and 40GbE using QSFP28 and QSFP+ modules respectively.

Q: Can the LC25 be hot-swapped without downtime?
A: Yes. It is a hot-swappable line card and can be inserted or removed while the AX9000G chassis is operational, following Fortinet maintenance best practices.

Q: Does this require additional licensing to operate?
A: Basic hardware operation does not require a license, but FortiCare services and software features for the chassis may require appropriate Fortinet subscriptions.

Q: Can I purchase this in Australia from IP Trading?
A: Yes. IP Trading supplies genuine Fortinet hardware in Australia and can quote, supply, and deliver this line card nationally.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
