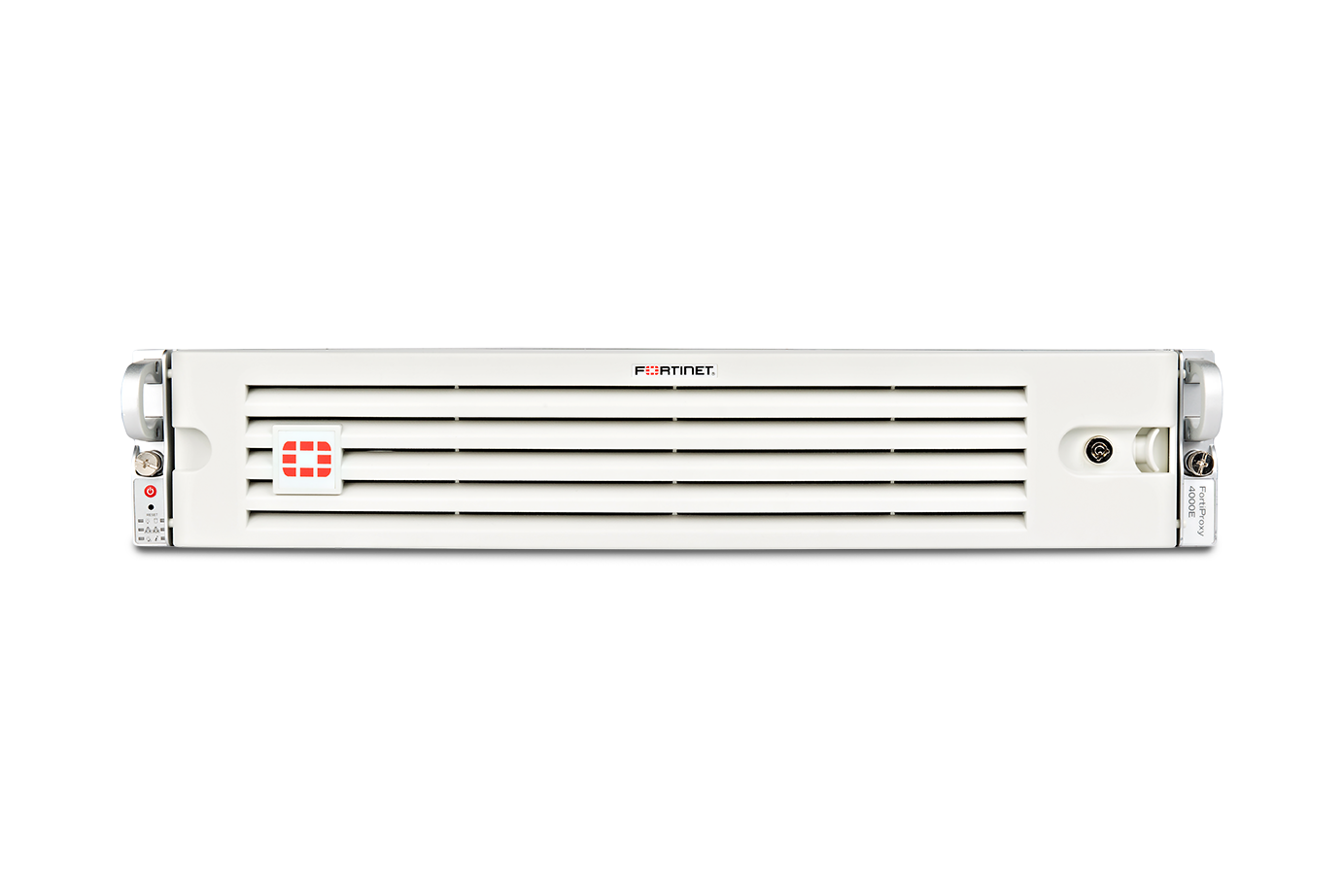

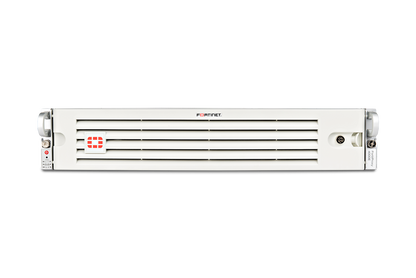

• Fortinet FPX-4000E FortiProxy-4000E white security appliance with red logo

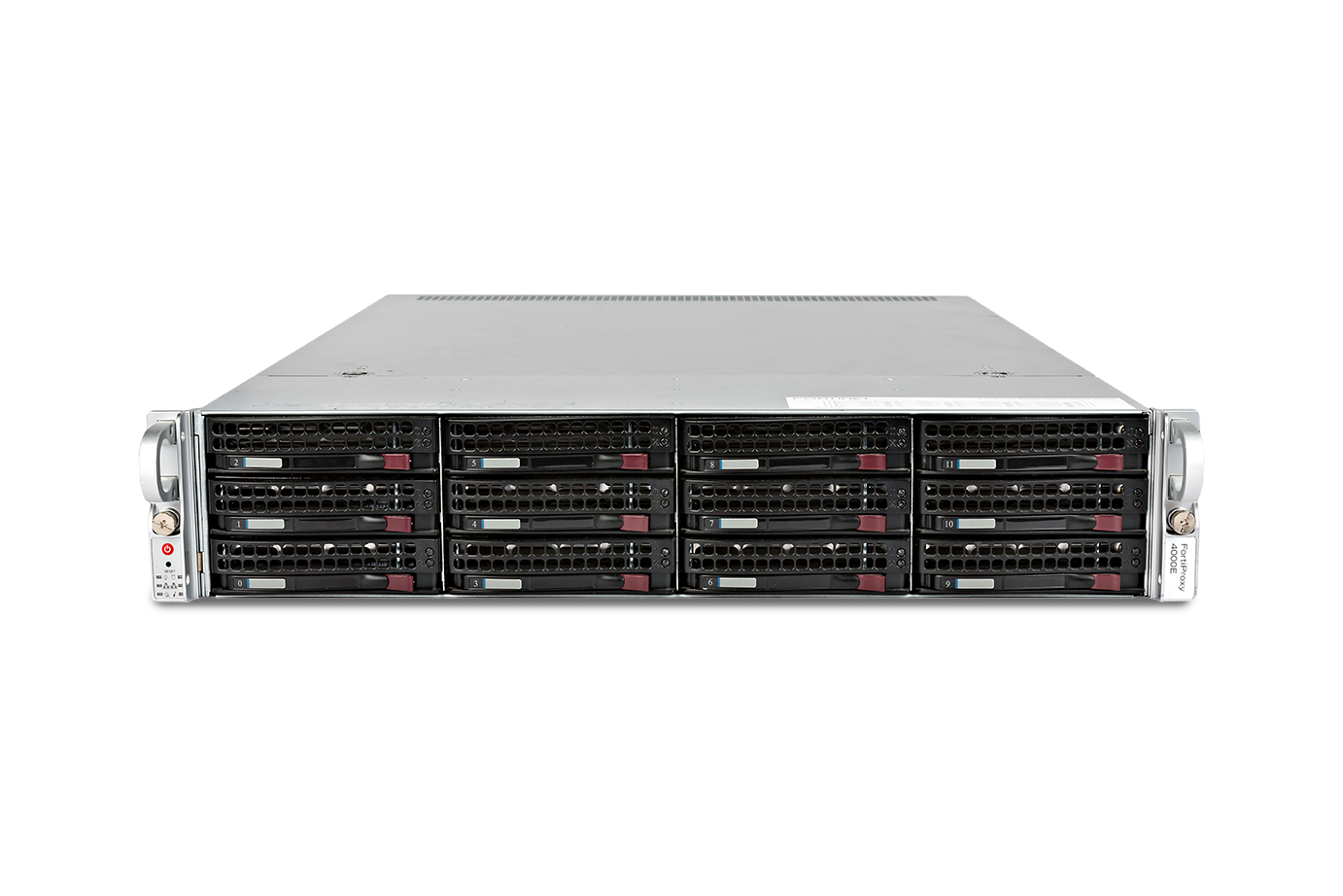

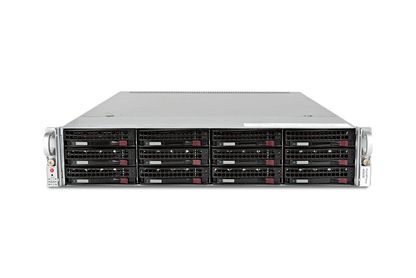

  • Fortinet FortiProxy-4000E silver server rack with red-lit drive bays

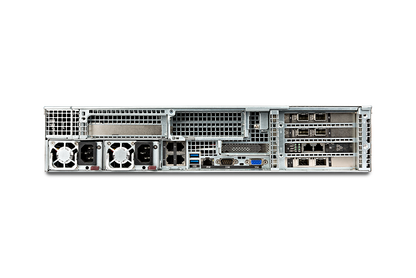

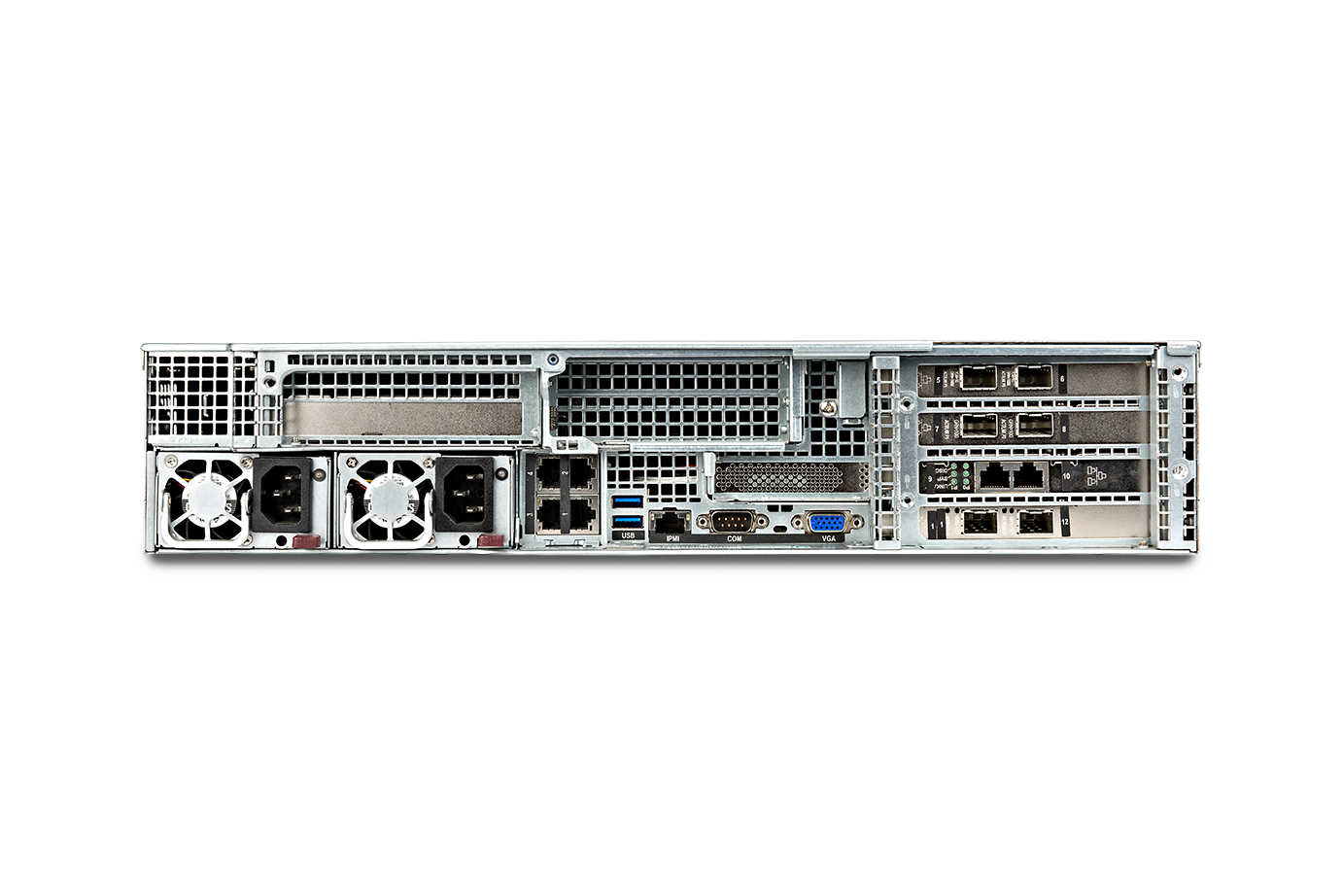

  • Fortinet FPX-4000E silver server rack with ports and ventilation grilles
1 3

Fortinet

Fortinet FPX-4000E | FortiProxy 4000E Secure Web Gateway, 4x 10GE SFP+, 8TB, 2U

Fortinet FPX-4000E | FortiProxy 4000E Secure Web Gateway, 4x 10GE SFP+, 8TB, 2U

Authorised Fortinet Partner

FPX-4000E

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiProxy 4000E is a 2U secure web gateway and proxy appliance built for large deployments, licensed for 10,000 to 50,000 users. It combines multiple detection techniques to protect against internet-borne attacks, and offers inline, transparent/WCCP, explicit and routed proxy deployment modes. This SKU provides 4x GE RJ45, 2x GE SFP and 4x 10GE SFP+ interfaces, plus 2x GE RJ45 bypass ports, 128 GB of memory and 8TB (4 x 2TB) of hard disk storage.

Dual AC power supplies and bypass interfaces support resilient, always-on web security. The appliance integrates with Fortinet Security Fabric components such as FortiSandbox and FortiAnalyzer, supports IPv4 and IPv6, and offers active-active and active-backup high availability with session synchronisation.

Features

- Secure web gateway using multiple detection techniques against internet-borne attacks
- Inline, transparent/WCCP, explicit and routed proxy deployment modes
- Integrates with Fortinet Security Fabric components such as FortiSandbox and FortiAnalyzer
- High availability in active-active and active-backup modes with session synchronisation
- IPv4 and IPv6 support
- Dual redundant power supplies and GE bypass ports for resilience

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- License capacity: 10,000-50,000 users
- Network interfaces: 4x GE RJ45, 2x GE SFP, 4x 10GE SFP+
- Bypass interfaces: 2x GE RJ45
- Storage: 8TB (4 x 2TB) hard disk
- Memory: 128 GB
- Power supply: dual AC, 100-240V, 50-60 Hz
- Power consumption: 462 W average, 493 W maximum
- Form factor: 2U rack-mount appliance
- Dimensions (H x W x L): 89 x 437 x 647 mm
- Weight: 19.5 kg
- Operating temperature: 10-35 C
- Management: HTTP/S, SSH, CLI, SNMP, console DB9
- Compliance: FCC, ICES, CE, RCM, VCCI, BSMI (Class A), UL/cUL, CB

FAQs

Q: How many users does the FortiProxy 4000E support?
A: It is designed for large deployments with a licence capacity of 10,000 to 50,000 users.

Q: What network interfaces does this model include?
A: It provides 4x GE RJ45, 2x GE SFP and 4x 10GE SFP+ ports, plus 2x GE RJ45 bypass ports.

Q: Which deployment modes are supported?
A: The FortiProxy 4000E supports inline proxy, transparent/WCCP proxy, explicit proxy and routed proxy modes.

Q: Does it support high availability?
A: Yes. It supports active-active and active-backup high availability with session synchronisation.

Q: How much storage and memory does it have?
A: This SKU includes 8TB of hard disk storage (4 x 2TB) and 128 GB of memory.

Q: Does it integrate with other Fortinet products?
A: Yes. It integrates with Fortinet Security Fabric components such as FortiSandbox and FortiAnalyzer.
