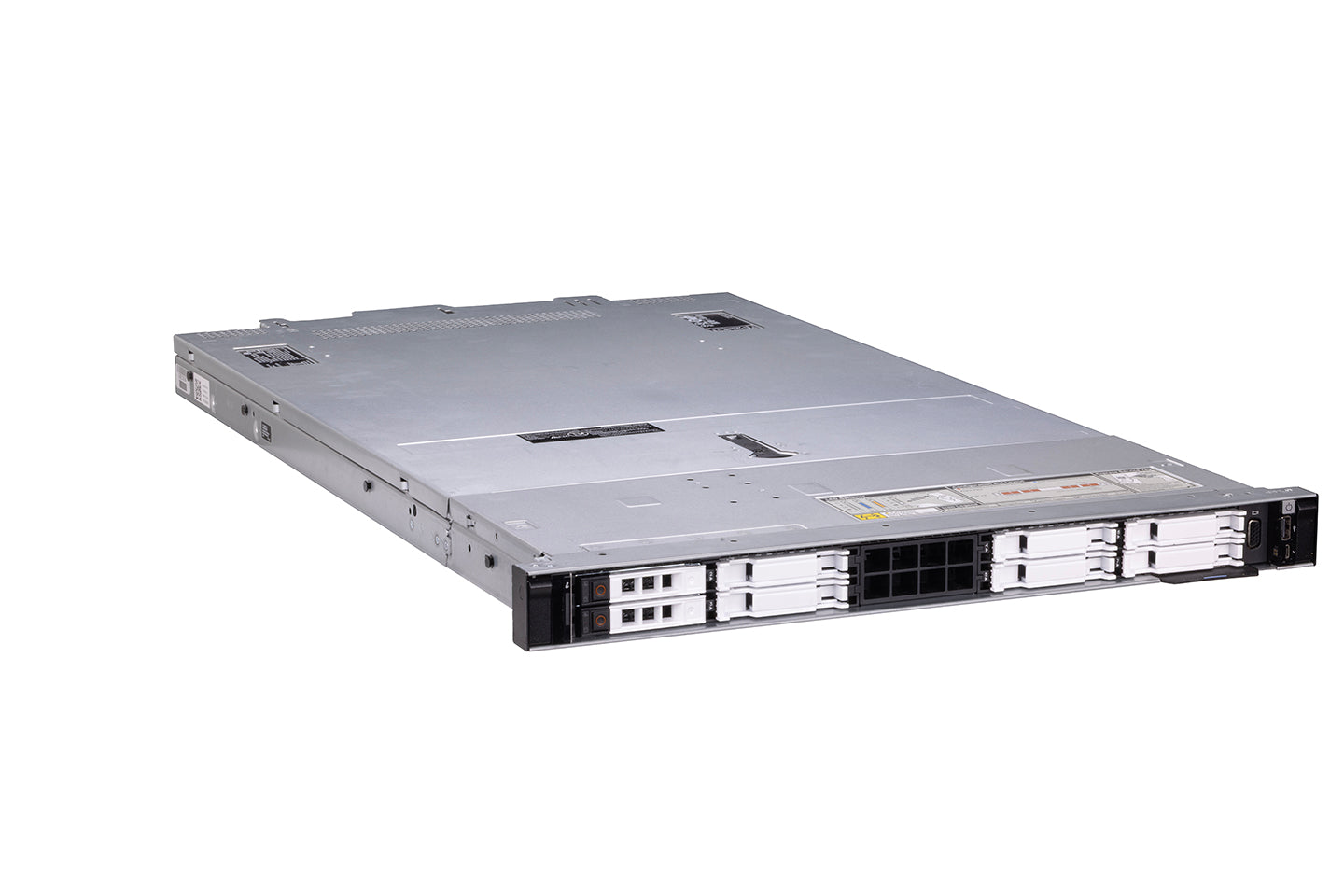

• Fortinet FNRC-500G 1U rack-mount server with silver finish and drive bays

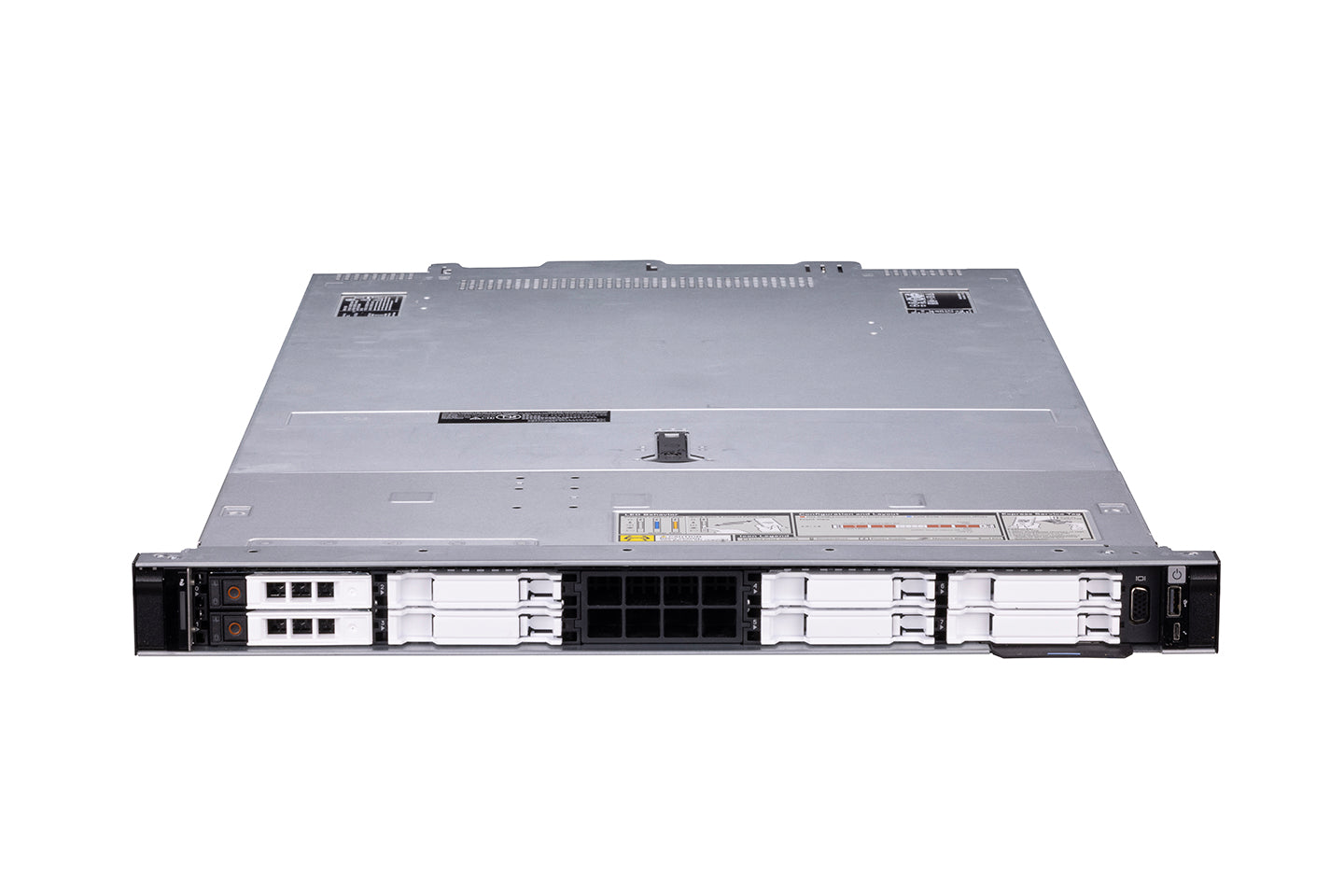

  • Fortinet FNRC-500G FortiNDRCloud 500G 1U sensor front view

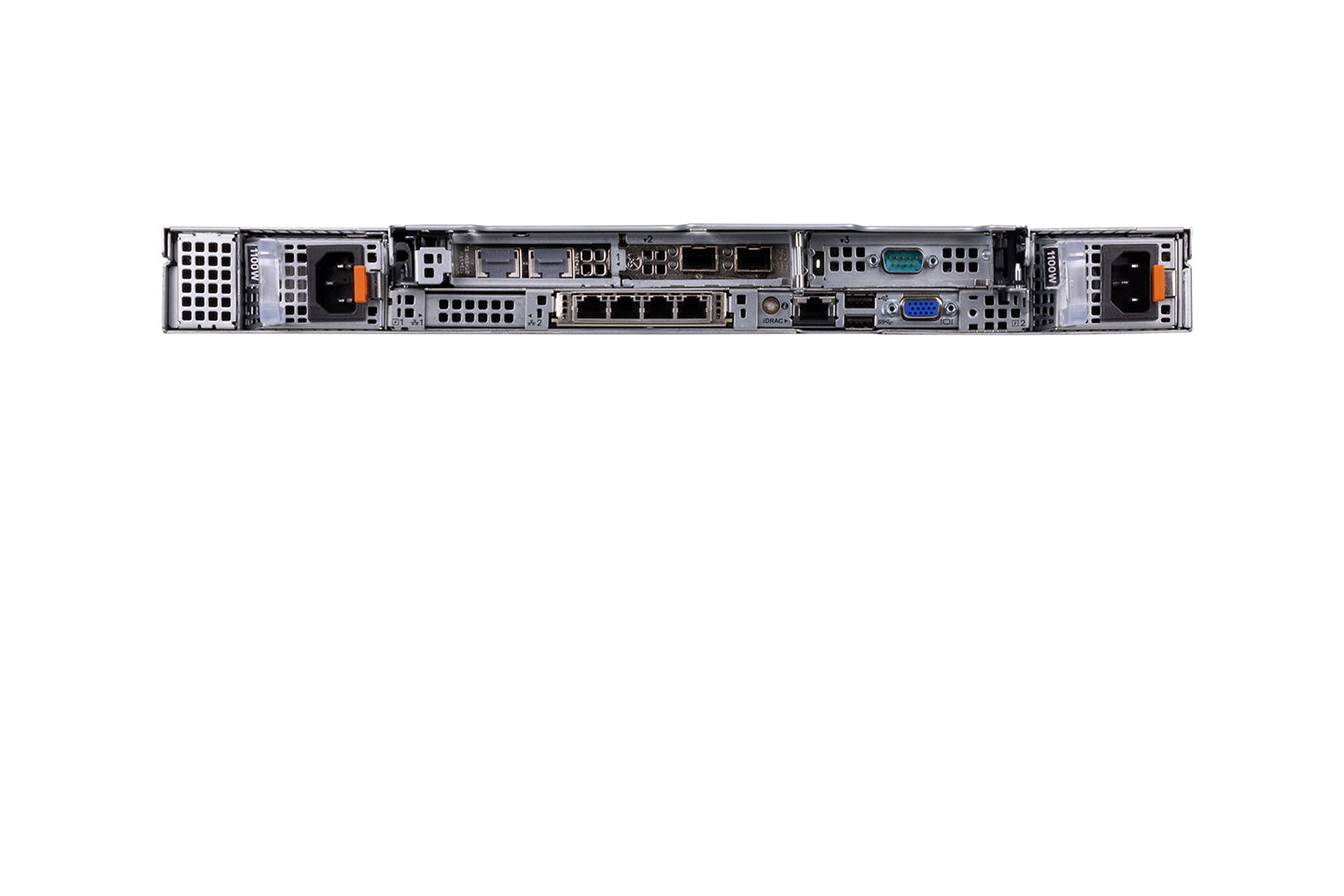

  • Silver Fortinet FNRC-500G 1U server rack with ports and vents

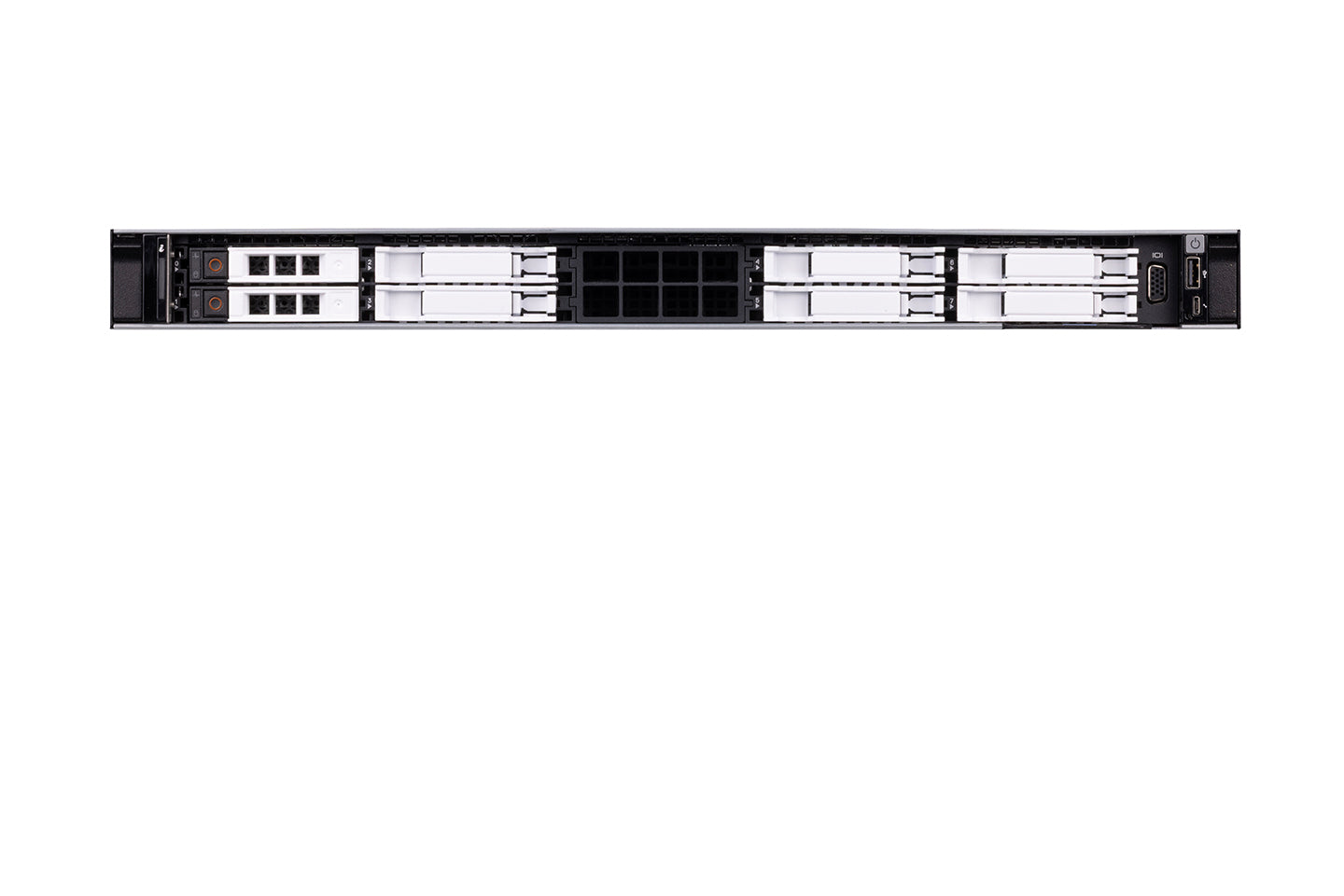

  • Fortinet FNRC-500G 1U rack server with drive bays and ports
1 4

Fortinet

Fortinet FNRC-500G | FortiNDR Cloud 500G 1U Sensor, 2x 10/25GbE SFP28

Fortinet FNRC-500G | FortiNDR Cloud 500G 1U Sensor, 2x 10/25GbE SFP28

Authorised Fortinet Partner

FNRC-500G

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiNDR Cloud 500G is a 1U physical network detection and response sensor that captures network traffic and delivers metadata to the FortiNDR Cloud SaaS platform. This small 500G model is hardware only and provides 2x 10/25GbE SFP28, 4x 1GbE RJ45 and 2x 10GbE RJ45 interfaces, with NDR sniffer throughput of 14 Gbps (enterprise mix) for monitoring enterprise network segments.

The sensor includes 2 x 1.6TB of removable storage in a default RAID 1 configuration and supports sniffer, SPAN and 802.1q deployments. Transceivers are purchased separately, and a separate support licence is required to operate the sensor with the FortiNDR Cloud service.

Features

- Guided-SaaS NDR with dedicated Technical Success Manager support
- AI/ML, behavioural and human analysis of network traffic to detect malicious behaviour
- 365-day retention of network metadata for retrospective analysis and threat hunting
- Curated FortiGuard Labs threat intelligence to reduce false positives
- Detections and playbooks mapped to MITRE ATT&CK
- Integrations with Fortinet Security Fabric, CrowdStrike, FortiEDR, FortiSIEM, FortiSOAR, Cortex, Splunk, QRadar and Microsoft Sentinel
- Malware and botnet identification using the FortiGuard feed and VirusTotal hash lookup

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1U rack-mount physical sensor (small, 500G model)
- 2 x 10/25GbE SFP28
- 4 x 1GbE RJ45
- 2 x 10GbE RJ45
- Sniffer interfaces: 3 x 1Gbps RJ45, 2 x 10Gbps RJ45, 2 x 10/25GbE SFP28
- NDR sniffer throughput: 14 Gbps (enterprise mix)
- Storage: 2 x 1.6TB, default RAID 1
- Removable and redundant hot-swappable drives
- Sniffer, SPAN and 802.1q support
- Transceivers not included, purchase separately
- Dimensions (H x W x L): 42.8 x 482 x 809.04 mm
- Weight: 17.23 kg
- AC power supply: 100-240 VAC, 50/60 Hz
- Power consumption: 350 W average, 500 W maximum
- Operating temperature: 10°C to 35°C
- Certifications: FCC, ISED, CE, RCM, VCCI, BSMI (Class A), UL/cUL, CB
- Hardware only, support licence must be purchased

FAQs

Q: Does the FNRC-500G include a FortiNDR Cloud subscription?
A: No. This SKU is the physical sensor hardware only. A separate support licence (FC-10-NDR5G-247-02-DD) must be purchased.

Q: Are SFP transceivers included?
A: No. Transceivers are purchased separately. The SFP28 ports accept SFP+ SR/LR modules for 10Gbps and SFP28 SR modules for 25Gbps.

Q: What network interfaces does this sensor provide?
A: It provides 2x 10/25GbE SFP28, 4x 1GbE RJ45 and 2x 10GbE RJ45 interfaces. Sniffer ports include 3 x 1Gbps RJ45, 2 x 10Gbps RJ45 and 2 x 10/25GbE SFP28.

Q: What throughput can the sensor handle?
A: NDR sniffer throughput, measured as metadata processing across all ports, is 14 Gbps with an enterprise traffic mix.

Q: How does the sensor connect to the FortiNDR Cloud platform?
A: The sensor captures traffic through sniffer, SPAN or 802.1q feeds and delivers the resulting metadata to the FortiNDR Cloud SaaS platform for analysis and retention.

Q: What storage does the sensor have?
A: It includes 2 x 1.6TB removable drives configured as RAID 1 by default, with redundant hot-swappable support.
