Fortinet FG-901G-DC | Next-Gen Firewall, 4x 25G SFP28, Dual DC PSU, 2x 480GB SSD

Fortinet FG-901G-DC | Next-Gen Firewall, 4x 25G SFP28, Dual DC PSU, 2x 480GB SSD

Authorised Fortinet Partner

FG-901G-DC

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

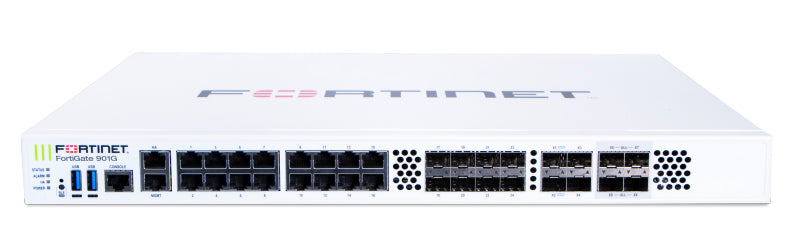

The FG-901G-DC is a 1RU next-generation firewall for data centre and enterprise edge deployments, powered by dual hot-swappable 48-60VDC power supplies and 2x 480GB onboard SSD storage. NP7 and CP9 security processors deliver up to 164 Gbps of IPv4 firewall throughput, 42 Gbps of IPS throughput and 31 Gbps of NGFW throughput, with ultra-low-latency 25GE/10GE SFP28/SFP+ ports for high-speed uplinks.

Connectivity includes 4x 25GE/10GE SFP28/SFP+ slots, 4x 10GE/GE SFP+/SFP slots, 8x GE SFP slots, 16x GE RJ45 switch ports, a dedicated management port and a 2.5/1GE RJ45 HA port. It runs FortiOS, integrates with the Fortinet Security Fabric, supports FortiLink to manage FortiSwitch access-layer switches, and includes a built-in Trusted Platform Module to protect cryptographic keys.

Features

- NP7 network processor and CP9 content processor hardware acceleration
- Ultra-low-latency 25GE/10GE SFP28/SFP+ ports for high-speed data centre links
- Dual hot-swappable DC power supplies for power redundancy
- 2x 480GB onboard SSD storage for local logging and reporting
- Built-in Trusted Platform Module (TPM) to protect cryptographic keys
- FortiLink support to extend the firewall to FortiSwitch access-layer switches
- Runs FortiOS and integrates with the Fortinet Security Fabric
- Dedicated 2.5/1GE HA port for high-availability clustering

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x 25GE/10GE SFP28/SFP+ ultra-low-latency slots
- 4 x 10GE/GE SFP+/SFP slots
- 8 x GE SFP slots
- 16 x GE RJ45 switch ports, 1 x GE RJ45 management port, 1 x 2.5/1GE RJ45 HA port
- 2 x USB client and 2 x USB server ports, 1 x console port
- Included transceivers: 2x SFP SX
- Onboard storage: 2 x 480 GB SSD
- Trusted Platform Module (TPM) and Bluetooth Low Energy (BLE)
- IPv4 firewall throughput (1518 / 512 / 64 byte UDP): 164 / 163 / 153 Gbps
- Firewall latency (64 byte UDP): 3.78 / 2.5 μs on ULL ports
- IPS throughput: 42 Gbps
- NGFW throughput: 31 Gbps
- Threat protection throughput: 30 Gbps
- IPsec VPN throughput (512 byte): 55 Gbps
- SSL-VPN throughput: 10 Gbps
- SSL inspection throughput (IPS, avg HTTPS): 16.7 Gbps
- Concurrent sessions (TCP): 16 million
- New sessions per second (TCP): 720,000
- Firewall policies: 50,000
- Dual hot-swappable DC power supplies, 48-60VDC, 7A at 48V maximum
- Power consumption (average / maximum): 184 W / 323 W
- Dimensions (H x W x L): 44.45 x 432 x 380 mm, 1RU rack mount
- Weight: 7.5 kg
- Operating temperature: 0 to 45 C
- Compliance: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB, USGv6/IPv6

FAQs

Q: Does the FG-901G-DC use AC or DC power?
A: This model has dual hot-swappable DC power supplies rated for 48-60VDC, making it suited to telco and data centre sites with DC power plant.

Q: What network ports does the FG-901G-DC provide?
A: It has 4x 25GE/10GE SFP28/SFP+ slots, 4x 10GE/GE SFP+/SFP slots, 8x GE SFP slots, 16x GE RJ45 switch ports, 1x GE RJ45 management port and 1x 2.5/1GE RJ45 HA port.

Q: What is the NGFW throughput of the FG-901G-DC?
A: NGFW throughput is 31 Gbps, with 42 Gbps IPS throughput and 30 Gbps threat protection throughput.

Q: Does it include onboard storage?
A: Yes. This SKU includes 2x 480GB onboard SSD storage, which is the feature that separates it from models without onboard SSDs.

Q: Can it manage FortiSwitch access switches?
A: Yes. FortiLink support lets the firewall extend security policy to FortiSwitch access-layer switches.

Q: Is the FG-901G-DC a rack-mount unit?
A: Yes. It is a 1RU rack-mount appliance supporting EIA and non-EIA rack standards.
