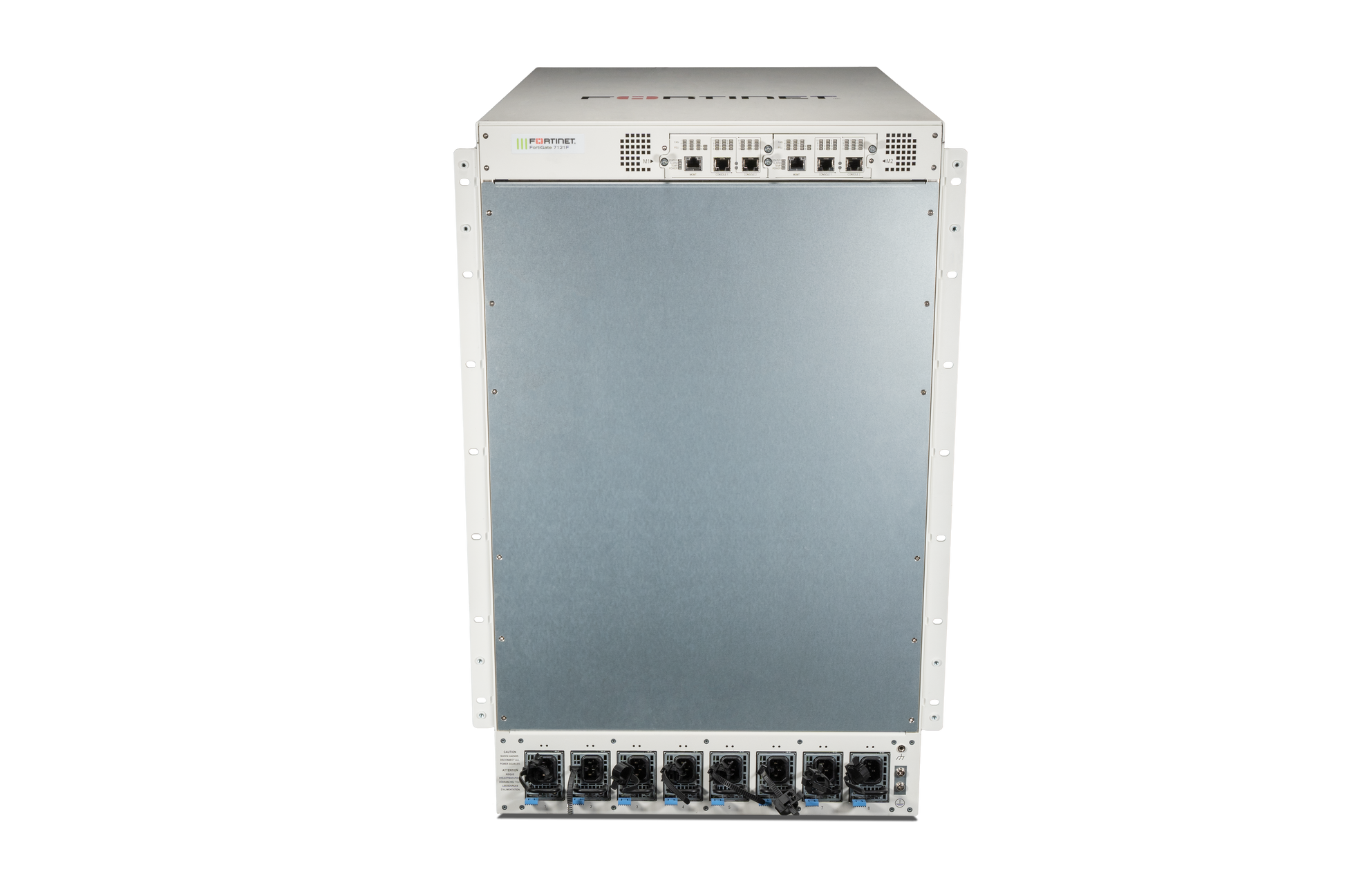

• Fortinet FG-7121F-DC-CH FortiGate-7121F chassis with white rack-mount design
1 1

Fortinet

Fortinet FG-7121F-DC-CH | FortiGate-7121F DC Chassis, 16U, 8x DC PSU, 6x Fan

Fortinet FG-7121F-DC-CH | FortiGate-7121F DC Chassis, 16U, 8x DC PSU, 6x Fan

Authorised Fortinet Partner

FG-7121F-DC-CH

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FG-7121F-DC-CH is a DC-powered 16U chassis for the FortiGate 7121F high-performance next-generation firewall. It is supplied as a spare chassis with 2x system management modules, 8x DC power supplies, 6x fan modules and 8x DC input cables, giving data centre and carrier-scale deployments a ready-to-populate platform for 10 FPM slots and 2 FIM slots.

The processor (FPM) and I/O (FIM) modules are separate items and are not included with this chassis. A fully populated FG-7121F system delivers up to 1.89 Tbps of IPv4 firewall throughput, 675 Gbps of IPS throughput and 550 Gbps of NGFW throughput, with hot-swappable redundant power and fan modules for resilient operation within the Fortinet Security Fabric.

Features

- Purpose-built SPU technology (NP7 and CP9) for high-performance threat protection and low latency
- Industry-leading IPS, SSL inspection and advanced threat protection backed by FortiGuard Labs
- Virtual domains (VDOMs) for multi-tenancy and flexible deployment
- High-density, high-speed interfaces (400GE, 100GE, 40GE, 25GE, 10GE) for data centre and WAN deployments
- Integrates with the Fortinet Security Fabric with a single-pane-of-glass management console
- Hot-swappable redundant PSU and fan modules

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 16 RU chassis with 12 slots (10 FPM slots and 2 FIM slots)
- Included: 2x system management modules, 8x 2KW DC PSU, 6x fan modules, 8x DC input cables
- FPM and FIM modules not included (sold separately)
- Dimensions (H x W x L): 727.2 x 440 x 675.5 mm
- Maximum weight: 203.1 kg
- Maximum power consumption: 9754 W (average 8296 W)
- Heat dissipation (maximum): 33,261 BTU/h
- Operating temperature: 0 to 40 C
- Storage temperature: -35 to 70 C
- Humidity: 20 to 90% non-condensing
- Complete FG-7121F system (10 FPM): 1.89 Tbps IPv4 firewall throughput
- Complete system: 675 Gbps IPS, 550 Gbps NGFW, 520 Gbps threat protection
- Complete system: 1 billion concurrent sessions, 9 million new sessions per second
- Virtual domains: 10 default, 500 maximum
- High availability: Active-Passive and Active-Active
- Certifications: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB

FAQs

Q: Does the FG-7121F-DC-CH include processor and I/O modules?
A: No. This is a spare chassis supplied without FPM processor modules and FIM I/O modules. These are separate items and must be ordered to build a working FG-7121F system.

Q: What is included with this chassis?
A: The chassis ships with 2x system management modules, 8x DC power supplies, 6x fan modules and 8x DC input cables.

Q: How many modules can the chassis hold?
A: It is a 16 RU, 12-slot chassis with 10 slots for FPM processor modules and 2 slots for FIM I/O modules.

Q: Is this the AC or DC version?
A: This is the DC-powered chassis, supplied with 8x DC power supplies and 8x DC input cables for DC power environments.

Q: What performance can a fully populated FG-7121F deliver?
A: A complete system with 10 FPM modules delivers 1.89 Tbps IPv4 firewall throughput, 675 Gbps IPS, 550 Gbps NGFW and 520 Gbps threat protection throughput.

Q: Are the power supplies and fans hot-swappable?
A: Yes. The redundant PSU and fan modules are hot-swappable, supporting maintenance without taking the firewall offline.
