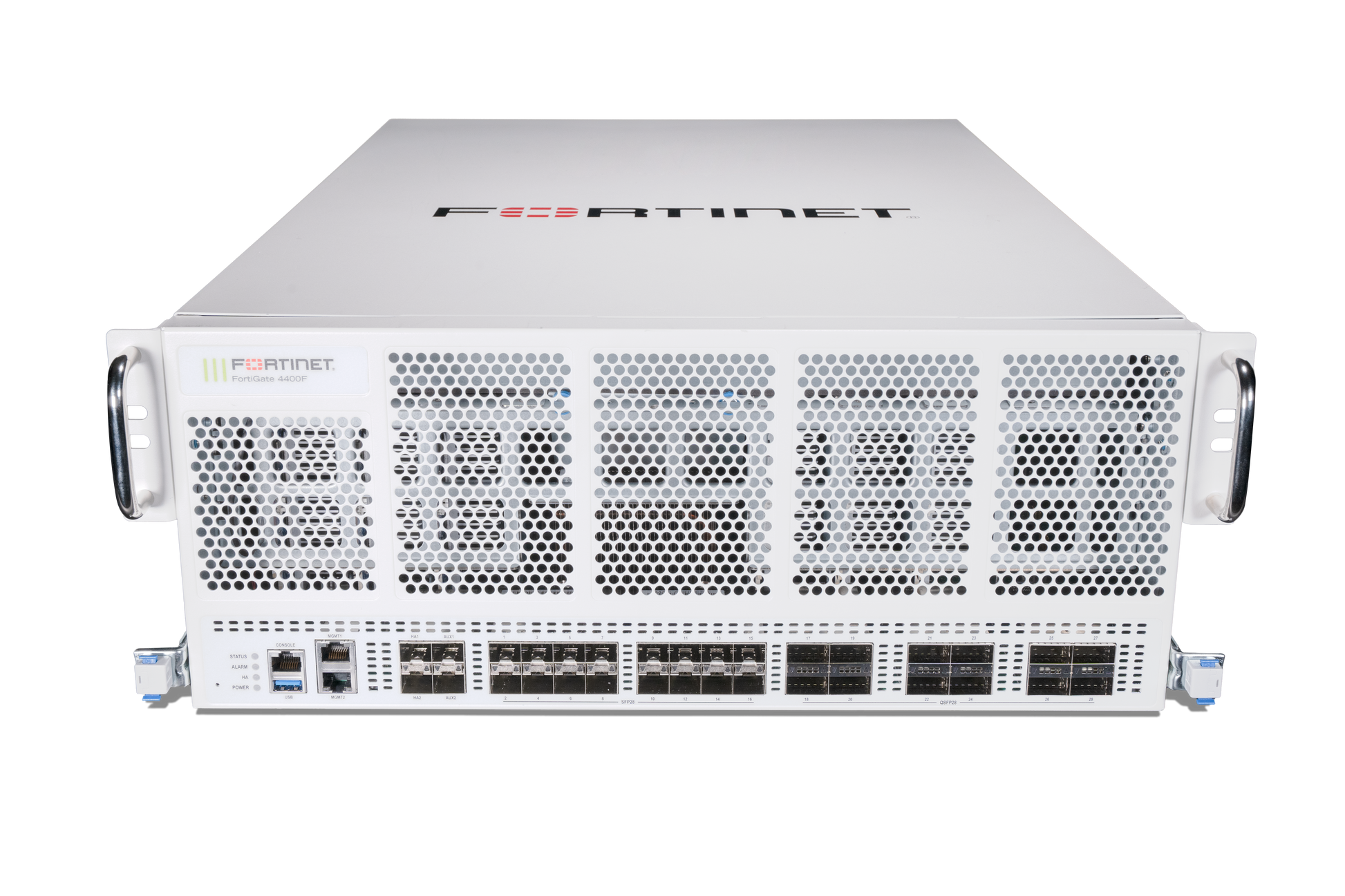

• Fortinet FG-4401F FortiGate-4401F white security appliance front view
1 1

Fortinet

Fortinet FG-4401F | FortiGate 4400F Next-Gen Firewall, 1.15 Tbps, AC, 2x 2TB SSD

Fortinet FG-4401F | FortiGate 4400F Next-Gen Firewall, 1.15 Tbps, AC, 2x 2TB SSD

Authorised Fortinet Partner

FG-4401F

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiGate 4401F is a high-performance 4U data-centre and carrier-grade next-generation firewall delivering 1.15 Tbps of firewall throughput, 94 Gbps of IPS throughput and 82 Gbps of NGFW throughput. Built on Fortinet SPU NP7 and CP9 acceleration, it provides 12 x 100GE QSFP28 / 40GE QSFP+ slots and 25GE SFP28 / 10GE SFP+ / GE SFP slots for high-density core network segmentation. This AC power model includes 2x 2TB SSD onboard storage, which sets it apart from the FG-4400F with no onboard storage and from the DC models.

Four hot-swappable redundant AC power supplies, dual GE RJ45 management ports and Active/Active, Active/Passive and clustering high availability options make it suited to carrier, service provider and large enterprise deployments. Carrier-grade NAT and mobile security for 4G and 5G networks, including SGi LAN and N6 security, RAN access security and GTP-U inspection, extend its use to mobile core environments.

Features

- SPU NP7 and CP9 hardware acceleration
- Purpose-built security processors delivering validated IPS performance with high throughput and low latency
- Deep packet inspection at wire speed, including TLS 1.3 encrypted traffic
- Carrier-grade NAT (CGN) with high connections per second and many IP translations
- Mobile security for 4G and 5G: SGi LAN and N6 security, RAN access security (IPsec aggregation and SecGW), and GTP-U inspection
- Virtual patching at the network level
- Hot-swappable redundant AC power input
- High-speed 100GE interfaces for core network segmentation without extra bridging devices

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Firewall throughput: 1.15 Tbps
- IPS throughput: 94 Gbps
- NGFW throughput: 82 Gbps
- Threat Protection throughput: 75 Gbps
- Application Control throughput (HTTP 64K): 140 Gbps
- CAPWAP throughput (HTTP 64K): 63 Gbps
- 12 x 100GE QSFP28 / 40GE QSFP+ slots
- 25GE SFP28 / 10GE SFP+ / GE SFP slots: 16 data, 2 HA and 2 AUX
- 2 x GE RJ45 management ports
- 1 x USB 3.0 port and 1 x console port
- Onboard storage: 2 x 2TB SSD
- Included transceivers: 2 x SFP+ (SR 10 GE)
- Virtual Domains (default / maximum): 10 / 500
- Maximum FortiSwitches supported: 300
- Maximum FortiAPs (total / tunnel mode): 4,096 / 2,048
- Maximum FortiTokens: 20,000
- High availability: Active/Active, Active/Passive, Clustering
- Power: 4 x hot-swappable redundant AC power supplies
- Form factor: 4U, full-depth, front-to-rear airflow
- Weight: 37.1 kg

FAQs

Q: What is the difference between the FG-4401F and the FG-4400F?
A: The FG-4401F includes 2x 2TB SSD onboard storage, while the FG-4400F has no onboard storage. This SKU is the AC powered model.

Q: What power supplies does the FG-4401F use?
A: It uses four hot-swappable redundant AC power supplies, so a single supply can be replaced without taking the firewall offline.

Q: What network interfaces does the FG-4401F provide?
A: It provides 12 x 100GE QSFP28 / 40GE QSFP+ slots, 25GE SFP28 / 10GE SFP+ / GE SFP slots (16 data, 2 HA and 2 AUX) and 2 x GE RJ45 management ports.

Q: Does the FG-4401F support high availability?
A: Yes. It supports Active/Active, Active/Passive and clustering high availability configurations.

Q: Is the FG-4401F suitable for mobile network deployments?
A: Yes. It includes carrier-grade NAT and 4G and 5G mobile security features, including SGi LAN and N6 security, RAN access security and GTP-U inspection.

Q: What are the physical dimensions and weight of the FG-4401F?
A: It is a 4U full-depth rack-mount appliance with front-to-rear airflow and weighs 37.1 kg.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
