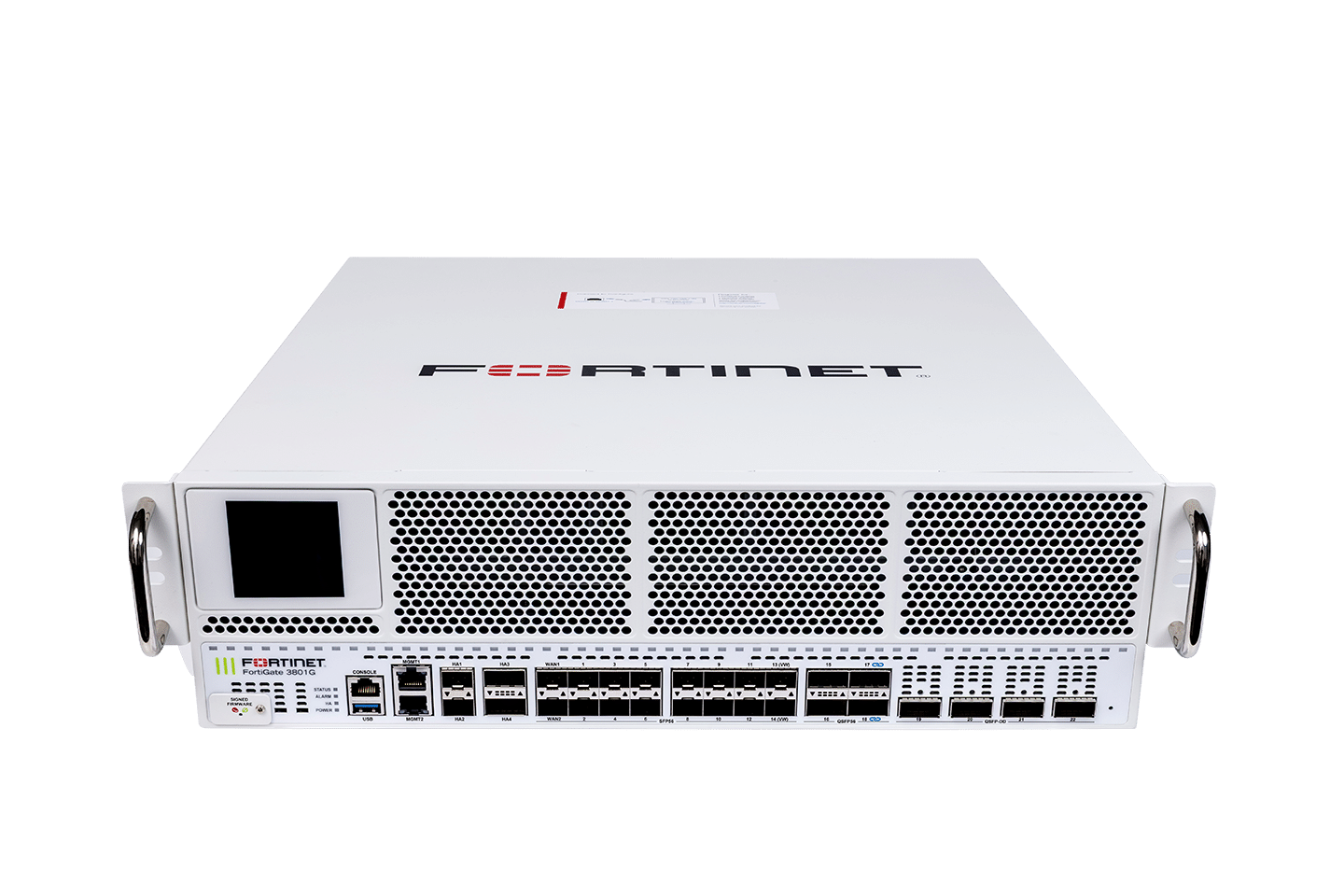

• White Fortinet FortiGate-3801G security appliance front view
1 1

Fortinet

Fortinet FG-3801G | Data Centre Firewall, 4x 400GE, 2x 1.92TB, 4 AC PSU

Fortinet FG-3801G | Data Centre Firewall, 4x 400GE, 2x 1.92TB, 4 AC PSU

Authorised Fortinet Partner

FG-3801G

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FortiGate-3801G is a high-performance data centre next-generation firewall from the FortiGate 3800G Series, built for core and hyperscale deployments that need very high throughput. It delivers 795 Gbps of firewall throughput, 210 Gbps NGFW and 200 Gbps threat protection, backed by 1.11 million new sessions per second and 200 million concurrent sessions. This SKU ships with 2x 1.92TB local storage and 4 AC power supplies in a 3U rack-mount chassis.

Interface density includes 4x 400GE QSFP-DD, 6x 200GE QSFP56 and 18x 50GE SFP56 slots, with breakout modes for 100GE, 40GE, 25GE and 10GE, plus 2x 10GE RJ45 management ports. Fortinet SPU NP7 network processors and CP10 content processors accelerate security functions in line with FortiOS, including real-time SSL inspection with TLS 1.3, integrated ZTNA enforcement and dynamic segmentation with VXLAN support.

Features

- Fortinet SPU NP7 network processor works in line with FortiOS to deliver high firewall performance
- CP10 co-processors offload resource-intensive security functions
- Integrated Zero Trust Network Access (ZTNA) enforcement within the NGFW
- Real-time SSL inspection including TLS 1.3
- AI/ML-powered FortiGuard security services natively integrated
- Dynamic segmentation with VXLAN support for data centre and multi-cloud environments
- FortiOS converges networking and security in a single platform
- Foundation for a Hybrid Mesh Firewall architecture

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x 400GE QSFP-DD slots (breakout modes include 2x200, 2x100, 2x40, 4x100, 8x50, 8x25 and 8x10 GE)
- 6 x 200GE QSFP56 slots (also 100/40/4x50/4x25/4x10 GE)
- 18 x 50GE SFP56 slots (also 25/10 GE)
- 2 x 10GE RJ45 management ports
- SPU NP7 network processor and CP10 content processors
- 2 x 1.92TB local storage plus 64GB onboard SD storage
- 4 x AC power supplies
- Firewall throughput: 795 Gbps
- IPS throughput: 250 Gbps
- NGFW throughput: 210 Gbps
- Threat Protection throughput: 200 Gbps
- IPsec VPN throughput: 210 Gbps (target performance)
- New sessions per second: 1.11 million
- Concurrent sessions: 200 million
- Form factor: 3U rack-mount

FAQs

Q: What interfaces does the FortiGate-3801G provide?
A: It provides 4x 400GE QSFP-DD slots, 6x 200GE QSFP56 slots and 18x 50GE SFP56 slots, plus 2x 10GE RJ45 management ports. Many slots support breakout or lower-speed modes such as 100GE, 40GE, 25GE and 10GE.

Q: What throughput does the FortiGate-3801G deliver?
A: Firewall throughput is 795 Gbps, IPS is 250 Gbps, NGFW is 210 Gbps and threat protection is 200 Gbps. IPsec VPN is rated at 210 Gbps (target performance).

Q: What is included in this SKU's configuration?
A: This SKU includes 2x 1.92TB local storage and 4 AC power supplies, in a 3U rack-mount chassis.

Q: Which security processors does it use?
A: It uses Fortinet SPU NP7 network processors and CP10 content processors, which accelerate firewalling and offload resource-intensive security functions such as SSL inspection.

Q: Does the FortiGate-3801G support TLS 1.3 inspection and ZTNA?
A: Yes. It supports real-time SSL inspection including TLS 1.3 and integrates ZTNA enforcement within the next-generation firewall.

Q: What environments is the FortiGate-3801G designed for?
A: It is designed for data centre and large-scale multi-cloud environments that need very high throughput, high session scale and dynamic segmentation with VXLAN support.
