Fortinet FG-300E | Enterprise Next-Gen Firewall, 16x GE RJ45, 16x GE SFP

Fortinet FG-300E | Enterprise Next-Gen Firewall, 16x GE RJ45, 16x GE SFP

Authorised Fortinet Partner

FG-300E

Stock Status: Enquire

$4,572.60 inc. GST
$4,156.91 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

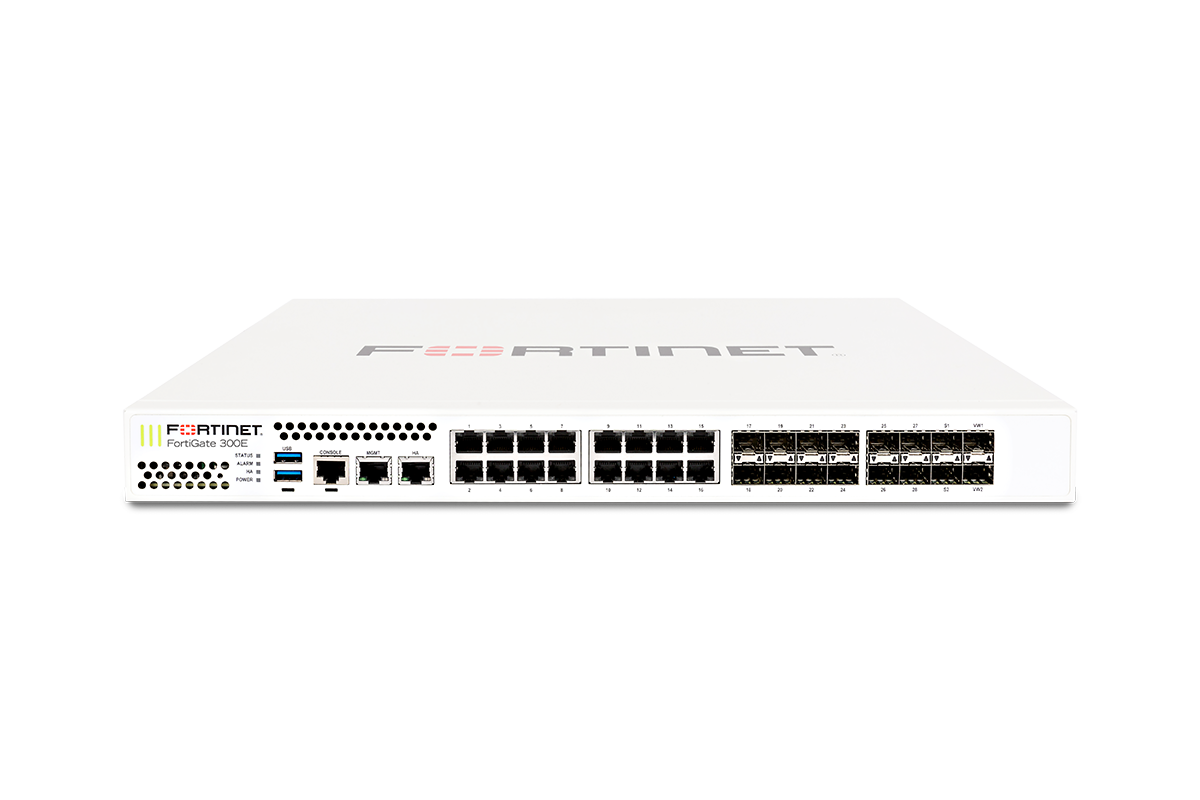

The Fortinet FortiGate 300E is a 1 RU enterprise next-generation firewall with 16 GE RJ45 ports, 16 GE SFP slots and 2 GE RJ45 management ports. This FG-300E model has no local storage. Built on Fortinet's purpose-built SPU architecture with NP6 and CP9 processors, it delivers up to 32 Gbps firewall throughput, 20 Gbps IPsec VPN throughput and 3 Gbps threat protection throughput, making it well suited to branch, campus edge and mid-sized enterprise network perimeters.

Running FortiOS, the FG-300E combines firewall, IPS, application control, VPN and malware protection in a single appliance, with support for FortiGuard security services bundles. It also acts as an integrated wireless controller and switch controller, managing up to 48 FortiSwitches and 512 FortiAPs, and supports Active-Active, Active-Passive and clustering high availability configurations.

Features

- Purpose-built SPU architecture with NP6 network processor and CP9 content processor for accelerated security and networking performance
- FortiOS security-driven networking with integrated firewall, IPS, application control, VPN and malware protection
- Supports FortiGuard security services bundles for threat intelligence
- Active-Active, Active-Passive and clustering high availability
- Optional hot-swappable redundant power supplies
- Integrated wireless controller and FortiSwitch management, up to 48 FortiSwitches and 512 FortiAPs
- Up to 2,000 gateway-to-gateway and 50,000 client-to-gateway IPsec VPN tunnels

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x GE RJ45 interfaces
- 16 x GE SFP slots
- 2 x GE RJ45 management ports
- 2 x USB ports and 1 x RJ45 console port
- Local storage: none (FG-300E)
- Included transceivers: 2 x SFP (SX 1 GE)
- SPU NP6 and CP9 hardware acceleration
- IPv4 and IPv6 firewall throughput: 32 / 32 / 20 Gbps (1518/512/64 byte UDP)
- Firewall latency: 3 μs (64 byte UDP)
- Firewall throughput: 30 Mpps
- IPS throughput: 5 Gbps
- NGFW throughput: 3.5 Gbps
- Threat protection throughput: 3 Gbps
- Concurrent sessions: 4 million (TCP)
- New sessions per second: 300,000 (TCP)
- IPsec VPN throughput: 20 Gbps (512 byte)
- SSL-VPN throughput: 2.5 Gbps
- SSL inspection throughput: 3.9 Gbps (IPS, avg. HTTPS)
- Firewall policies: 10,000
- Virtual domains: 10 default / 10 maximum
- Form factor: 1 RU (44.45 x 432 x 380 mm)
- Weight: 7.3 kg
- Power consumption: 90 W average, 173 W maximum
- Power source: 100-240V, 50-60Hz
- Operating temperature: 0-40°C
- Compliance: FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

FAQs

Q: How does the FG-300E differ from the FG-301E?
A: The FG-300E has no local storage. The FG-301E adds 2 x 240 GB SSD for local logging and reporting. Interfaces and throughput figures are otherwise the same.

Q: What port configuration does the FortiGate 300E have?
A: It provides 16 x GE RJ45 interfaces, 16 x GE SFP slots and 2 x GE RJ45 management ports, plus 2 USB ports and 1 RJ45 console port.

Q: What throughput can the FG-300E deliver?
A: It delivers up to 32 Gbps firewall throughput, 5 Gbps IPS, 3.5 Gbps NGFW, 3 Gbps threat protection and 20 Gbps IPsec VPN throughput.

Q: Does the FG-300E include SFP transceivers?
A: Yes, it ships with 2 x SFP (SX 1 GE) transceivers. Additional SFP modules can be fitted to the remaining slots as required.

Q: Does it support high availability?
A: Yes. It supports Active-Active, Active-Passive and clustering high availability configurations, and optional hot-swappable redundant power supplies are available.

Q: Can the FG-300E manage FortiSwitch and FortiAP devices?
A: Yes. It includes an integrated wireless controller and switch controller, supporting up to 48 FortiSwitches and 512 FortiAPs.
