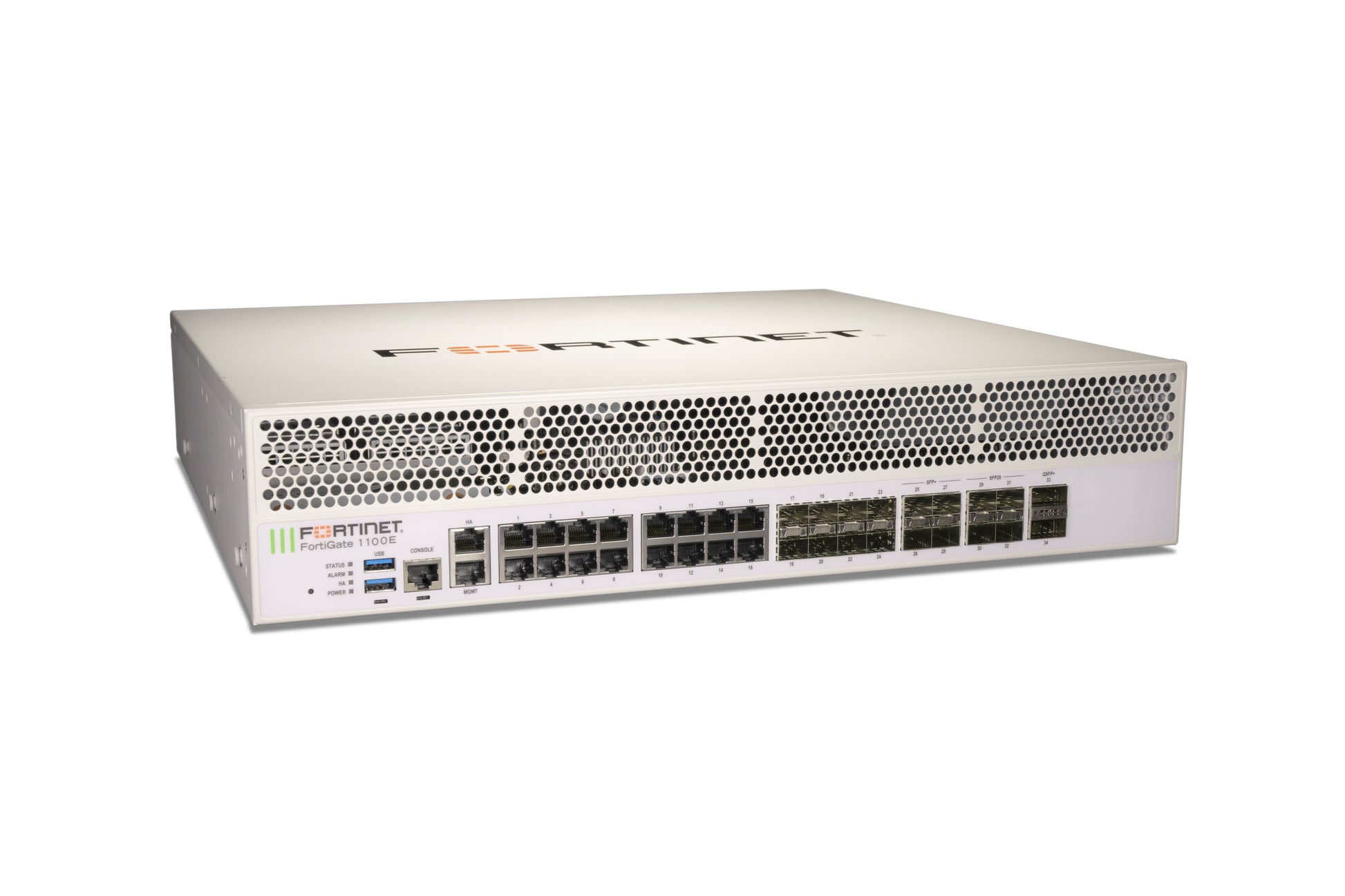

• White Fortinet FortiGate 1100E with perforated front panel and Ethernet ports
1 1

Fortinet

Fortinet FG-1100E-USG | Next-Gen Firewall, 2x 40GE QSFP+, 2 AC PSU, USG

Fortinet FG-1100E-USG | Next-Gen Firewall, 2x 40GE QSFP+, 2 AC PSU, USG

Authorised Fortinet Partner

FG-1100E-USG

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FG-1100E-USG is a 2RU next-generation firewall built for the core of the data network, combining 2x 40GE QSFP+, 4x 25GE SFP28, 4x 10GE SFP+, 8x GE SFP and 18x GE RJ45 interfaces. It is the USG (US government/TAA) edition, supplied with two AC power supplies and no onboard SSD, which sets it apart from other FortiGate 1100E variants.

SPU NP6 and CP9 hardware acceleration delivers up to 80 Gbps firewall throughput (1518 byte UDP) alongside 12.5 Gbps IPS and 9.8 Gbps NGFW throughput. The platform runs FortiOS with Security Fabric integration and supports Active-Active, Active-Passive and clustering high availability for data centre edge, campus core and high-speed segmentation deployments.

Features

- NP6 network processor and CP9 content processor hardware acceleration
- Dense mix of 40GE, 25GE, 10GE, GE SFP and GE RJ45 interfaces for high-speed core segmentation
- Runs FortiOS with Security Fabric integration
- Redundant AC power supplies for resilient operation
- Active-Active, Active-Passive and clustering high availability
- Up to 250 virtual domains for multi-tenant or segmented deployments
- Supports management of up to 196 FortiSwitches

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2x 40GE QSFP+ slots
- 4x 25GE SFP28 / 10GE SFP+ / GE SFP slots
- 4x 10GE SFP+ / GE SFP slots
- 8x GE SFP slots
- 16x GE RJ45 ports plus 2x GE RJ45 management/HA ports
- 1x console port, 1x USB client, 2x USB server ports
- Firewall throughput 80 / 80 / 45 Gbps (1518 / 512 / 64 byte UDP)
- IPS throughput 12.5 Gbps
- NGFW throughput 9.8 Gbps
- Threat protection throughput 7.1 Gbps
- IPsec VPN throughput 48 Gbps (512 byte)
- SSL inspection throughput 10 Gbps
- 8 million concurrent sessions, 500,000 new sessions per second
- Firewall latency 2.76 μs (64 byte UDP)
- SPU NP6 and CP9 hardware acceleration
- 2 AC power supplies, 100-240V AC, 50/60 Hz
- No onboard storage
- Includes 2x SFP SX 1GE transceivers
- Form factor: 2RU rack mount
- Dimensions (H x W x L): 88.9 x 443 x 447.4 mm
- Operating temperature: 0 to 40 C

FAQs

Q: What does the USG suffix on the FG-1100E-USG mean?
A: The USG suffix denotes the US government/TAA-compliant edition of the FortiGate 1100E. It is supplied with two AC power supplies and no onboard SSD.

Q: What interfaces does the FortiGate 1100E provide?
A: It provides 2x 40GE QSFP+ slots, 4x 25GE SFP28 slots, 4x 10GE SFP+ slots, 8x GE SFP slots and 18x GE RJ45 ports, including 2 dedicated management/HA ports.

Q: Does this model include transceivers?
A: Two SFP SX 1GE transceivers are included. Optics for the 40GE, 25GE and 10GE slots are purchased separately.

Q: How many power supplies does it ship with?
A: This SKU includes two AC power supplies rated for 100-240V AC, 50/60 Hz, providing redundant power.

Q: Does this unit have onboard storage for local logging?
A: No. This SKU has no onboard SSD, so logging is typically sent to FortiAnalyzer, FortiCloud or another external log server.

Q: What high availability modes does the FG-1100E-USG support?
A: It supports Active-Active, Active-Passive and clustering high availability configurations, using the dedicated management/HA ports.
