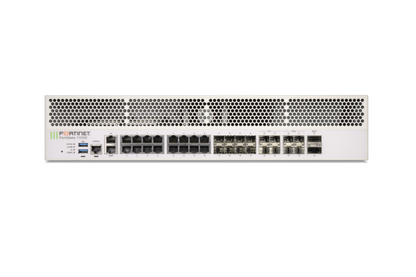

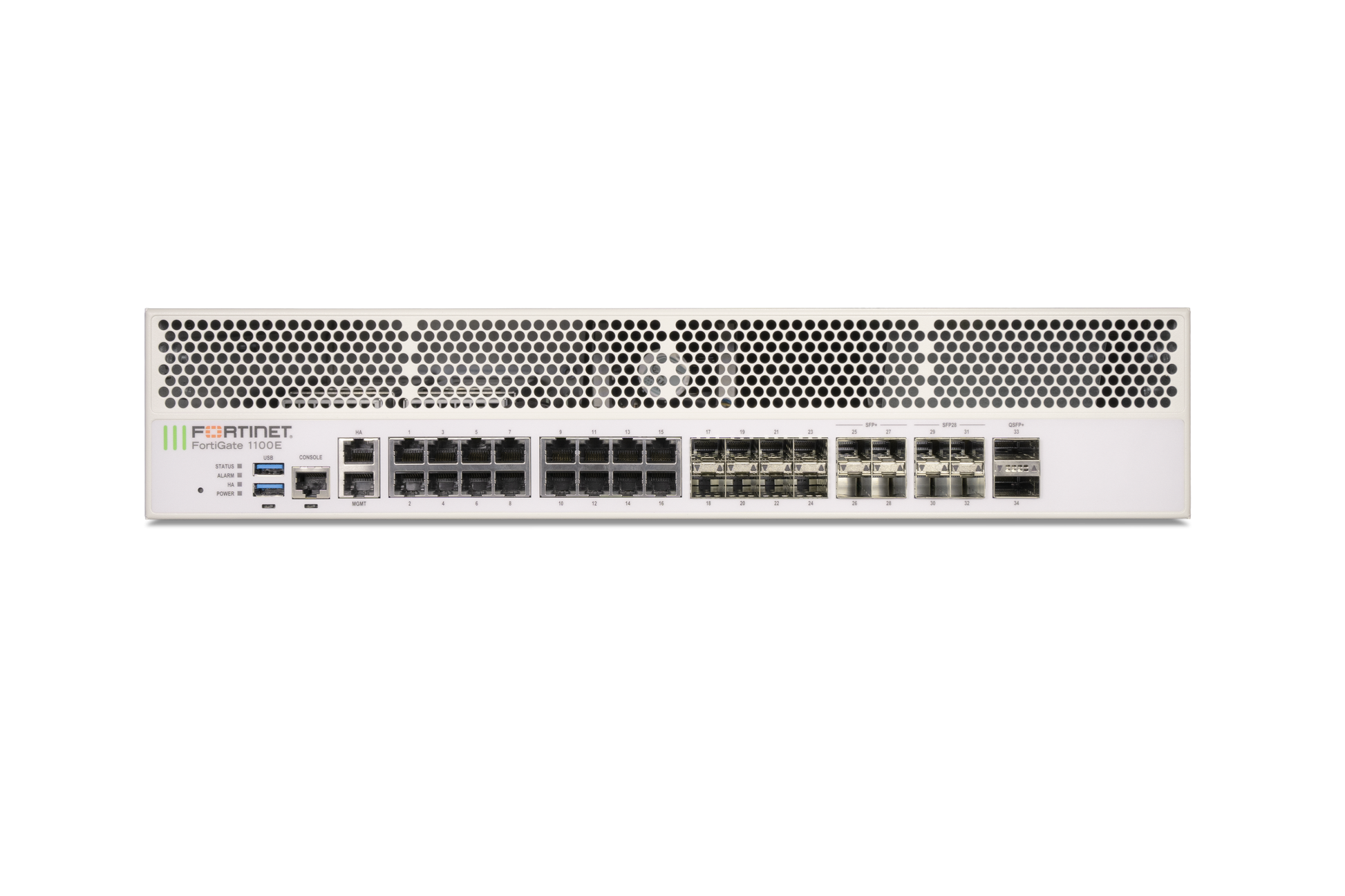

• White Fortinet FG-6025F switch with perforated panel and Ethernet ports

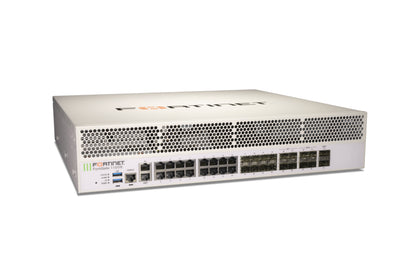

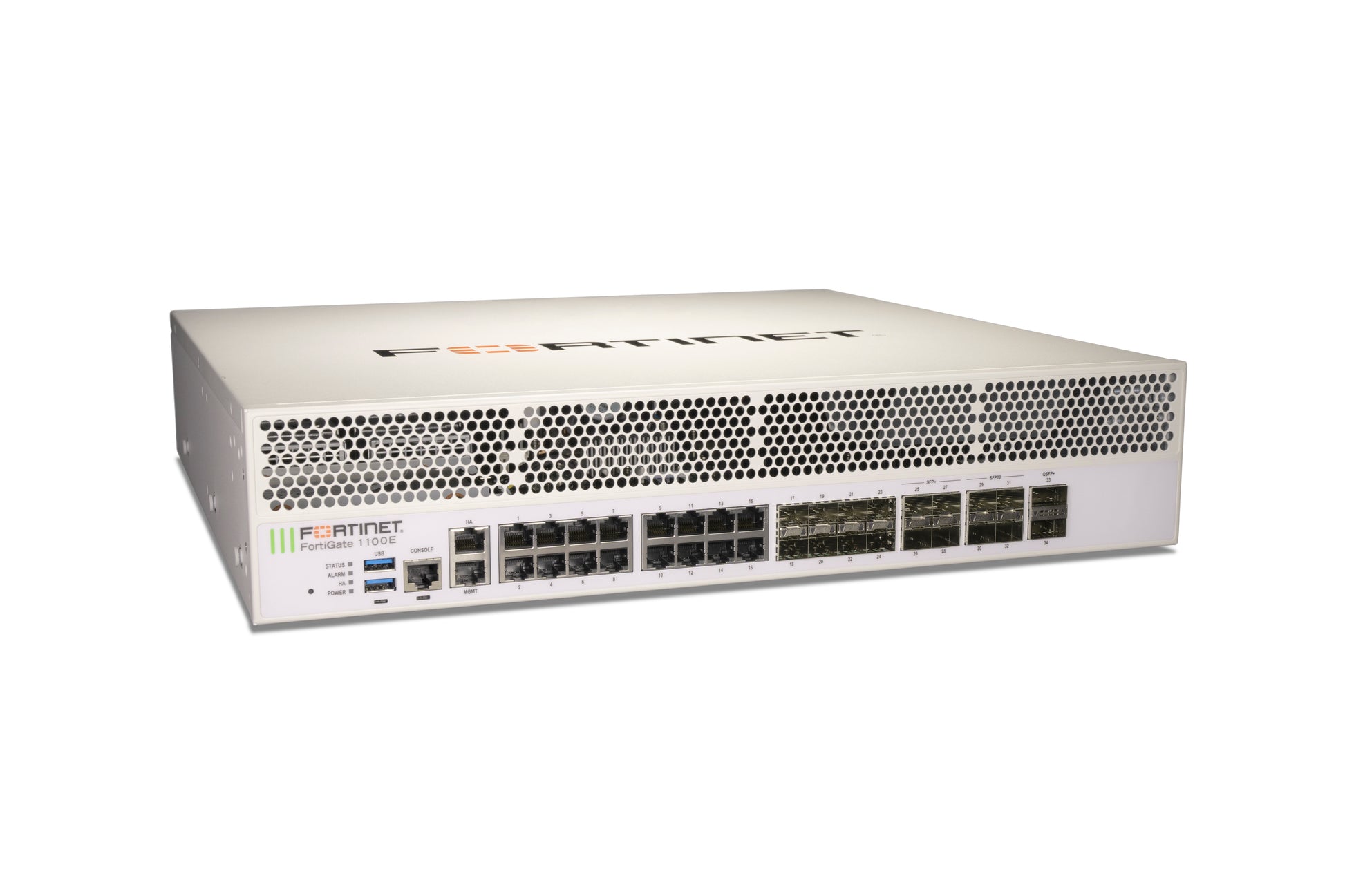

  • White Fortinet FortiGate 1100E-DC-USG with perforated front and ports
1 2

Fortinet

Fortinet FG-1100E-DC-USG | FortiGate 1100E-DC Next-Gen Firewall, 9.8 Gbps NGFW, Dual DC PSU, USG

Fortinet FG-1100E-DC-USG | FortiGate 1100E-DC Next-Gen Firewall, 9.8 Gbps NGFW, Dual DC PSU, USG

Authorised Fortinet Partner

FG-1100E-DC-USG

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiGate 1100E-DC USG is a 2RU enterprise next-generation firewall built for high-throughput data centre edge and large campus perimeters, delivering 9.8 Gbps NGFW throughput and up to 80 Gbps of IPv4 firewall throughput. This variant is powered by two hot-swappable -48V DC power supplies in a 1+1 redundant arrangement, making it well suited to telco-style and DC-powered rack environments, and it is the USG (US government/TAA) variant with no onboard SSD storage.

SPU NP6 and CP9 hardware acceleration keeps security inspection fast, while a dense interface mix of 2x 40GE QSFP+, 4x 25GE SFP28, 4x 10GE SFP+, 8x GE SFP and 18x GE RJ45 ports provides flexible connectivity to core, distribution and WAN links. Active-Active and Active-Passive high availability clustering, SD-WAN, and Security Fabric integration make it a strong fit for consolidating networking and security on a single platform.

Features

- SPU NP6 and CP9 hardware acceleration for high-throughput inspection
- Dual hot-swappable DC power supplies with 1+1 redundancy
- High port density across 40GE, 25GE, 10GE, GE SFP and GE RJ45 interfaces
- Active-Active, Active-Passive and clustering high availability
- Security Fabric integration and SD-WAN support
- FortiGuard security services subscriptions available for IPS, anti-malware and web security
- Manages up to 196 FortiSwitches and 4096 FortiAPs
- USGv6/IPv6 certified, US government/TAA variant

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2 x 40GE QSFP+ slots
- 4 x 25GE SFP28 / 10GE SFP+ / GE SFP slots
- 4 x 10GE SFP+ / GE SFP slots
- 8 x GE SFP slots
- 16 x GE RJ45 ports plus 2 x GE RJ45 management/HA ports (18 RJ45 total)
- 1 x console port, 1 x USB client and 2 x USB server ports
- No onboard storage
- 2 x SFP SX 1GE transceivers included
- IPS throughput: 12.5 Gbps
- NGFW throughput: 9.8 Gbps
- Threat Protection throughput: 7.11 Gbps
- IPv4 firewall throughput (1518/512/64 byte UDP): 80 / 80 / 45 Gbps
- Firewall latency (64 byte UDP): 2.76 microseconds
- Concurrent sessions (TCP): 8 million
- New sessions per second (TCP): 500,000
- IPsec VPN throughput (512 byte): 48 Gbps
- SSL-VPN throughput: 8.4 Gbps
- SSL inspection throughput (IPS, avg. HTTPS): 10 Gbps
- Virtual domains (default / maximum): 10 / 250
- Power input: 2 x -48V DC, hot-swappable, 1+1 redundant
- Power consumption (average / maximum): 217 W / 336 W
- Form factor: 2RU rack mount
- Dimensions (H x W x L): 88.9 x 443 x 447.4 mm
- Weight: 11.3 kg
- Operating temperature: 0 to 40 C
- Compliance: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6 certified

FAQs

Q: What power does the FG-1100E-DC-USG use?
A: It uses two hot-swappable -48V DC power supplies in a 1+1 redundant arrangement, with a maximum DC current of 11.5A. It is intended for DC-powered racks rather than standard AC mains.

Q: What interfaces does this firewall provide?
A: It provides 2x 40GE QSFP+, 4x 25GE SFP28 (also supporting 10GE SFP+ or GE SFP), 4x 10GE SFP+ (also supporting GE SFP), 8x GE SFP, and 18x GE RJ45 ports including 2 management/HA ports.

Q: Does it include onboard storage?
A: No. This variant has no onboard SSD storage.

Q: What does the USG suffix mean?
A: USG denotes the US government/TAA variant of the FG-1100E-DC. It carries the same hardware platform with the TAA-compliant designation.

Q: Are transceivers included?
A: Two SFP SX 1GE transceivers are included. Other SFP, SFP+, SFP28 and QSFP+ modules are sold separately.

Q: Does it support high availability?
A: Yes. It supports Active-Active and Active-Passive high availability as well as clustering, with dedicated management/HA ports.
