Fortinet FAD-320F | FortiADC 320F Application Delivery Controller, 10 Gbps, 128GB SSD

Fortinet FAD-320F | FortiADC 320F Application Delivery Controller, 10 Gbps, 128GB SSD

Authorised Fortinet Partner

FAD-320F

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

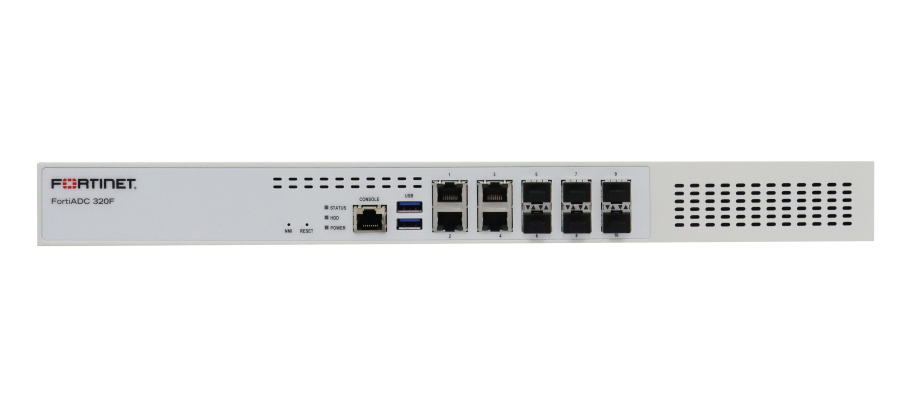

The Fortinet FAD-320F FortiADC 320F is a 1U rack-mount application delivery controller delivering Layer 4 and Layer 7 load balancing at 10 Gbps, with SSL offloading and DDoS protection for high-volume enterprise application traffic. This model combines 4x GE RJ45, 4x GE SFP and 2x 10GbE SFP+ ports with a 128GB SSD, so a single appliance covers copper, fibre and 10G uplink connectivity.

Support for up to 25 virtual domains, OSPF and BGP routing, IPv4 and IPv6, and SAML, LDAP, RADIUS and Kerberos authentication makes it suited to multi-tenant data centre and application hosting environments. Front-to-back airflow and standard rack mounting allow straightforward deployment alongside existing server and network infrastructure.

Features

- Layer 4 and Layer 7 server load balancing
- SSL/TLS offloading with TLS 1.3 and 256-bit AES
- DDoS attack prevention
- NAT support
- Built-in ASIC acceleration
- OSPF and BGP routing protocols
- SAML, LDAP, RADIUS and Kerberos authentication
- Management via HTTPS, SSH, CLI and SNMP
- IPv4 and IPv6 support
- 25 virtual domains for multi-tenant segmentation

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x GE RJ45 ports
- 4 x GE SFP ports
- 2 x 10GbE SFP+ ports
- 1 x 128GB SSD storage
- Layer 4 throughput: 10 Gbps
- Layer 7 throughput: 10 Gbps
- SSL bulk encryption throughput: 5 Gbps
- Compression throughput: 8 Gbps
- Layer 4 connections per second: 350,000
- Layer 4 HTTP requests per second: 1,200,000
- Concurrent Layer 4 connections: 1,200,000
- Layer 7 connections per second: 12,000
- SSL connections per second (2K keys): 6,000
- Virtual domains: 25
- Form factor: 1U rack-mount, front-to-back airflow
- Dimensions: 43.2 cm W x 38 cm D x 4.445 cm H
- Weight: 5.5 kg
- Operating temperature: 0-40 °C
- Operating humidity: 10-85% RH non-condensing

FAQs

Q: What throughput does the FortiADC 320F support?
A: It delivers 10 Gbps of Layer 4 and Layer 7 throughput, 5 Gbps of SSL bulk encryption throughput and 8 Gbps of compression throughput.

Q: What network ports does the FAD-320F include?
A: It provides 4x GE RJ45 ports, 4x GE SFP ports and 2x 10GbE SFP+ ports, along with a 128GB SSD for on-board storage.

Q: Does the FortiADC 320F support SSL offloading?
A: Yes. It offloads SSL/TLS processing from back-end servers and supports TLS 1.3 and 256-bit AES encryption.

Q: Can the FortiADC 320F be partitioned for multiple applications or tenants?
A: Yes. It supports up to 25 virtual domains, allowing traffic and policies to be separated across applications or business units.

Q: What routing and authentication protocols are supported?
A: It supports OSPF and BGP routing, and SAML, LDAP, RADIUS and Kerberos authentication, in both IPv4 and IPv6 environments.

Q: What is the form factor and cooling design?
A: It is a 1U rack-mount appliance with front-to-back airflow, measuring 43.2 cm wide, 38 cm deep and 4.445 cm high, and weighing 5.5 kg.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
