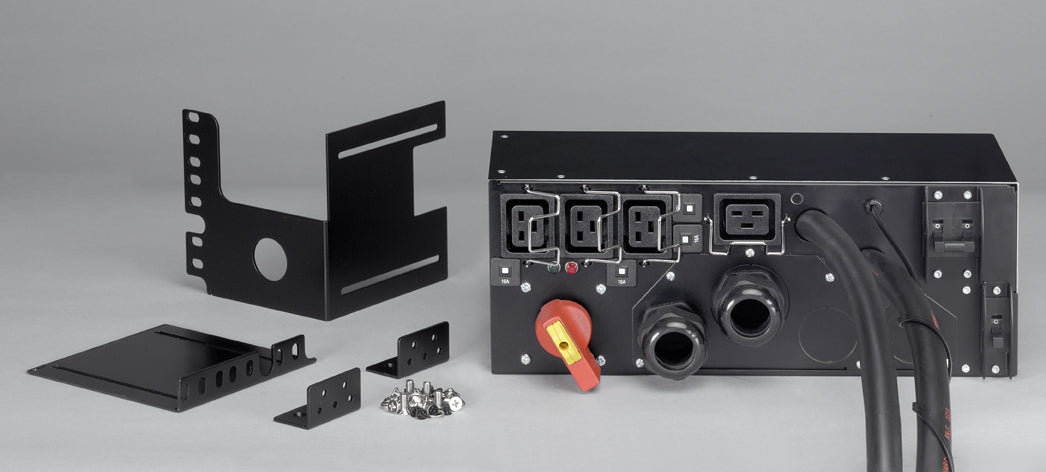

• Eaton MBP11KI HotSwap MBP 11000i PDU black metal rack with power outlets and red emergency switch
1 1

Eaton

Eaton MBP11KI | HotSwap MBP 11000i Maintenance Bypass PDU, 11000VA, 4x C19

Eaton MBP11KI | HotSwap MBP 11000i Maintenance Bypass PDU, 11000VA, 4x C19

Authorised Eaton Partner

MBP11KI

Stock Status: Enquire

$1,382.06 inc. GST
$1,256.42 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.
End of life
This item has been replaced by MBP11KiG2.

Description

The Eaton HotSwap MBP 11000i is a single-phase maintenance bypass PDU rated at 11000VA, built to let a UPS be serviced, upgraded or swapped without interrupting power to the connected load. It uses a hardwired screw-terminal input for 200-240V supply and provides 4 x C19 outlets plus 1 hardwired output, with a rotary bypass switch and LED indication for clear status at a glance.

The unit is compatible with UPSs from Eaton or other suppliers, and when paired with a 9PX or 9SX UPS the bypass status is shown on the UPS LCD screen. It can be installed at the back, side or top of the UPS, or rack-mounted in 3U of a 19-inch rack, and includes a cable locking system and rack-mounting kit.

Features

- Maintenance bypass lets the UPS be hot-swapped or upgraded without interrupting power to the load
- Compatible with UPSs from Eaton or other suppliers
- With a 9PX or 9SX UPS, bypass status is shown on the UPS LCD screen
- Flexible installation at the back, side or top of the UPS, or rack-mounted
- Rotary bypass switch with LED indication
- Retaining clips on the 16 A IEC sockets
- Cable locking system included

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Catalogue number: MBP11KI
- Model: HotSwap MBP 11000i
- Rating: 11000VA
- Input voltage: 200-240V, single-phase
- Input connection: hardwired screw terminal block
- Outlets: 4 x C19 plus 1 hardwired output
- Form factor: 3U, 19-inch rack mount, horizontal
- Dimensions (D x H x W): 185 x 270 x 410 mm
- Weight: 5.66 kg
- Operating temperature: 0 to 40 C
- Colour: Black
- Switchable: No, no SNMP, Ethernet or serial interface
- Package contents: maintenance bypass, cable locking system, rack-mounting kit, user manual
- Compliance: CE marked

FAQs

Q: What does the HotSwap MBP 11000i do?
A: It is an external maintenance bypass that allows a connected UPS to be serviced, upgraded or replaced without interrupting power to the load.

Q: Which UPSs is it compatible with?
A: It is suitable for single-phase UPSs up to 11 kVA, including Eaton 9PX and 9SX models, and is compatible with UPSs from Eaton or other suppliers.

Q: How is the input connected?
A: The input is hardwired via a screw terminal block for 200-240V single-phase supply, so it needs to be wired in by a qualified electrician.

Q: What outlets does it provide?
A: It provides 4 x C19 outlets with retaining clips, plus 1 hardwired output connection.

Q: How is it mounted?
A: It is a 3U unit for 19-inch racks, and can also be installed at the back, side or top of the UPS. A rack-mounting kit is included.

Q: Will the UPS show when the bypass is active?
A: When used with a 9PX or 9SX UPS, the bypass status is displayed on the UPS LCD screen. The unit also has LED indication and a rotary bypass switch.
