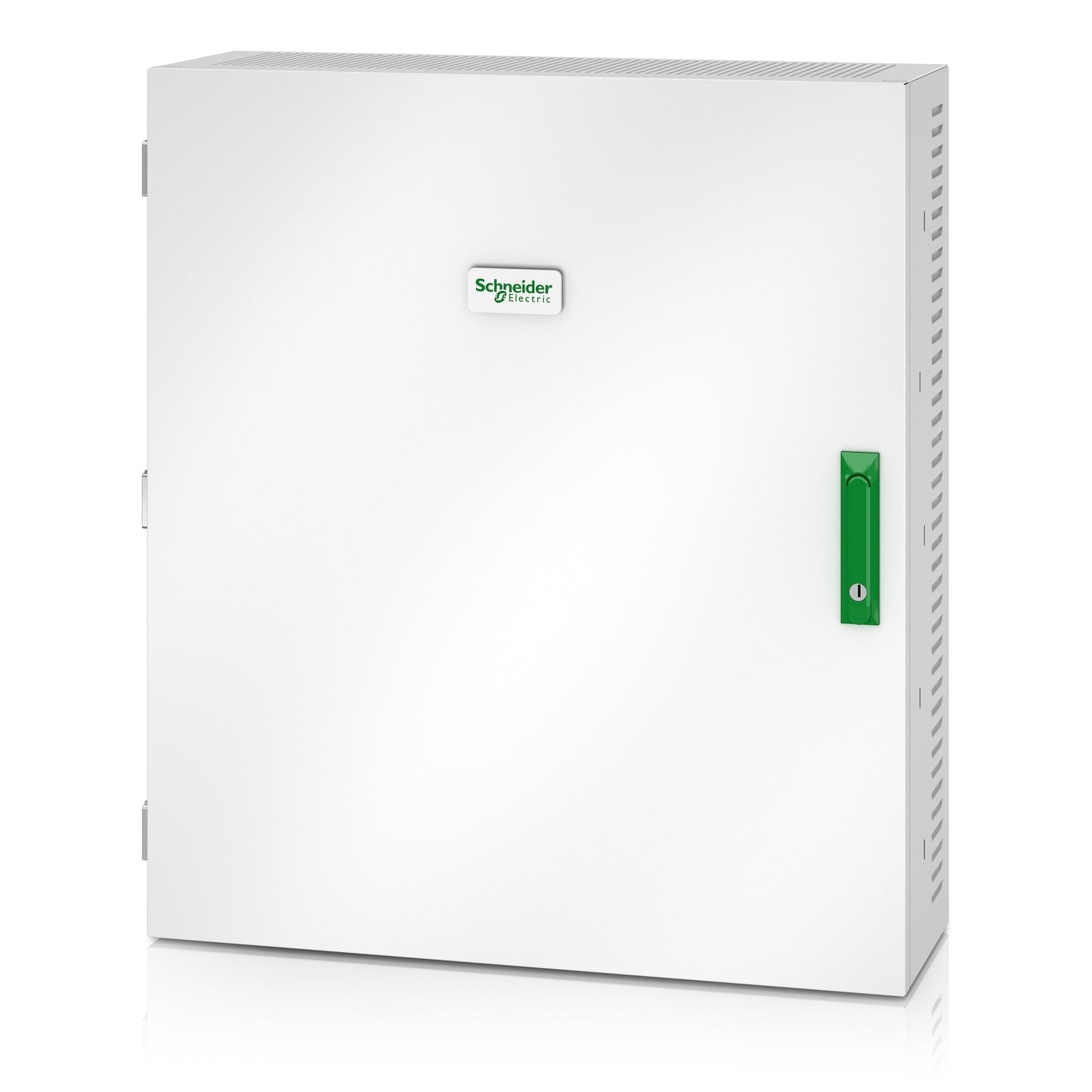

• APC GVSBPAR40K50H white Schneider Electric panel with green handle, 400V
1 1

APC

APC GVSBPAR40K50H | Parallel Maintenance Bypass Panel, 2 UPS, 40-50kW, 400V, Wallmount

APC GVSBPAR40K50H | Parallel Maintenance Bypass Panel, 2 UPS, 40-50kW, 400V, Wallmount

Authorised APC Partner

GVSBPAR40K50H

Stock Status: Enquire

$6,661.62 inc. GST
$6,056.02 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC GVSBPAR40K50H is a wall-mounted parallel maintenance bypass panel for two 40-50kW, 400V UPS units. It lets you isolate either UPS for service, testing or replacement without interrupting power to the connected critical load, making it a practical addition to Galaxy VS and Easy UPS 3S deployments.

The panel is designed for two-unit parallel configurations in server rooms and small data centres where uptime matters. Its wall-mount design keeps the floor footprint clear, and it is compatible with Galaxy VS models such as the GVSUPS40KHS and GVSUPS50KHS as well as Easy UPS 3S systems.

Features

- Allows maintenance or replacement of UPS units without dropping the critical load
- Supports parallel configuration of two UPSs
- Wall-mount design saves floor space
- Suited to 40-50kW, 400V Galaxy VS and Easy UPS 3S systems

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Type: Parallel maintenance bypass switch for 2 UPSs
- Rated for 40-50kW, 400V systems
- Compatible with Galaxy VS (GVSUPS40KHS, GVSUPS50KHS) and Easy UPS 3S
- Mounting: Wall-mount
- Colour: White
- Dimensions (H x W x D): 850 x 750 x 250 mm
- Weight: 50 kg
- Operating temperature: 0 to 40 °C
- Storage temperature: -25 to 55 °C
- Package dimensions (W x H x D): 865 x 500 x 1200 mm
- Package weight: 75 kg
- RoHS compliant

FAQs

Q: Which UPS systems is the APC GVSBPAR40K50H compatible with?
A: It is designed for APC Galaxy VS units such as the GVSUPS40KHS and GVSUPS50KHS, and for Easy UPS 3S systems, in 40-50kW 400V configurations.

Q: How many UPS units does this bypass panel support?
A: It is a parallel maintenance bypass panel for two UPS units.

Q: What does a maintenance bypass panel do?
A: It allows one or both UPS units to be isolated for servicing or replacement while the connected load continues to receive power.

Q: How is the panel mounted?
A: It is a wall-mount unit measuring 850 x 750 x 250 mm (H x W x D) and weighing 50 kg, so ensure the wall can support the load.

Q: What power rating and voltage does it support?
A: It is rated for 40-50kW systems operating at 400V.

Q: What operating temperature range does it support?
A: The panel operates in ambient temperatures from 0 to 40 °C.
