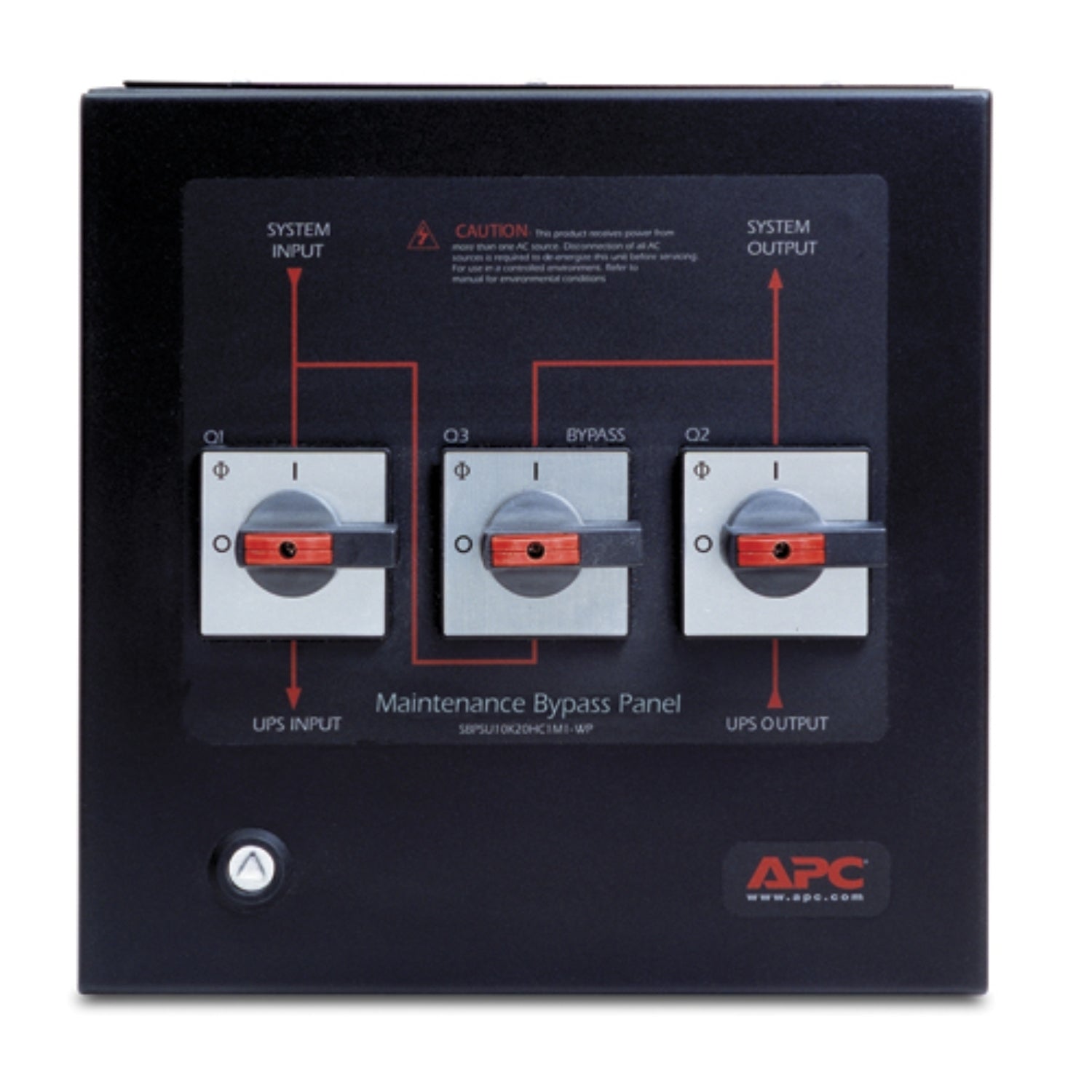

• APC SBPSU10K20HC1M1-WP black maintenance bypass panel with silver toggles
1 1

APC

APC SBPSU10K20HC1M1-WP | Smart-UPS VT Maintenance Bypass Panel, 10-20kVA, 400V 3PH, Wallmount

APC SBPSU10K20HC1M1-WP | Smart-UPS VT Maintenance Bypass Panel, 10-20kVA, 400V 3PH, Wallmount

Authorised APC Partner

SBPSU10K20HC1M1-WP

Stock Status: Enquire

$693.09 inc. GST
$630.08 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Smart-UPS VT Maintenance Bypass Panel is a wall-mounted external bypass for 10-20kVA, 400V three-phase Smart-UPS VT systems. It allows the UPS to be isolated for service, repair or replacement while connected loads stay powered, helping avoid downtime during planned maintenance.

This panel is rated for 400 VAC 3-phase input and output and supports loads up to 20,000 VA. The compact wall-mount enclosure suits server rooms and plant rooms where rack space is limited. It must be installed by a certified electrician and is supplied with an installation guide and user manual.

Features

- Lets the Smart-UPS VT be bypassed for maintenance without interrupting the load
- Wall-mount enclosure suits space-constrained server and plant rooms
- Compatible with Smart-UPS VT 10-20kVA 400V models
- 400V 3-phase input and output
- Must be installed by a certified electrician

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Load capacity: 20,000 VA (10-20kVA UPS range)
- Nominal input voltage: 400 VAC 3-phase
- Nominal output voltage: 400 VAC 3-phase
- Mounting: wallmount (not rackmount)
- Dimensions (W x H x D): 305 x 315 x 175 mm
- Weight: 7 kg
- Operating temperature: 0 to 40 °C
- Operating relative humidity: 0 to 95%
- Included: installation guide, user manual

FAQs

Q: Which UPS systems is this bypass panel designed for?
A: It is designed for Smart-UPS VT 10-20kVA 400V three-phase UPS systems.

Q: What does a maintenance bypass panel do?
A: It allows the UPS to be isolated for service, repair or replacement while connected loads remain powered from the mains supply path.

Q: Is this panel rackmount or wallmount?
A: It is a wallmount unit and is not rackmountable. Dimensions are 305 x 315 x 175 mm.

Q: What input and output voltage does it support?
A: The nominal input and output voltage is 400 VAC three-phase, with a load capacity of 20,000 VA.

Q: Does it need professional installation?
A: Yes. The panel must be installed by a certified electrician. An installation guide and user manual are included.

Q: Is there a newer replacement for this panel?
A: Yes. The Maintenance Bypass Panel GVSBPSU10K20H (Galaxy VS / Easy UPS 3S) is the replacement model.
