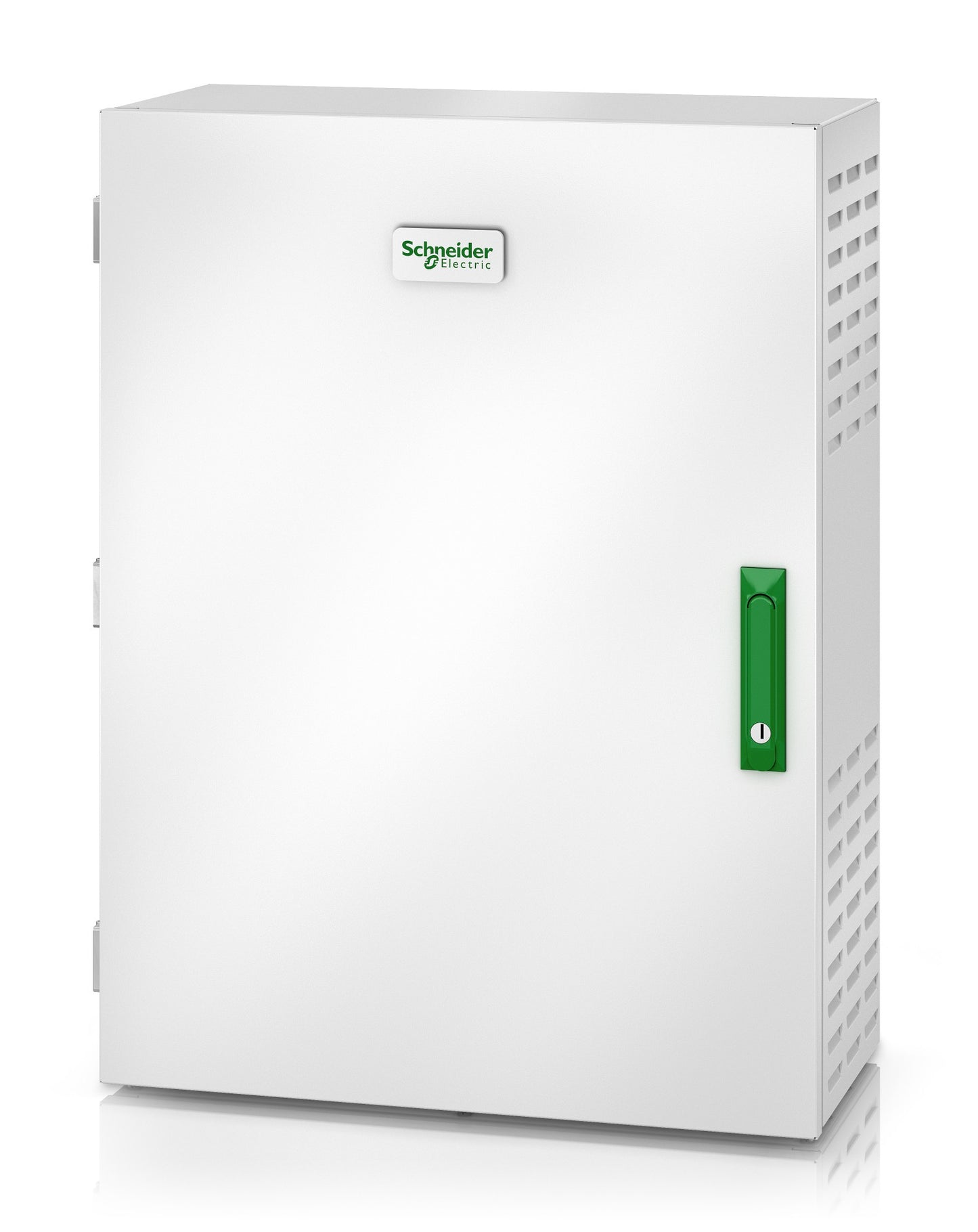

• APC GVSBPSU80K120H white Schneider Electric wallmount bypass panel with green handle and ventilation slots
1 1

APC

APC GVSBPSU80K120H | Galaxy VS Maintenance Bypass Panel, 80-120kW, 400V, Wallmount

APC GVSBPSU80K120H | Galaxy VS Maintenance Bypass Panel, 80-120kW, 400V, Wallmount

Authorised APC Partner

GVSBPSU80K120H

Stock Status: Enquire

$2,672.69 inc. GST
$2,429.72 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Galaxy VS Maintenance Bypass Panel is a single-unit, wall-mounted bypass panel rated for 80-120kW at 400V, 3-phase. It allows the UPS to be completely isolated during service operations, so technicians can work on the UPS while connected loads stay powered from the bypass path.

This panel is designed for Galaxy VS 80-120kW UPS systems and is also listed for Easy UPS 3S/3M. Its compact wall-mount enclosure measures 800 mm high by 600 mm wide by 280 mm deep, making it suitable for switch rooms and data centre plant areas where floor space is limited.

Features

- Complete isolation of the UPS during service operations
- Wall-mounted single-unit design
- Compatible with Galaxy VS 80-120kW UPS systems
- Also compatible with Easy UPS 3S/3M UPS systems

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Power rating: 80-120 kW
- Voltage: 400 V, 3-phase
- Configuration: Single unit
- Mount type: Wall mount
- Dimensions (H x W x D): 800 mm x 600 mm x 280 mm
- Net weight: 40 kg
- Shipping weight: 60 kg
- Colour: White
- Operating temperature: 0 to 40 C

FAQs

Q: Which UPS systems is this maintenance bypass panel compatible with?
A: It is designed for Galaxy VS 80-120kW UPS systems, such as the GVSUPS80KHS and GVSUPS100KHS, and is also listed for Easy UPS 3S/3M.

Q: What is the purpose of a maintenance bypass panel?
A: It lets the UPS be completely isolated during service operations, so the UPS can be maintained or replaced while the connected load continues to be supplied.

Q: What power rating and voltage does this panel support?
A: It supports a power range of 80-120 kW at 400 V, 3-phase.

Q: How is the panel mounted and what space does it need?
A: It is a wall-mounted single unit measuring 800 mm high by 600 mm wide by 280 mm deep, and it weighs 40 kg net.

Q: What is the operating temperature range?
A: The panel is rated for operation from 0 to 40 C.
