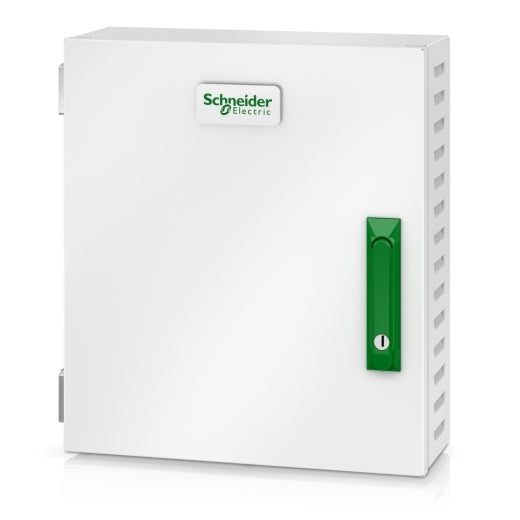

• APC GVSBPSU10K20H white Schneider Electric enclosure with green handle and vents
1 1

APC

APC GVSBPSU10K20H | Galaxy VS Maintenance Bypass Panel, 10-20kW 400V, Wallmount

APC GVSBPSU10K20H | Galaxy VS Maintenance Bypass Panel, 10-20kW 400V, Wallmount

Authorised APC Partner

GVSBPSU10K20H

In stock:1

$1,209.21 inc. GST
$1,099.28 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Galaxy VS maintenance bypass panel is a single-unit, wall-mounted bypass switch for 10-20kW 400V Galaxy VS and Easy UPS 3S systems. It allows the UPS to be completely isolated during service operations, so the connected load stays powered while maintenance is carried out.

Built with Schneider Electric breakers, the panel mounts to the wall to conserve floor and rack footprint. It measures 450 x 400 x 150 mm and weighs 12 kg, making it a compact addition to three-phase UPS installations that need a safe, repeatable maintenance bypass path.

Features

- Schneider Electric breakers
- Isolates the UPS during service operations
- Complete isolation of the UPS during maintenance without interrupting the load
- Wall mount installation conserves footprint
- For use with 10-20kW 400V Galaxy VS and Easy UPS 3S UPS systems

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Single unit maintenance bypass panel
- For 10-20kW 400V Galaxy VS and Easy UPS 3S UPS systems
- Voltage: 400V
- Wall mount
- Dimensions (H x W x D): 450 x 400 x 150 mm
- Net weight: 12 kg
- Colour: White
- Environmental certification: RoHS, REACH, Green Premium

FAQs

Q: Which UPS systems is this bypass panel designed for?
A: It is designed for 10-20kW 400V Galaxy VS and Easy UPS 3S UPS systems.

Q: What does a maintenance bypass panel do?
A: It lets the UPS be completely isolated for service or maintenance while the load continues to be supplied, avoiding an interruption to connected equipment.

Q: How is the panel mounted?
A: It is a wall-mount unit measuring 450 x 400 x 150 mm (H x W x D) and weighing 12 kg.

Q: Is this a single-unit or parallel bypass panel?
A: This is the single-unit version, intended for one UPS rather than a paralleled system.

Q: What type of breakers does the panel use?
A: The panel uses Schneider Electric breakers.

Q: What voltage and power range does it support?
A: It supports 400V systems in the 10-20kW range.
