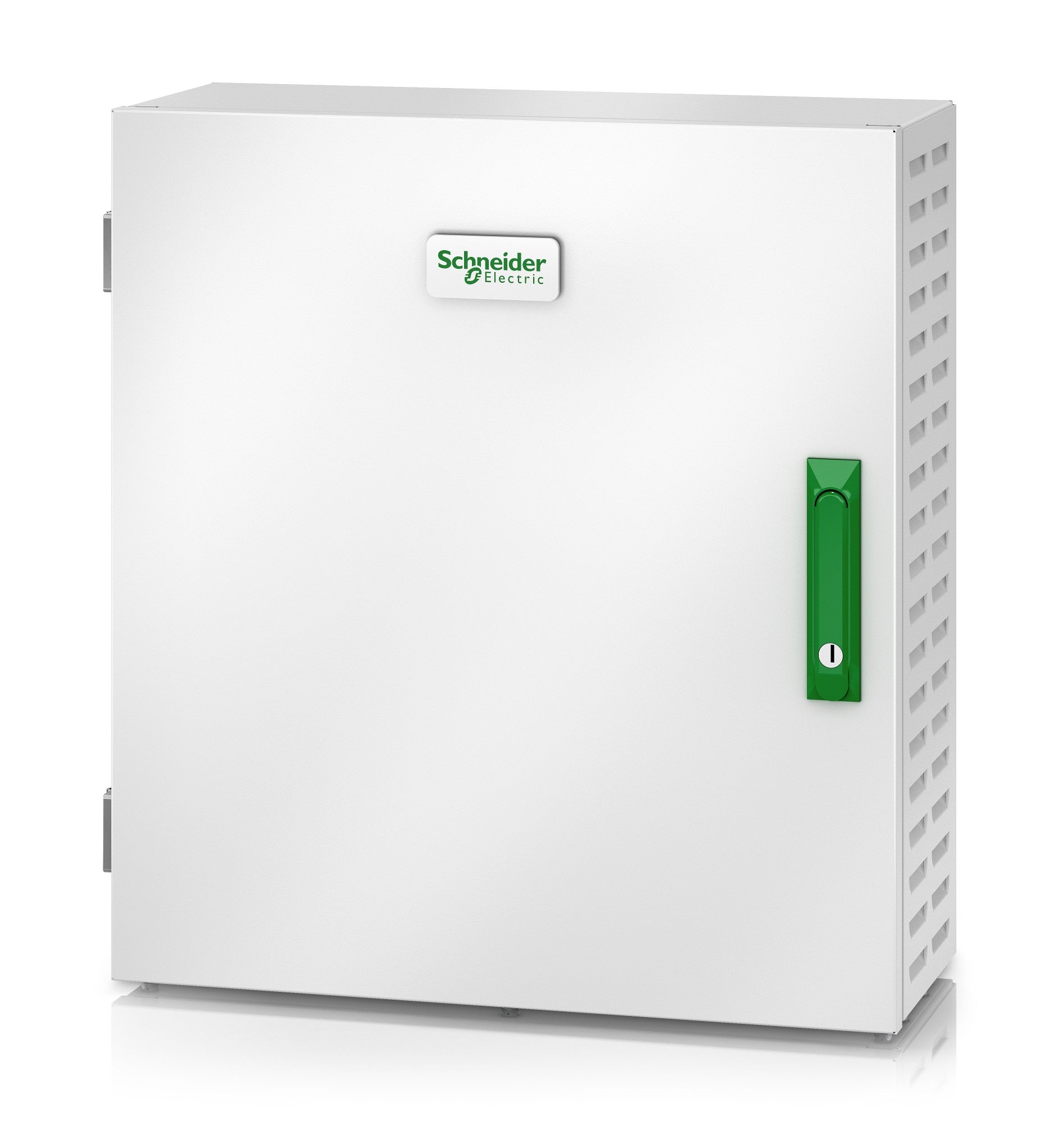

• APC GVSBPSU20K60H white Schneider Electric enclosure with green handle and vents
1 1

APC

APC GVSBPSU20K60H | Maintenance Bypass Panel, Single Unit, 20-60kW, 400V

APC GVSBPSU20K60H | Maintenance Bypass Panel, Single Unit, 20-60kW, 400V

Authorised APC Partner

GVSBPSU20K60H

Stock Status: Enquire

$1,831.97 inc. GST
$1,665.43 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC GVSBPSU20K60H is a single-unit maintenance bypass panel for 20-60kW, 400V wall-mount installation. It allows a Galaxy VS or Easy UPS 3S system to be fully isolated for servicing without cutting power to the connected load, making it a practical choice for data rooms and facilities where uptime matters.

The panel uses Schneider Electric breakers and mounts directly to the wall, which conserves floor space around the UPS. It measures 600 x 550 x 220 mm, weighs 25 kg and suits three-phase UPS connections within the 20-60kW range.

Features

- Complete isolation of the UPS during service operations
- Uses Schneider Electric breakers
- Wall-mount installation conserves floor footprint
- Compatible with Galaxy VS
- Compatible with Easy UPS 3S

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Type: Maintenance bypass panel, single unit
- Rated for 20-60kW, 400V UPS systems
- Compatible UPS: Galaxy VS and Easy UPS 3S, 3-phase connection
- Input voltage: 400 V AC
- Form factor: Wall-mount
- Dimensions (H x W x D): 600 x 550 x 220 mm
- Net weight: 25 kg
- Operating temperature: 0 to 40 C
- Colour: White
- Breakers: Schneider Electric

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Which UPS systems is the APC GVSBPSU20K60H compatible with?
A: It is designed for Galaxy VS and Easy UPS 3S systems with a 3-phase connection in the 20-60kW range at 400V.

Q: What is a maintenance bypass panel used for?
A: It lets the UPS be fully isolated for service or replacement without interrupting power to the connected load.

Q: How is this bypass panel installed?
A: It is wall-mounted. The panel measures 600 x 550 x 220 mm and weighs 25 kg, so ensure the wall and mounting hardware can support it.

Q: What voltage and power range does it support?
A: It supports 400 V AC systems rated from 20kW up to 60kW.

Q: What breakers does the panel use?
A: It is fitted with Schneider Electric breakers.

Q: What is the operating temperature range?
A: The panel operates in ambient temperatures from 0 to 40 C.
