Eaton

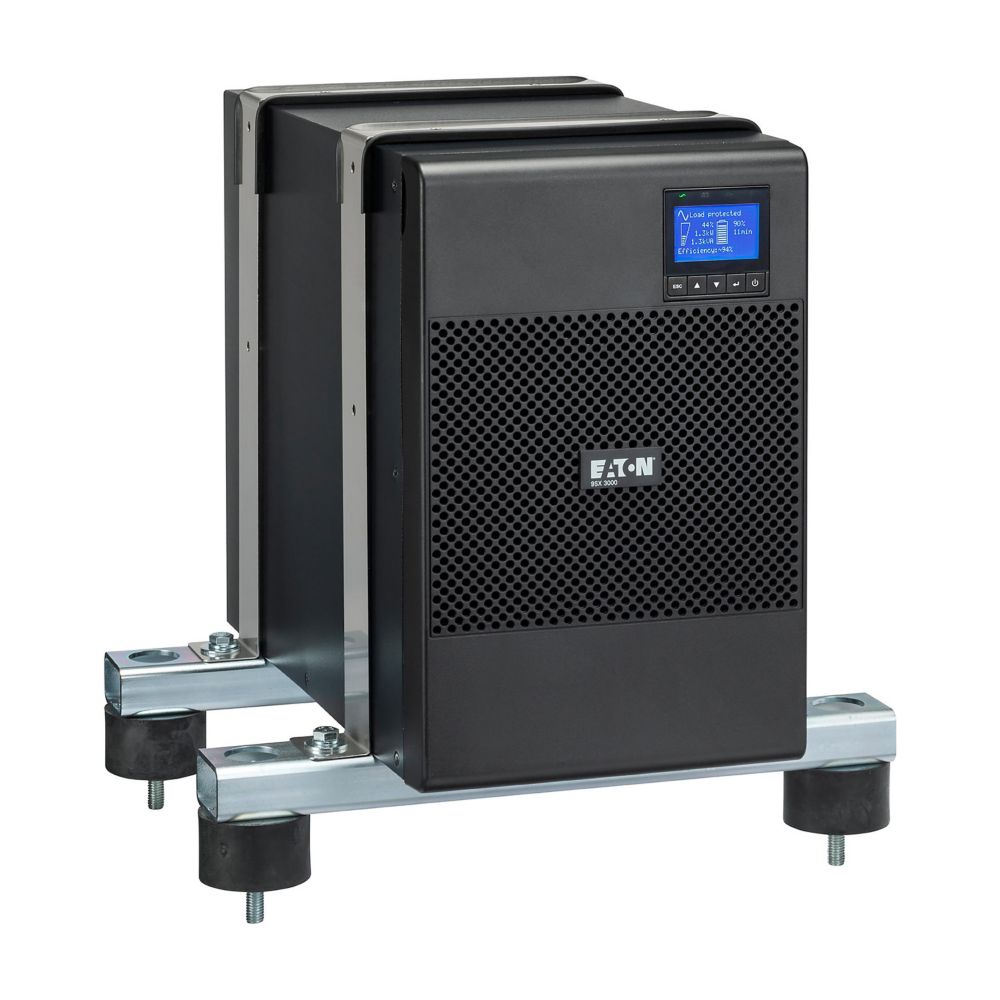

Eaton 9SX3000IM | 9SX Marine Online Tower UPS, 3000VA/2700W, C20, 8x C13, 1x C19

Eaton 9SX3000IM | 9SX Marine Online Tower UPS, 3000VA/2700W, C20, 8x C13, 1x C19

Authorised Eaton Partner

9SX3000IM

Stock Status: Enquire

$7,034.91 inc. GST
$6,395.37 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The 9SX Marine online double-conversion tower UPS delivers 3000VA/2700W of pure sine wave power protection for vessels and other demanding environments. It is DNV GL type approved and is supplied with mounting rails and vibration dampers. Power connects through a single IEC C20 (16A) input and is distributed through eight IEC C13 (10A) outlets and one IEC C19 (16A) outlet.

An internal bypass maintains service continuity if the UPS faults, and hot-swappable internal batteries simplify maintenance. Up to four extended battery modules can be added for long runtimes, and the graphical LCD, USB and RS232 ports, remote power off, output relay contacts and an optional network card slot support monitoring and integration with Eaton Intelligent Power Manager and Intelligent Power Protector software.

Features

- Double-conversion topology continuously regulates voltage and frequency
- DNV GL type approved, supplied with mounting rails and vibration dampers
- Internal bypass for service continuity if the UPS faults, with optional maintenance bypass
- Hot-swappable internal batteries
- Advanced Battery Management (ABM) technology extends battery life
- Multilingual graphical LCD with energy consumption metering
- Up to 4 optional extended battery modules for long runtimes
- Two switched outlet groups
- Compatible with Eaton Intelligent Power Manager and Intelligent Power Protector software
- Optional network or relay communication card slot

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Replacement Battery Finder

Technical Specifications

- Rating: 3000 VA / 2700 W
- Topology: on-line double-conversion with power factor correction
- Input connection: 1 x IEC C20 (16A), 1.8 m cord
- Output connections: 8 x IEC C13 (10A) + 1 x IEC C19 (16A)
- Nominal voltage: 200/208/220/230/240V (230V default)
- Input voltage range: 200-276 V without derating, 140-276 V with derating
- Input frequency: 40-70 Hz, 50/60 Hz autoselection, frequency converter mode
- Output waveform: sine wave
- Efficiency at max load: 92.4%
- Battery: 8 x 12 V / 9 Ah sealed lead-acid
- Typical backup time at 800W: 29 minutes (108 minutes with 1 EBM)
- Maximum extended battery modules: 4
- Communication: USB (HID), RS232, remote power off, output relay contacts
- Communication slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
- Network card included: No
- Dimensions (H x W x D): 346 x 214 x 412 mm
- Weight: 34 kg
- Certifications: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus, EAC, DNV GL

FAQs

Q: What input and output connections does the 9SX3000IM have?
A: It has one IEC C20 (16A) input with a 1.8 m cord, and outputs of eight IEC C13 (10A) plus one IEC C19 (16A).

Q: Is this UPS marine grade?
A: Yes. It is DNV GL type approved and supplied with mounting rails and vibration dampers.

Q: Can the runtime be extended?
A: Yes. It supports up to four extended battery modules. At 800W, typical backup time rises from 29 minutes to 108 minutes with one EBM and 421 minutes with four.

Q: Does it include a network management card?
A: No. It has a slot that accepts Network-M2, Network-MS, ModBus-MS or Relay-MS cards, which are purchased separately.

Q: Are the batteries user-replaceable?
A: The internal batteries are hot-swappable, so they can be replaced without shutting down the connected load.

Q: Is a rack mounting kit included?
A: No. This is a tower model and a rack mounting kit is not included.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Replacement Battery Finder

Looking for an Eaton UPS replacement battery?

Use the official Eaton UPS Battery Finder tool to identify compatible battery replacement kits and genuine Eaton battery cartridges for your specific UPS model in Australia.

Find My Replacement Battery
