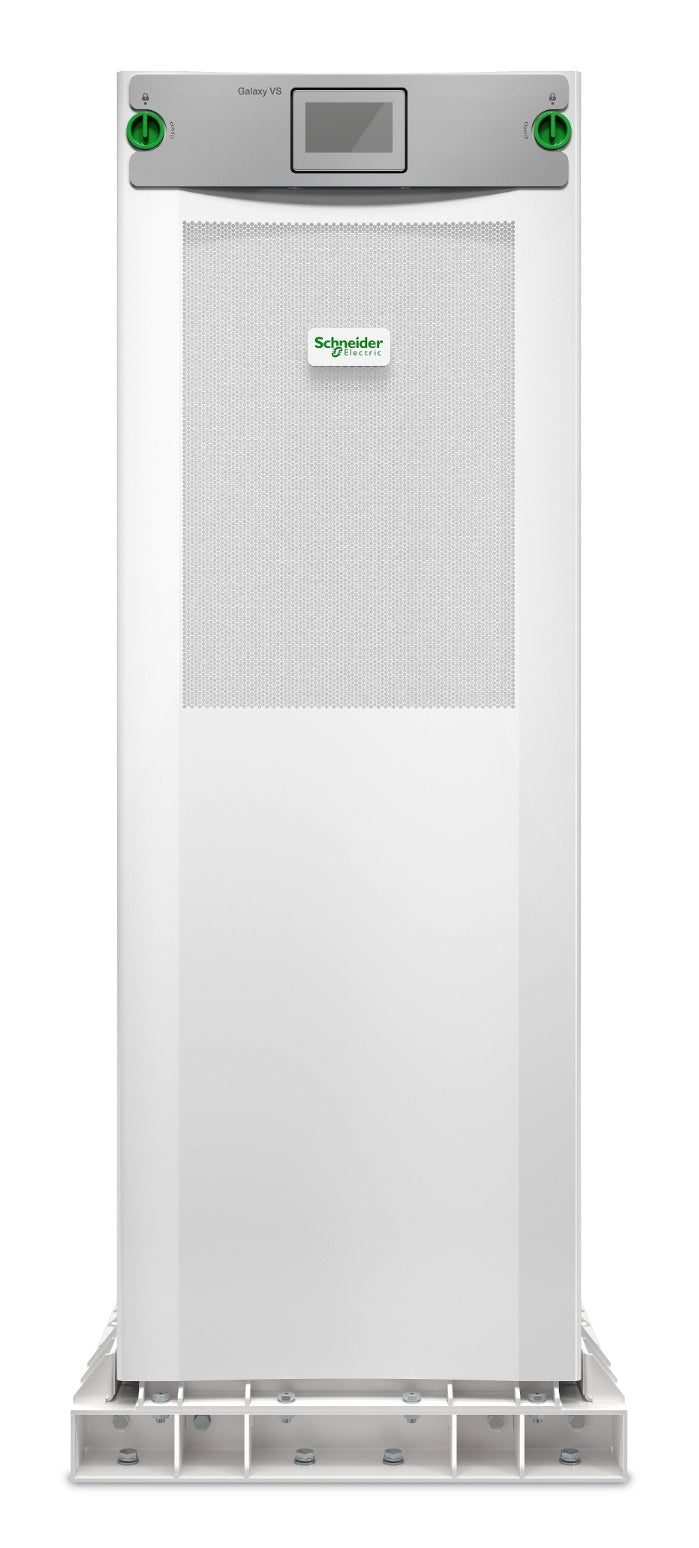

APC GVSUPS100KMHS | Galaxy VS Marine UPS, 100kW 400V, Halogen-Free, 5x8

APC GVSUPS100KMHS | Galaxy VS Marine UPS, 100kW 400V, Halogen-Free, 5x8

Authorised APC Partner

GVSUPS100KMHS

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Galaxy VS 100kW 400V marine UPS is a 3-phase double-conversion online UPS built for marine and offshore power protection. It is BV and DNV marine certified, uses halogen-free cables, and is supplied for external batteries, so it suits vessels and installations where fire safety and cable standards are strict. Start-up Service 5x8 is included with this configuration.

Rated at 100kW / 100kVA with an input voltage range of 380/400/415 V and a 400 V output, it delivers up to 99% efficiency in eConversion mode. The modular architecture supports parallel-capacity and parallel-redundant configurations, and an embedded network management card makes it ready for EcoStruxure IT monitoring. External battery cabinets are required and are not included.

Features

- Up to 99% efficient in eConversion mode
- Modular architecture for high availability
- Live Swap module replacement with no scheduled downtime
- Marine certified (BV and DNV) with halogen-free cables
- Parallel-capacity and parallel-redundant configurations
- Embedded network management card, EcoStruxure IT Expert ready
- 1-year Secure NMC Subscription included for future firmware updates
- Built-in backfeed protection
- Access to EcoStruxure software for resiliency and sustainability

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Power capacity: 100 kW / 100 kVA
- Input: 3-phase, 380/400/415 V AC
- Input voltage window: 340-460 V
- Output voltage: 400 V AC
- Topology: double-conversion online
- Efficiency: up to 99% in eConversion mode
- Battery: external battery cabinets required (none included)
- Cables: halogen-free
- Certification: marine certified (BV / DNV)
- Bundled service: Start-Up Service 5x8
- Included: dust filter, integrated network management
- Colour: White
- Weight: 250 kg

FAQs

Q: Does the GVSUPS100KMHS include batteries?
A: No. This model is supplied for external batteries only, so compatible external battery cabinets must be sourced separately.

Q: Is this UPS suitable for marine and offshore installations?
A: Yes. It is marine certified (BV and DNV) and uses halogen-free cables, which suits vessel and offshore power protection requirements.

Q: What input and output voltage does it use?
A: It accepts a 3-phase input of 380/400/415 V AC with a 340-460 V input window, and provides a 400 V AC output.

Q: What service is included with this SKU?
A: Start-Up Service 5x8 is bundled. A 1-year Secure NMC Subscription is also included, giving access to future firmware updates.

Q: Can multiple units be paralleled?
A: Yes. The Galaxy VS supports both parallel-capacity and parallel-redundant configurations for higher power or availability.

Q: How is the UPS monitored?
A: It has an embedded network management card and is EcoStruxure IT Expert ready, allowing remote monitoring and management.
