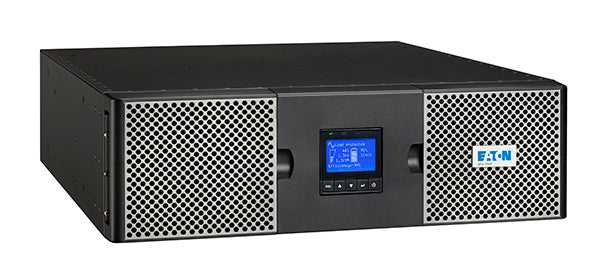

• Eaton 9PX3000IRTMR UPS with perforated front panels and blue display
1 1

Eaton

Eaton 9PX3000IRTMR Marine UPS | 3000VA 3000W Online Double Conversion | RT3U Rack/Tower | Includes Marine Filter

Eaton 9PX3000IRTMR Marine UPS | 3000VA 3000W Online Double Conversion | RT3U Rack/Tower | Includes Marine Filter

9PX3000IRTMR

Stock Status: Enquire

$7,330.98 AUD
$7,330.98 AUD
$7,330.98 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Eaton 9PX3000IRTMR is a marine-grade, online double conversion UPS package designed for bridge, navigation, communications and automation systems. It combines true online power protection with coated electronics for harsh environments and DNV-GL type approval.

  • Rating: 3000VA / 3000W (unity power factor, VA = W)
  • Input: IEC C20 (16A), nominal 200/208/220/230/240V
  • Output: 8 x IEC C13 (10A) + 2 x IEC C19 (16A)
  • Efficiency: up to 94% online mode, up to 98% hi-efficiency mode
  • Marine approvals: DNV-GL type approved, Energy Star qualified
  • Battery management: Eaton ABM and temperature compensated charging

Marine compliance note: Eaton specifies that the marine UPS requires a marine EMC filter for IEC/EN 60945 compliance. This SKU is sold as a “marine with filter” package in AU distribution.

More runtime can be added with external battery modules (EBMs), up to 4 supported.

Features

• 3000VA / 3000W marine-grade online double conversion UPS (unity power factor)
• Coated electronics for harsh marine and offshore environments, DNV-GL type approved
• Wide input tolerance 176V to 276V without derating (down to 100V with derating)
• RT3U rack/tower chassis with IEC C20 input and 10 total outputs (8 x C13 plus 2 x C19)
• High efficiency up to 94% online and up to 98% hi-efficiency mode
• ABM battery management with temperature compensated charging and automatic battery testing
• USB, RS232, relay output and remote shutdown terminals, plus slot for optional network or Modbus card
• Expand runtime with external battery modules, up to 4 supported

Warranty

Standard UPS (with VRLA batteries): 2-3 year warranty
Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Replacement Battery Finder

Technical Specifications

Part Number: 9PX3000IRTMR
Series: Eaton 9PX Marine UPS

UPS topology:
- On-line double conversion with PFC (power factor correction)

Power rating:
- 3000VA / 3000W (unity power factor)

Electrical:
- Nominal voltage: 200/208/220/230/240V
- Input voltage range: 176V to 276V without derating (up to 100V to 276V with derating)
- Input frequency range: 40 to 70Hz, 50/60Hz auto-selection, frequency converter mode

Efficiency:
- Up to 94% in online mode
- Up to 98% in hi-efficiency mode

Connections:
- Input: 1 x IEC C20 (16A)
- Outputs: 8 x IEC C13 (10A) + 2 x IEC C19 (16A)

Typical backup times (internal batteries, approximate):
- 300W: 60 min
- 500W: 36 min
- 800W: 22 min
- 1200W: 13 min
- 1800W: 7 min
- 2500W: 4 min

Typical backup times with EBM (approximate):
- 1 EBM / 4 EBM at 300W: 221 / 824 min
- 1 EBM / 4 EBM at 500W: 135 / 504 min
- 1 EBM / 4 EBM at 800W: 83 / 307 min
- 1 EBM / 4 EBM at 1200W: 52 / 194 min
- 1 EBM / 4 EBM at 1800W: 33 / 122 min
- 1 EBM / 4 EBM at 2500W: 22 / 82 min

Battery management:
- ABM and temperature compensated charging (user selectable)
- Automatic battery test
- Deep discharge protection
- Automatic recognition of external battery units

Communications:
- 1 x USB
- 1 x RS232 serial
- Mini-terminal block: remote ON/OFF
- Mini-terminal block: remote power off
- Mini-terminal block: output relay
- 1 slot for optional Network-MS, ModBus-MS or Relay-MS card

Operating conditions:
- Operating temperature: 0°C to 40°C
- Typical noise level: 40 dB

Compliance and approvals:
- Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
- EMC: IEC/EN 62040-2, FCC Class B, CISPR22 Class B
- Approvals/markings: DNV-GL type approved, CE, CB report (TUV), cULus, EAC, RCM, KC, Energy Star

Physical:
- Format: RT3U (rack/tower)
- UPS dimensions (H x W x D): 130 x 440 x 485 mm
- UPS weight: 27.4 kg

Warranty:
- 3 years on electronics
- 2 years on batteries

Notes:
- Eaton states the marine UPS requires a marine EMC filter for IEC/EN 60945 compliance.
- External battery module for this model: 9PXEBM72RT3U (optional), up to 4 supported.

FAQs

Q1: Is the 9PX3000IRTMR a true online UPS?
A1: Yes. It uses on-line double conversion topology with power factor correction for continuous voltage and frequency regulation.

Q2: What is the usable power output in watts?
A2: It is rated 3000VA and 3000W (unity power factor).

Q3: What are the input and output connections?
A3: Input is IEC C20 (16A). Outputs are 8 x IEC C13 (10A) plus 2 x IEC C19 (16A).

Q4: Can I extend runtime?
A4: Yes. Eaton lists support for external battery modules, up to 4 EBMs, for extended runtime.

Q5: Does it need a marine filter?
A5: Eaton specifies that the marine UPS requires a marine EMC filter for IEC/EN 60945 compliance. This SKU is commonly supplied as a “marine with filter” package in AU distribution.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Replacement Battery Finder

Looking for an Eaton UPS replacement battery?

Use the official Eaton UPS Battery Finder tool to identify compatible battery replacement kits and genuine Eaton battery cartridges for your specific UPS model in Australia.
