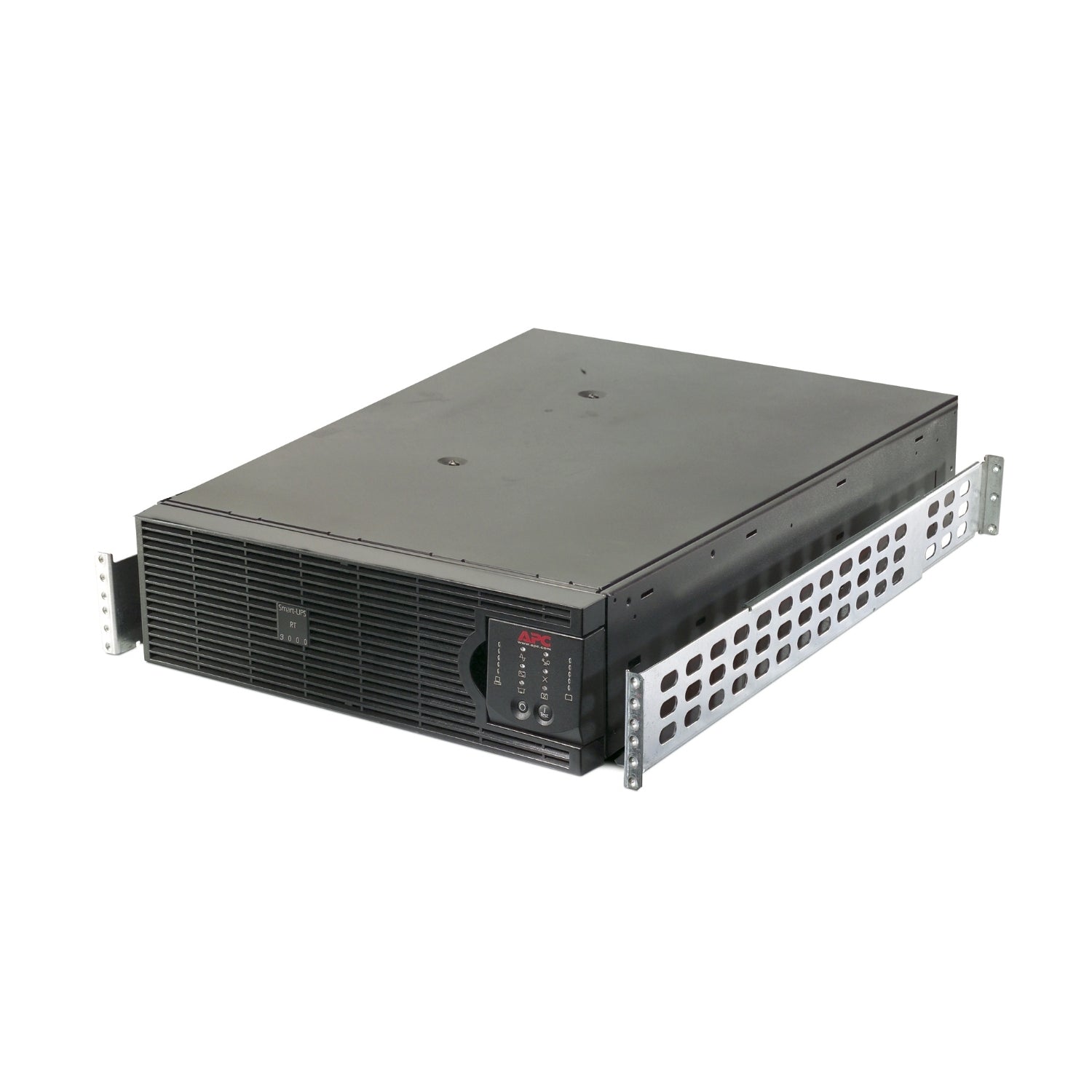

• APC SURTD3000XLIM black silver rack-mountable UPS power supply
1 1

APC

APC SURTD3000XLIM | Smart-UPS RT Marine Rack/Tower UPS, 3000VA, 230V

APC SURTD3000XLIM | Smart-UPS RT Marine Rack/Tower UPS, 3000VA, 230V

Authorised APC Partner

SURTD3000XLIM

Stock Status: Enquire

$5,896.16 inc. GST
$5,360.15 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Smart-UPS RT Marine is an online double-conversion rack/tower UPS rated 3000VA/2100W at 230V, built for critical marine applications. It is DNV type approved, supports operation up to 55°C and occupies 3U of rack space when rack-mounted. Hot-swappable, front-accessible, user-replaceable batteries keep maintenance simple, with two battery modules included.

Pure sine wave output on battery suits servers with active PFC power supplies, while power conditioning guards connected loads against surges, spikes and lightning. A SmartSlot accepts optional management cards for SNMP and Ethernet monitoring, and one external battery pack can be added to extend runtime. Outputs include eight IEC C13 and two C19 outlets plus two IEC jumpers.

Features

- DNV type approved for marine applications
- Online double-conversion protection for critical equipment
- Hot-swappable, front-accessible, user-replaceable batteries
- Pure sine wave output on battery for compatibility with active PFC servers
- Power conditioning against surges, spikes and lightning
- Intelligent battery management to maximise battery life
- SmartSlot for optional SNMP/Ethernet management cards
- Automatic restart of loads and automatic battery self-test
- Operates at temperatures up to 55°C
- Internal automatic and manual bypass

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Output capacity: 3000VA / 2100W
- Topology: double conversion online with sine wave output
- Nominal output voltage: 230V, configurable for 220, 230 or 240V
- Output voltage distortion: less than 3%
- Output frequency: 50/60Hz, synchronised to mains
- Outlets: 8 x IEC 320 C13, 2 x IEC 320 C19, 2 x IEC jumpers
- Input connections: BS1363A, IEC 320 C20, Schuko CEE 7/EU1-16P
- Input voltage range for main operations: 180 - 270V
- Battery: maintenance-free sealed lead-acid, 2 hot-swappable modules included
- Typical recharge time: 2.5 hours
- Replacement battery: APCRBC140
- Extendable runtime: 1 external battery pack
- Interface ports: RJ-45 serial, SmartSlot, Relay I/O
- Surge energy rating: 555 Joules
- Operating temperature: 0 to 55°C
- Form factor: rack/tower, 3U
- Dimensions (H x W x D): 43.2 x 13 x 66 cm
- Certifications: CE, DNV, KCC

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Is this UPS suitable for marine installations?
A: Yes. The Smart-UPS RT Marine is DNV type approved and designed for critical marine applications, with operation up to 55°C.

Q: Can it be mounted in a rack?
A: Yes. It is a rack/tower design that occupies 3U when rack-mounted.

Q: Does it support network monitoring?
A: It has a SmartSlot for optional management cards that add SNMP and Ethernet monitoring. A card is not included as standard.

Q: Can the battery runtime be extended?
A: Yes. One external battery pack is supported to extend runtime beyond the two internal battery modules included.

Q: Are the batteries replaceable without shutting down?
A: The batteries are hot-swappable and front-accessible. The replacement battery is APCRBC140.

Q: What output voltage does it provide?
A: Nominal output is 230V, and it can be configured for 220, 230 or 240V.
