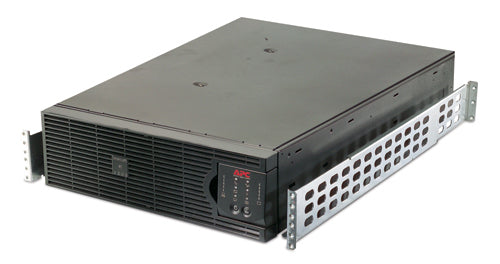

• APC SURTD2200XLIM Smart-UPS RT 2200VA black metal rack with perforated panels
1 1

APC

APC SURTD2200XLIM | Smart-UPS RT Marine Online UPS, 2200VA, 230V, DNV

APC SURTD2200XLIM | Smart-UPS RT Marine Online UPS, 2200VA, 230V, DNV

Authorised APC Partner

SURTD2200XLIM

Stock Status: Enquire

$4,071.66 inc. GST
$3,701.51 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Smart-UPS RT 2200VA 230V Marine UPS is a ruggedised double-conversion online UPS built for shipboard and other transportation applications. It delivers 2200VA / 1540W of clean, continuous power in a 3U rack-mount or convertible tower form factor, and is DNV type approved for marine use.

The SURTD2200XLIM provides 10 outlets (2x IEC C19 and 8x IEC C13), hot-swappable front-accessible batteries and a manual bypass switch for maintenance without downtime. It operates at ambient temperatures up to 55°C and includes an RS-232 serial interface, rack mounting hardware and management software.

Features

- DNV type approved for marine use
- Hot-swappable, front-accessible, user-replaceable batteries
- Double conversion online protection for sensitive equipment
- Manual bypass switch for maintenance without interrupting load
- Operates at ambient temperatures up to 55°C
- Ruggedised design for shipboard and other transportation applications
- Rack mounting hardware, RS-232 signalling cable, software CD and documentation included

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 2200VA / 1540W output power capacity
- Double conversion online topology
- 230V nominal output, configurable for 220/230/240V
- Output frequency 50/60 Hz
- 10 outlets: 2x IEC 320 C19, 8x IEC 320 C13, plus 2x IEC jumpers
- Input connections: British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
- Runtime of 21 minutes at full load
- 3U rack-mount or convertible tower
- Serial RS-232 communication interface
- Operating temperature up to 55°C
- Manual bypass switch
- Dimensions approx. 5.1in H x 17in W x 26in D
- Black colour

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Is the APC SURTD2200XLIM approved for marine use?
A: Yes. This Smart-UPS RT model is DNV type approved and ruggedised for shipboard and other transportation applications.

Q: What is the output capacity of this UPS?
A: It provides 2200VA / 1540W at a nominal 230V output, configurable for 220, 230 or 240V, at 50/60 Hz.

Q: Are the batteries user-replaceable?
A: Yes. The batteries are hot-swappable, front-accessible and user-replaceable, so they can be changed without powering down the load.

Q: What outlets does it provide?
A: It has 10 outlets: 2x IEC 320 C19 and 8x IEC 320 C13, plus 2x IEC jumpers.

Q: Can it be rack mounted?
A: Yes. It is a 3U unit that can be rack mounted or used as a tower, and rack mounting hardware is included in the package.

Q: What is the runtime at full load?
A: Runtime at full load is 21 minutes. Runtime increases at lower load levels.
