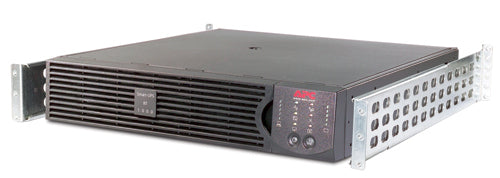

• APC SURT1000XLIM Smart-UPS RT 1000VA black server rack with red black control panel
1 1

APC

APC SURT1000XLIM | Smart-UPS RT Marine Online UPS, 1000VA, 230V, DNV, 2U

APC SURT1000XLIM | Smart-UPS RT Marine Online UPS, 1000VA, 230V, DNV, 2U

Authorised APC Partner

SURT1000XLIM

Stock Status: Enquire

$2,644.61 inc. GST
$2,404.19 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Smart-UPS RT SURT1000XLIM is a Marine (DNV) double-conversion online UPS rated 1000VA / 700W at 230V, built for shipboard and other harsh transportation environments. The 2U rack/tower chassis suits vessel equipment racks and cabinets, and it is DNV type approved with an operating temperature of up to 55 C.

Hot-swappable, front-accessible, user-replaceable batteries keep maintenance simple, and the frequency conversion function converts 50Hz to 60Hz where required. Six IEC 60320 outlets and two IEC jumpers provide flexible connection of protected equipment, while the DB-9 RS-232 port and SmartSlot support monitoring and optional management cards.

Features

- Suited to critical marine applications
- DNV type approved
- Double-conversion online topology for clean, continuous power
- Hot-swappable, front-accessible, user-replaceable batteries
- Frequency conversion function (50Hz to 60Hz)
- Operates at temperatures up to 55 C
- Includes CD with software, relay board, Smart-UPS signalling RS-232 cable and user manual

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rated power: 1000 VA / 700 W
- UPS technology: Double Conversion Online
- Input voltage range: 180 - 280 V
- Input frequency: 50/60 Hz +/- 5 Hz (auto sensing)
- Input connection: IEC 60320 C14
- Output voltage: 230 V (configurable 220 / 230 / 240 V)
- Output frequency: 50/60 Hz +/- 3 Hz, user adjustable
- Output connections: 6 x IEC 60320 outlets, 2 x IEC jumpers
- Battery type: Sealed, maintenance-free lead-acid
- Replacement battery: RBC31
- Battery recharge time: 3 hours
- Runtime: 14 min at full load, 32 min at half load
- Surge energy rating: 420 J
- Interface: DB-9 RS-232, SmartSlot
- Form factor: 2U rack/tower
- Operating temperature: 0 to 55 C
- Operating humidity: 0 - 95% non-condensing
- Net weight: 23 kg
- Approvals: CE, DNV, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, KCC

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Is the SURT1000XLIM approved for marine use?
A: Yes. This Smart-UPS RT Marine model is DNV type approved and designed for shipboard and other harsh transportation environments.

Q: What is the output capacity and voltage?
A: It is rated 1000VA / 700W with a nominal 230V output, configurable to 220, 230 or 240V.

Q: Can the batteries be replaced without shutting down the UPS?
A: Yes. The batteries are hot-swappable, front-accessible and user-replaceable. The replacement battery cartridge is RBC31.

Q: Can this UPS convert 50Hz to 60Hz?
A: Yes. It has a frequency conversion function that converts 50Hz to 60Hz.

Q: What mounting options does it support?
A: It is a 2U unit suitable for rack or tower installation.

Q: What outlets does it provide?
A: It has six IEC 60320 outlets and two IEC jumpers, with an IEC 60320 C14 input connection.
