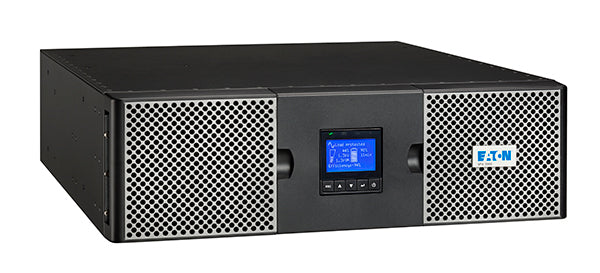

• Eaton 9PX3000IRTM UPS with perforated front panels and blue display
1 1

Eaton

Eaton 9PX3000IRTM Marine UPS | 3000VA 3000W Online Double Conversion | RT3U Rack/Tower | 8 x C13 + 2 x C19

Eaton 9PX3000IRTM Marine UPS | 3000VA 3000W Online Double Conversion | RT3U Rack/Tower | 8 x C13 + 2 x C19

9PX3000IRTM

Stock Status: Enquire

$6,451.34 AUD
$6,451.34 AUD
$6,451.34 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Eaton 9PX3000IRTM is a marine-grade, online double conversion UPS designed to deliver clean, regulated power for critical systems in harsh environments. It is DNV GL certified and uses coated boards to suit marine and offshore conditions.

  • Capacity: 3000VA / 3000W (unity power factor)
  • Topology: online double conversion with internal bypass
  • Form factor: RT3U rack/tower, rail and pedestal kits included
  • Input: IEC C20, 230V default (selectable 200/208/220/230/240V)
  • Outputs: 8 x IEC C13 + 2 x IEC C19, pure sine wave output
  • Battery management: Eaton ABM with automatic battery test and deep discharge protection

For monitoring and shutdown integration it includes USB and RS232, plus dry contacts via DB9, and a slot for an optional communication card.

Features

• Marine-grade online double conversion UPS, DNV GL certified, designed for harsh environments with coated boards
• 3000VA / 3000W unity power factor, pure sine wave output for sensitive equipment
• RT3U rack/tower chassis with rail kit and pedestal supports included
• IEC C20 input with 10 outlets total, 8 x C13 plus 2 x C19
• ABM battery management with automatic battery test and deep discharge protection
• Internal bypass for service continuity
• USB, RS232 and DB9 dry contacts, plus slot for optional communications card
• Low noise operation, <40 dB at 1 metre

Warranty

Standard UPS (with VRLA batteries): 2-3 year warranty
Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Replacement Battery Finder

Technical Specifications

Part Number: 9PX3000IRTM
Product Name: Eaton 9PX Marine UPS

Topology:
- Online / Double conversion
- On-line double conversion with PFC (power factor correction) system

Power:
- 3000 VA
- 3000 W (unity power factor, VA = W)

Form factor:
- RT3U rack/tower (3U)
- 19 inch rackmount device
- Rack mounting kit: Yes

Input:
- Input connection: IEC C20
- Input cord length: 1.8 m
- Input nominal voltage: 230V default (selectable 200/208/220/230/240V)
- Nominal frequency: 50/60 Hz
- Input frequency range: 40 to 70 Hz
- Input voltage range (datasheet): 176V to 276V without derating (up to 100V to 276V with derating)
- Input power factor: >0.99

Output:
- Output outlets: 8 x IEC C13, 2 x IEC C19
- Output waveform: Sine wave
- Output nominal voltage: 230V default (selectable 200/208/220/230/240V)
- Feed type: 1 (single phase)

Batteries:
- Battery type: Sealed lead-acid
- Battery rating: 12 V / 9 Ah
- Extended battery capability: Yes
- Battery management: ABM and temperature compensated charging (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units
- Battery replacement: Hot-swappable internal batteries and external battery modules (EBMs)

Runtime:
- Runtime at half load: 9.5 minutes

Communications:
- USB port (HID compliant)
- Serial port (RS232)
- Dry contacts (3 outputs, 1 input, optocoupler, DB9)
- Mini terminal block for remote On/Off
- Mini terminal block for remote power off
- Mini terminal block for output relay
- Expansion slots: 1 slot for optional communication card
- Ethernet interface: No
- Includes network card: No

User interface:
- Multilingual graphical LCD display

Noise and thermal:
- Noise level: <40 dB at 1 metre
- BTU rating: Online 614

Compliance and approvals:
- Certifications listed: ENERGY STAR certified, DNV GL Certified, IEC/EN 62040-1, IEC/EN 62040-2, UL 1778, CE, EAC

Physical:
- Dimensions (W x D x H): 44.0 x 48.5 x 13.0 cm
- Weight: 27.4 kg

In the box:
- UPS
- Input cable
- (2) IEC-IEC output cables
- USB cable
- Serial cable
- (2) brackets for 19 inch mounting
- (2) rack-mounting kit
- (2) supports for tower mounting
- Cable locking system
- Safety instructions
- Quickstart guide

FAQs

Q1: Is the 9PX3000IRTM a true online UPS?
A1: Yes. It uses online double conversion topology and continuously regulates voltage and frequency, delivering a sine wave output.

Q2: What is the usable power output in watts?
A2: It is rated 3000VA and 3000W, using a unity power factor (VA equals W).

Q3: What input and output connections does it use?
A3: Input is IEC C20. Outputs are 8 x IEC C13 plus 2 x IEC C19.

Q4: Does it include a network card or Ethernet?
A4: No. Ethernet is not built in and a network card is not included as standard. It provides USB, RS232, and dry contacts, plus a slot for an optional communication card.

Q5: Can I extend the runtime?
A5: Yes. It supports extended battery capability and recognises external battery modules (EBMs) for longer runtime.
