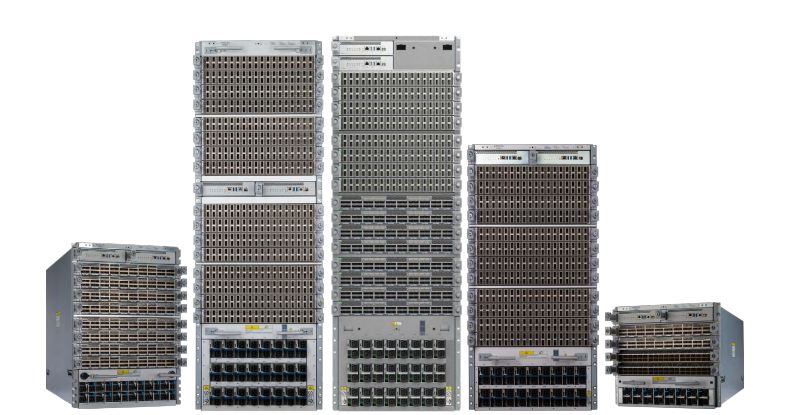

Arista DCS-7816L-FCM | 7800R4 Fabric Cooling Module for 7816L, Slot 6, 16 Fans

Authorised Arista Partner

SKU:DCS-7816L-FCM

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Arista DCS-7816L-FCM is a 7800R4 Series fabric cooling module for the Arista 7816L 16-slot modular chassis. It is installed in fabric slot 6 and includes 16 user-serviceable fan modules, delivering hot-swappable cooling with graceful degradation for AI spine and data centre deployments.

The module is required in slot 6 of the 7816L alongside five 7800R4 fabric modules in slots 1 to 5. It supports the front-to-rear airflow design of the 7800R4 platform, and individual fan modules can be replaced in the field using the FAN-7800-HS spare.

Features

- Required in fabric slot 6 of the 7816L chassis, alongside five 7800R4 fabric modules in slots 1 to 5
- Hot-swappable with individually serviceable fan modules for flexible and redundant cooling
- Graceful cooling degradation keeps the system operating if a fan module fails
- Supports front-to-rear data centre airflow for the 7800R4 platform
- Spare fan modules (FAN-7800-HS) available for field replacement

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Compatible chassis: DCS-7816L
- Installation position: fabric slot 6 (required)
- 16 user-serviceable fan modules
- Graceful cooling degradation supported
- Dimensions (H x W x D): 2.5 x 43.3 x 23.7 in (6.4 x 109.9 x 60.1 cm)
- Weight: 47.6 lbs (32.8 kg)
- Front-to-rear airflow chassis design
- Spare fan module: FAN-7800-HS

FAQs

Q: Which chassis is the DCS-7816L-FCM compatible with?
A: It is designed for the Arista DCS-7816L 16-slot modular chassis and is installed in fabric slot 6.

Q: Is this module required for the 7816L chassis?
A: Yes. A fabric cooling module is required in fabric slot 6, alongside five 7800R4 fabric modules in slots 1 to 5.

Q: How many fan modules does it include?
A: It has 16 user-serviceable fan modules that can be replaced individually.

Q: What happens if a fan module fails?
A: The module supports graceful cooling degradation, so the system keeps operating while the failed fan is replaced.

Q: Can fan modules be replaced in the field?
A: Yes. The fans are hot-swappable and individually serviceable, and FAN-7800-HS is the spare fan module for this type of cooling module.

Q: What airflow direction does the platform use?
A: The 7800R4 chassis uses a front-to-rear airflow design suited to standard data centre hot and cold aisle layouts.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
