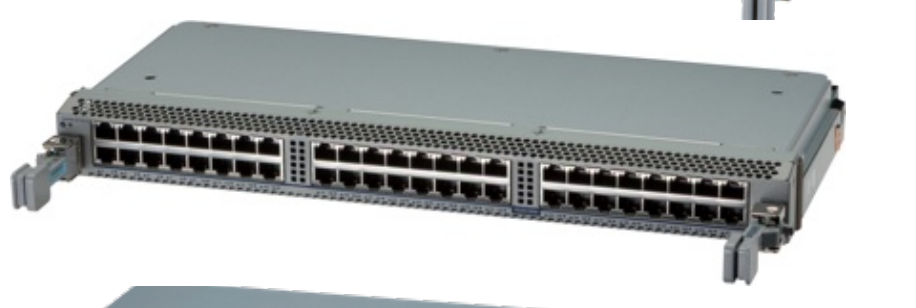

• Gray metal arista ccs-750xpm-48nh-lc server rack showing back side with three rows of 48-port mGig poe ethernet ports
1 1

Arista

Arista CCS-750XPM-48NH-LC | 750X Series 48-Port mGig PoE Linecard, 90W, 2.5G/5G

Arista CCS-750XPM-48NH-LC | 750X Series 48-Port mGig PoE Linecard, 90W, 2.5G/5G

CCS-750XPM-48NH-LC

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Arista 750X Series 48-port multi-gigabit PoE linecard delivers high-density access connectivity for enterprise campus deployments requiring 100Mb, 1G, 2.5G, and 5G speeds over RJ45. Supporting up to 90W per port via IEEE 802.3bt, this hot-swappable linecard is purpose-built for powering the latest Wi-Fi 6 access points, IoT devices, and high-demand endpoints at scale. It slots into the CCS-755 (5-slot) or CCS-758 (8-slot) modular chassis, enabling up to 384 access ports per system with non-blocking performance and MACsec 256-bit encryption on every port for zero-trust security.

Running Arista EOS, the linecard integrates seamlessly into existing Arista environments with Zero Touch Provisioning, Linux-based automation, and FlowTracker telemetry for real-time visibility. Continuous PoE maintains power to connected devices during system reloads, while dynamic PoE management with priority-based allocation maximises powered device density. N+1 and N+N redundant power supply options ensure carrier-grade resiliency. Order direct from iptrading.com.au — Australian-owned and operated since 2001.

Features

- 90W IEEE 802.3bt PoE per port — supports Wi-Fi 6 APs, PTZ cameras, and high-power IoT devices
- Hot-swappable linecard design for non-disruptive installation and maintenance
- MACsec 256-bit encryption on all 48 access ports for zero-trust network security
- Dynamic PoE management with priority-based power allocation and load sharing
- Continuous PoE maintains power to connected devices during system reload
- Arista EOS provides a consistent, programmable OS across all Arista platforms
- Zero Touch Provisioning (ZTP) and native Linux-based automation supported
- FlowTracker telemetry for real-time network visibility and flow analysis
- Mix-and-match linecard support enables pay-as-you-grow capacity planning
- N+1 and N+N power supply redundancy with 3.3kW high-efficiency PSUs
- Active-standby resiliency with independent control and data planes
- Scales to 384 access ports in a single 8-slot CCS-758 chassis

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x mGig RJ45 access ports
- Supported speeds: 100Mb, 1G, 2.5G, 5G
- PoE per port: Up to 90W (IEEE 802.3bt)
- Form factor: Hot-swappable linecard
- Compatible chassis: CCS-755 (5-slot), CCS-758 (8-slot)
- Maximum system density: 384 ports (8-slot chassis, 8 linecards)
- MACsec 256-bit encryption on all access ports
- Non-blocking architecture via centralised switch cards
- Compatible with 3.3kW high-efficiency power supplies
- Power redundancy: N+1 and N+N supported
- Operating system: Arista EOS

FAQs

Q: What chassis is the CCS-750XPM-48NH-LC compatible with?
A: This linecard is compatible with the Arista CCS-755 (5-slot) and CCS-758 (8-slot) modular campus switch chassis. The 8-slot chassis supports up to eight linecards, yielding a maximum of 384 access ports per system.

Q: What is the maximum PoE wattage per port, and which PoE standard does it use?
A: Each of the 48 RJ45 ports supports up to 90W of PoE using the IEEE 802.3bt standard (also known as PoE++). This makes the linecard suitable for powering the latest Wi-Fi 6 access points, PTZ cameras, and high-demand IoT devices.

Q: Can this linecard be installed without powering down the chassis?
A: Yes. The CCS-750XPM-48NH-LC features a hot-swappable design, allowing it to be inserted or removed without disrupting other linecards or connected devices in the chassis — ideal for non-disruptive maintenance and capacity expansion.

Q: Does this linecard support MACsec encryption?
A: Yes. MACsec 256-bit encryption is supported on all 48 access ports, enabling a zero-trust security posture at the access layer — essential for enterprise campus and government deployments with strict data protection requirements.

Q: What management and automation capabilities are available?
A: The linecard runs Arista EOS, the same consistent operating system across the entire Arista portfolio. This enables Zero Touch Provisioning (ZTP), Linux-based automation, FlowTracker telemetry for real-time visibility, and integration with Arista CloudVision for centralised management.

Q: Can I purchase this Arista linecard in Australia through IP Trading?
A: Yes. IP Trading is an Australian-owned and operated IT hardware reseller, trading since 2001. You can order the CCS-750XPM-48NH-LC directly through iptrading.com.au with local support and competitive B2B pricing.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
