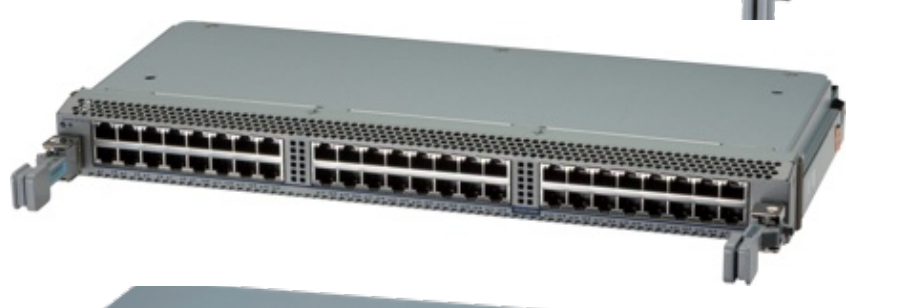

• Gray metal arista ccs-750xm-48tx-lc 48-port 10g-t rj45 switch linecard with multiple ethernet ports backside view
1 1

Arista

Arista CCS-750XM-48TX-LC | 750X Series 48-Port 10G-T RJ45 Switch Linecard, Non-PoE

Arista CCS-750XM-48TX-LC | 750X Series 48-Port 10G-T RJ45 Switch Linecard, Non-PoE

CCS-750XM-48TX-LC

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Arista 750X Series 48-port 10G-T switch linecard (CCS-750XM-48TX-LC) delivers high-density copper connectivity for modular campus deployments, providing 48 x RJ45 ports with multi-rate support across 100Mb, 1G, 2.5G, 5G, and 10G on every port. Designed as a non-PoE variant, it suits environments where power delivery to endpoints is not required, while still offering full wirespeed, non-blocking throughput within the Arista 750X modular chassis ecosystem.

Compatible with both the 5-slot CCS-755-CH and 8-slot CCS-758-CH chassis, this hot-swappable linecard runs Arista EOS with complete Layer-2 and Layer-3 feature support including MLAG, EVPN/VXLAN, and optional MACsec encryption. CloudVision integration enables cognitive campus telemetry for centralised visibility and management. Upgrade your network with gear from iptrading.com.au — Australia's IT hardware specialists.

Features

- Hot-swappable linecard for seamless installation and replacement in live chassis environments
- 48 multi-rate RJ45 ports supporting 100Mb, 1G, 2.5G, 5G, and 10G — adaptable to mixed-speed campuses
- Non-PoE design for deployments where endpoint power delivery is not required
- Compatible with both 5-slot (CCS-755-CH) and 8-slot (CCS-758-CH) Arista 750X chassis
- Non-blocking architecture ensuring wirespeed performance with consistent low latency and low jitter
- Active-standby resiliency with fully independent control and data planes
- MLAG support for active-active link aggregation and redundancy
- EVPN/VXLAN support for scalable, segmented campus network fabric
- Optional MACsec encryption for secure data transmission (licence required)
- Runs Arista EOS with full Layer-2 and Layer-3 feature parity
- CloudVision integration for cognitive campus telemetry, analytics, and centralised management

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x 10G-T RJ45 Ports (Non-PoE)
- Supported Speeds: 100Mb, 1G, 2.5G, 5G, 10G (multi-rate, per port)
- Maximum 10G Ports: 48
- Form Factor: Hot-swappable linecard module
- Compatible Chassis: CCS-758-CH (8-slot), CCS-755-CH (5-slot)
- Dimensions (H x W x D): 1.63 x 16.57 x 10.5 in (4.14 x 42.1 x 26.68 cm)
- Weight: 6.8 lbs (3.08 kg)
- Minimum EOS Software Version: 4.35.0
- No Power over Ethernet (Non-PoE)

FAQs

Q: What chassis is the CCS-750XM-48TX-LC compatible with?
A: The CCS-750XM-48TX-LC is compatible with both the Arista CCS-755-CH (5-slot) and CCS-758-CH (8-slot) modular chassis in the 750X Series.

Q: Does this linecard support Power over Ethernet (PoE)?
A: No — the CCS-750XM-48TX-LC is a non-PoE linecard. It is ideal for deployments connecting servers, uplinks, or endpoints that do not require power delivery over the Ethernet cable. A separate PoE variant is available in the 750X Series lineup.

Q: What speeds are supported on the 48 copper ports?
A: All 48 RJ45 ports are multi-rate and support 100Mb, 1G, 2.5G, 5G, and 10G, making this linecard suitable for mixed-speed environments and future-proofed for 10G end-device adoption.

Q: Can the linecard be replaced without powering down the chassis?
A: Yes, the CCS-750XM-48TX-LC is hot-swappable, allowing it to be inserted or removed while the chassis remains operational, minimising disruption to the network.

Q: Does this linecard support EVPN/VXLAN and MACsec?
A: Yes — running Arista EOS, the linecard supports EVPN/VXLAN for scalable campus segmentation, MLAG for active-active forwarding, and MACsec encryption (which requires a separate licence). Minimum required EOS version is 4.35.0.

Q: Can I purchase the Arista CCS-750XM-48TX-LC in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware specialist supplying Arista switching products including 750X Series linecards. Contact our team for pricing, availability, and configuration advice tailored to your deployment.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
