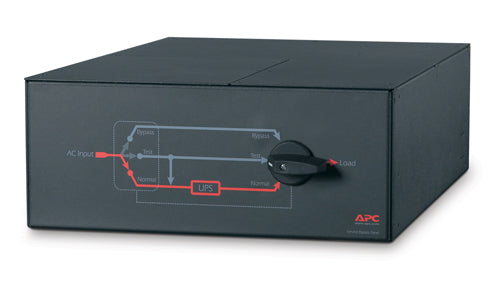

• APC SBP16KP maintenance bypass panel 240V AU plug with diagram and knob
1 1

APC

APC SBP16KP | Maintenance Bypass Panel, 200/208/240V, 100A, MBB, Hardwired

APC SBP16KP | Maintenance Bypass Panel, 200/208/240V, 100A, MBB, Hardwired

Authorised APC Partner

SBP16KP

In stock:2

$3,477.86 inc. GST
$3,161.69 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC SBP16KP is a make-before-break maintenance bypass panel rated for 200/208/240V and 100A with hardwired input and output. It lets a connected APC UPS be serviced, tested or swapped without interrupting power to the load, using a manual maintenance bypass switch with wrap-around system bypass.

Designed for APC InfraStruXure Type A, Smart-UPS and Symmetra systems, this service bypass panel supports 200V, 208V and 240V configurations and carries a UL-compliant design. It is suited to server rooms and data centres that need continuous uptime during UPS maintenance.

Features

- Keeps power on to the load during UPS servicing
- Compatible with APC InfraStruXure Type A, Smart-UPS and Symmetra UPS systems
- Supports 200V, 208V and 240V configurations
- UL-compliant design

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rated current: 100A
- Input/output voltage: 200/208/240V
- Make-before-break (MBB) transfer
- Hardwired input and output
- Manual maintenance bypass switch
- Wrap-around system bypass

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What does MBB mean on this bypass panel?
A: MBB stands for make-before-break. The bypass connection is made before the UPS path is broken, so power to the load is not interrupted during the transfer.

Q: Which APC UPS systems is the SBP16KP compatible with?
A: It is designed for APC InfraStruXure Type A, Smart-UPS and Symmetra UPS systems.

Q: What voltages and current does it support?
A: It supports 200V, 208V and 240V configurations and is rated for 100A.

Q: Is the input and output plug-in or hardwired?
A: Both input and output are hardwired, so installation by a qualified electrician is required.

Q: What is the purpose of a maintenance bypass panel?
A: It lets you route power around the UPS so the UPS can be serviced, tested or replaced while the connected load stays powered.
