APC

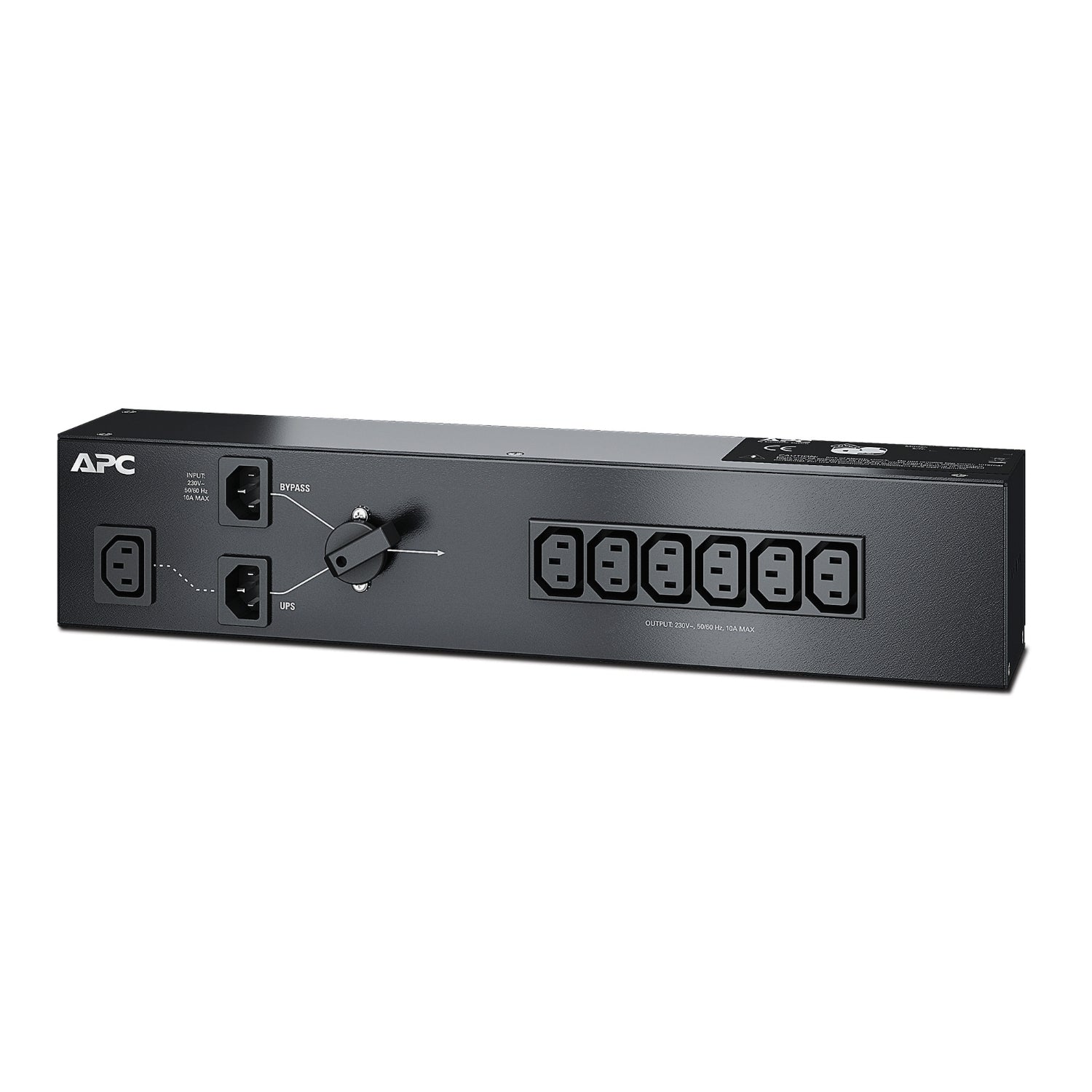

APC SBP1500RMI | Service Bypass PDU, 2U, 1500VA, 230V 10A, BBM, 6x C13

APC SBP1500RMI | Service Bypass PDU, 2U, 1500VA, 230V 10A, BBM, 6x C13

Authorised APC Partner

SBP1500RMI

In stock:13

$479.44 inc. GST
$435.85 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC SBP1500RMI is a 2U rack-mount Service Bypass PDU rated for 1500VA, designed to let an APC Smart-UPS, Symmetra or InfraStruXure Type A UPS be isolated for maintenance or replacement without interrupting power to connected loads. It uses make-before-break (BBM) bypass switching, a 230V 10A IEC C14 input and six IEC C13 output outlets.

Circuit breaker protection guards the connected equipment against overload, and the panel delivers 99% efficiency at full load. Rack mounting brackets and a user manual are included, so it fits straight into a standard 19-inch rack alongside the UPS it supports.

Features

- Make-before-break (BBM) service bypass keeps loads powered during UPS changeover
- Allows UPS maintenance or replacement without dropping the load
- Designed for APC InfraStruXure Type A, Smart-UPS and Symmetra UPS products
- Six IEC C13 outlets plus one IEC jumper for connecting equipment
- Circuit breaker overload protection
- 2U rack-mount form factor with mounting brackets included
- 99 % efficiency at full load

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Load capacity: 1500 VA
- Input voltage: 230 V (220-240 V acceptable)
- Input frequency: 50/60 Hz
- Input plug: IEC 60320 C14
- Maximum input current: 10 A
- Output voltage: 230 V
- Output connections: 6 x IEC 60320 C13, 1 x IEC jumper
- Bypass switching: Make-before-break (BBM)
- Protection: Circuit breaker / overload protection
- Efficiency at full load: 99 %
- Load power factor range: 0 to 1
- Mounting: 2U rack mount
- Dimensions (H x W x D): 89 x 432 x 76 mm
- Net weight: 2 kg
- Colour: Black
- Operating temperature: 0 to 40 C
- Operating relative humidity: 0 to 95 %

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What does the SBP1500RMI do?
A: It is a service bypass panel that lets you isolate a compatible APC UPS for maintenance or replacement while connected equipment continues to receive power through the bypass.

Q: Which UPS products is it designed for?
A: It is designed for APC InfraStruXure Type A, Smart-UPS and Symmetra UPS products.

Q: What input and output connections does it have?
A: It has a single IEC C14 input rated 230V 10A and six IEC C13 output outlets plus one IEC jumper.

Q: What does make-before-break (BBM) mean?
A: Make-before-break switching establishes the bypass path before the UPS path is disconnected, so connected loads are not interrupted during the transfer.

Q: How much space does it take in the rack?
A: It occupies 2U of a standard 19-inch rack, and rack mounting brackets are included.

Q: What is the maximum load it can support?
A: It is rated for a 1500VA load capacity with a maximum total current draw of 10A at 230V.
