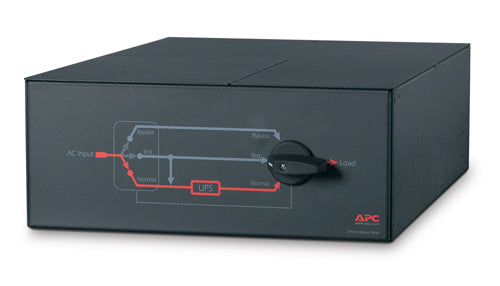

APC SBP10KRMI4U | Maintenance Bypass Panel, 4U, 230V, 100A, 8x C13, 2x C19

APC SBP10KRMI4U | Maintenance Bypass Panel, 4U, 230V, 100A, 8x C13, 2x C19

Authorised APC Partner

SBP10KRMI4U

In stock:3

$3,535.68 inc. GST
$3,214.25 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC SBP10KRMI4U is a 4U rack-mount maintenance bypass panel for 230V UPS installations, rated at 100A with a hardwired input. Its make-before-break (MBB) design lets you isolate a UPS for servicing or replacement without interrupting power to connected loads. Outputs are 8 x IEC 60320 C13 and 2 x IEC 60320 C19 sockets, so servers and network equipment can be connected directly.

The panel supports loads up to 20000 VA and accepts either a 3-wire (1P+N+E) or 4-wire (3P+N) hardwired connection. Output circuit breakers protect the outlets, and the unit operates at 99 % efficiency. Rack mounting brackets are included for a compact installation in standard racks.

Features

- Make-before-break maintenance bypass allows UPS servicing or replacement without interrupting the load
- Hardwired input supports both 3-wire (1P+N+E) and 4-wire (3P+N) connections
- Output circuit breakers protect the C13 and C19 outlets
- Mixed IEC 60320 outputs (8 x C13, 2 x C19) for direct connection of servers and network equipment
- Compact 4U rack-mount design with included mounting brackets
- High efficiency of 99 %
- Supports loads up to 20000 VA at 100 A

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Input/output voltage: 230 V
- Maximum line current: 100 A
- Load capacity: 20000 VA
- Input: hardwired, 3-wire (1P+N+E) or 4-wire (3P+N)
- Outputs: 8 x IEC 60320 C13, 2 x IEC 60320 C19
- Bypass type: make-before-break (MBB)
- Protection: circuit breaker
- Efficiency: 99 %
- Frequency: 50/60 Hz
- Form factor: 4U rack-mount
- Dimensions (H x W x D): 178 x 432 x 673 mm
- Net weight: 20.91 kg
- Operating temperature: -20 to 50 C
- Operating relative humidity: 0 to 95 %
- Included: rack mounting brackets, installation guide, user manual

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What does make-before-break (MBB) mean on this bypass panel?
A: MBB means the bypass path is connected before the UPS path is disconnected. This lets you take the UPS out of the circuit for service or replacement without interrupting power to the connected loads.

Q: What type of input connection does the SBP10KRMI4U use?
A: It uses a hardwired input and supports either a 3-wire (1P+N+E) or 4-wire (3P+N) connection. It is rated at 230V and 100A, and installation should be carried out by a licensed electrician.

Q: What outputs are provided?
A: The panel provides 8 x IEC 60320 C13 and 2 x IEC 60320 C19 output sockets, suitable for direct connection of servers, switches and other rack equipment.

Q: What is the maximum load this panel can support?
A: The load capacity is 20000 VA with a maximum line current of 100 A at 230V.

Q: How much rack space does it need and is mounting hardware included?
A: It occupies 4U in a standard rack and ships with rack mounting brackets, an installation guide and a user manual. The unit is 673 mm deep, so check rack depth before installation.

Q: Does it include circuit protection?
A: Yes. It uses circuit breaker protection on the outputs to safeguard the connected C13 and C19 outlets.
