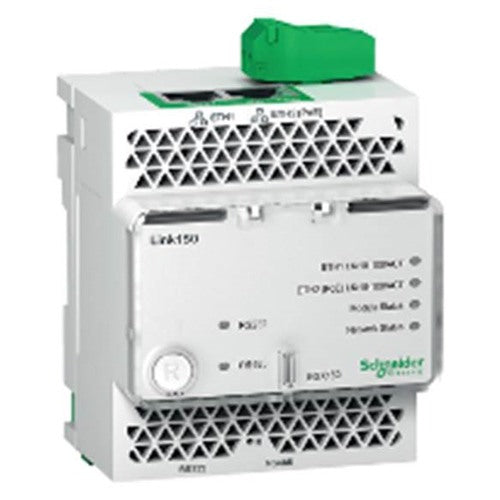

• APC EGX150 Schneider Electric Link150 gateway white switch with green terminal cover
1 1

APC

APC EGX150 | Link150 Ethernet Gateway, 2 Ethernet Ports, 24 V DC or PoE

APC EGX150 | Link150 Ethernet Gateway, 2 Ethernet Ports, 24 V DC or PoE

Authorised APC Partner

EGX150

Stock Status: Enquire

$1,109.97 inc. GST
$1,009.06 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC EGX150 is a Link150 Ethernet gateway that converts Modbus serial data to Modbus TCP/IP, connecting meters, protective relays, trip units, motor controls and other serial devices to a 10/100 Ethernet network. This variant offers 2 Ethernet ports and can be powered by 24 V DC or by Power over Ethernet (IEEE 802.3af Class 3), simplifying installation in switchboards and control cabinets.

It provides one RS-232 and one RS-485 serial port on RJ-45, supports Modbus TCP/IP, Modbus serial, TCP/IP and FTP, and is managed over HTTP and SNMP. Its compact DIN-rail design and -25 to +70 °C operating range suit energy management, power distribution, building automation and factory automation. It is compatible with Schneider Electric software such as EcoStruxure Power Monitoring Expert and PowerSCADA Operations.

Features

- Reliable Modbus serial to Ethernet protocol conversion
- Dual power options: 24 V DC or Power over Ethernet
- Secure web interface with username and password login
- Modbus TCP/IP filtering sets Read-only or Full access for each master device
- Web pages for simple configuration and setup
- Compatible with EcoStruxure Power Monitoring Expert and PowerSCADA Operations
- Compact DIN-rail mounting for switchboards and control cabinets
- Suited to energy management, power distribution, building automation and factory automation

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- 2 x Ethernet ports: 1 x 10/100Base-TX RJ-45 (PoE-capable) and 1 x 100Base-TX RJ-45
- 1 x RS-232 (RJ-45) and 1 x RS-485 (RJ-45) serial ports
- Protocols: Modbus TCP/IP, Modbus serial, TCP/IP, FTP
- Management: HTTP and SNMP
- Power: 24 V DC (-20/+10%) or PoE (IEEE 802.3af Class 3), 15 W
- Typical consumption: 130 mA at 24 V DC, or 65 mA at 48 V DC PoE (at 20 °C)
- Mounting: DIN rail
- Dimensions (H x W x D): 72 x 105 x 71 mm
- Weight: 175 g without packaging
- Operating temperature: -25 to +70 °C
- Operating humidity: 5-95%
- Compliance: FCC Part 15, cULus, RCM, AS/NZS 60950-1, EN 61000-6-2, CISPR 11/22/24

FAQs

Q: What does the APC EGX150 Link150 gateway do?
A: It converts Modbus serial data to Modbus TCP/IP, allowing serial meters, protective relays, trip units and motor controls to be reached over a 10/100 Ethernet network.

Q: How is the EGX150 powered?
A: It runs from 24 V DC (-20/+10%) or from Power over Ethernet (IEEE 802.3af Class 3), with a maximum power of 15 W.

Q: What serial ports does it provide?
A: One RS-232 and one RS-485 port, both on RJ-45 connectors.

Q: How many Ethernet ports does it have and which supports PoE?
A: It has 2 Ethernet ports: a 10/100Base-TX RJ-45 port that is PoE-capable and a 100Base-TX RJ-45 port.

Q: How is the EGX150 mounted and what is its operating range?
A: It mounts on a DIN rail and operates from -25 to +70 °C at 5-95% humidity.

Q: Can I control which devices access the connected serial equipment?
A: Yes. Modbus TCP/IP filtering lets you set Read-only or Full access for each master device, and the web interface is protected by username and password login.
